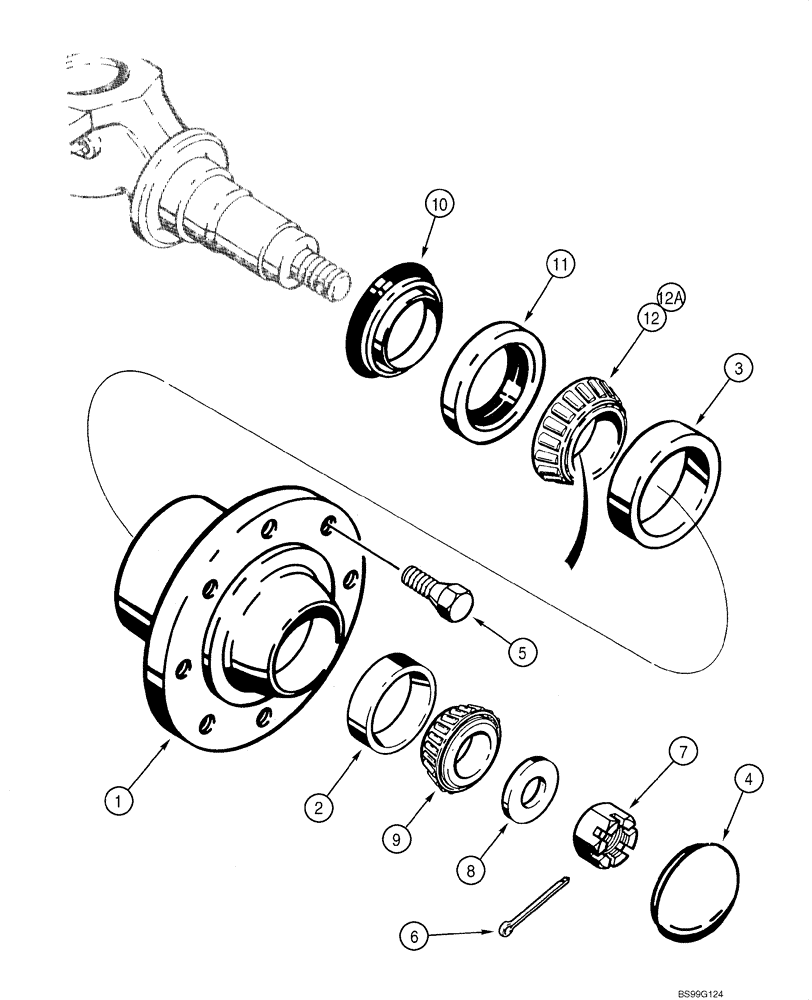

Запчасти Case 585G (05-07) - HUB AND BEARINGS, REAR WHEEL (05) - STEERING

Used With D138954 Two Wheel Drive Rear Axle

1шт.

If Used

1шт.

D75103

HUB

Rear Wheel, Order 1 - 3, Incl. 1 - 3, 11, 12

2шт.

1

A66759

HUB

1шт.

2

619387R1

BEARING CUP

3-1/16 OD, Outer

1шт.

3

625743C1

BEARING CUP,90mm OD x 18.5mm W

3-35/64 OD, Inner

1шт.

4

D143405

CAP

2шт.

5

A38208

WHEEL BOLT,5/8-18 UNF Class 2A

16шт.

6

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

7

425-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

1-1/8 NF

2шт.

8

D74949

WASHER,28.96mm ID x 60.45mm OD x 4.88mm Thk

2шт.

9

G15215

ROLLER BEARING

Outer

2шт.

352487A3

KIT DEPOT ASSEMBLING

Kit, Two Wheel Drive Axle, Incl. 1 - 4, 6 - 11, 12A

1шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

Spindle

2шт.

11

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

Hub

2шт.

12

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

2-1/16 in ID, Inner, 2.1651 Inch ID x .9045 Width, .059 Inch Radius, Used With D125340 and D125341 Spindles, See Figure 05-06

2шт.

12a

296824A1

TAPERED BEARING,55mm ID x 23mm W

Inner, 2.1653 Inch ID x .9055 Width, .137 Inch Radius, Used With 335130A1 and 335132A1 Spindles, See Figure 05-06

2шт.
