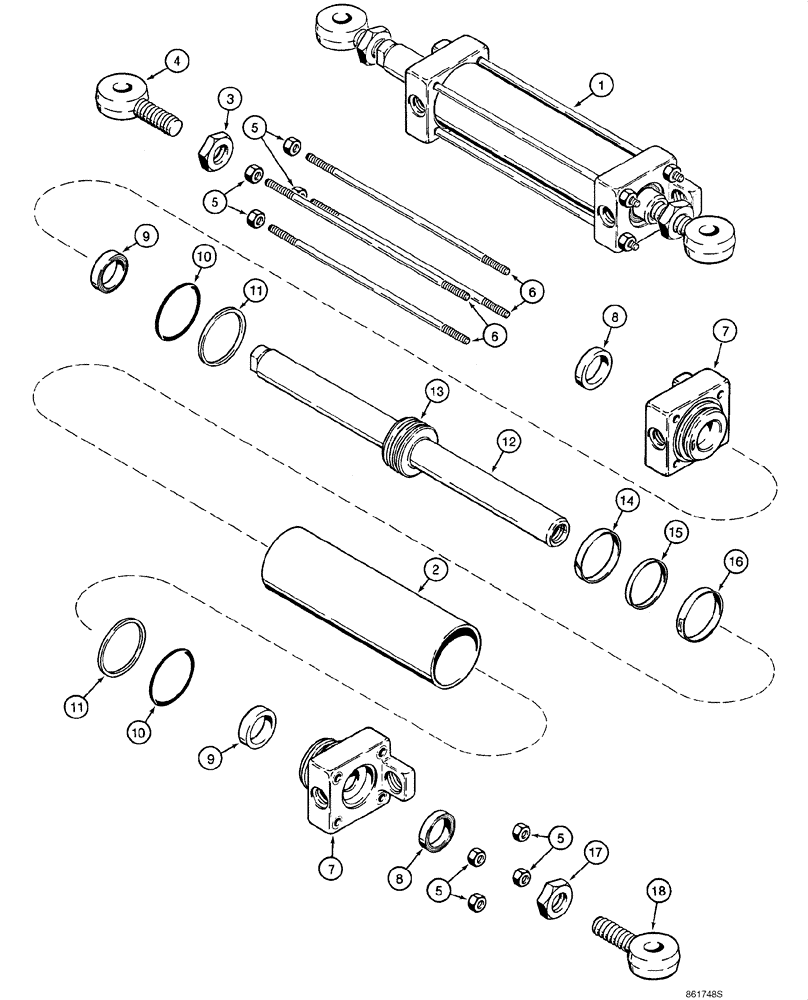

Запчасти Case 585G (05-05) - CYLINDER ASSY - STEERING (05) - STEERING

*

Used With D138954 Two Wheel Drive Rear Axle

1шт.

*

If Used

1шт.

1

G107720

CYLINDER,Double Acting, 38.1mm Rod, 85.1mm Stroke

70 ID x 170 strk, Incl. 2 - 18

1шт.

1

G107720R

REMAN-HYD CYLINDER

585G, 586G, 588G

1шт.

1

G107720C

CORE-HYD CYLINDER

Return Number

1шт.

2

G106808

TUBE,69.85 mm ID x 79.76 mm OD x 233.60 mm L

1шт.

3

129-369

JAM NUT,Jam, 7/8"-14, G5

LH thread

1шт.

4

G106832

BALL JOINT

Left Hand Threads

1шт.

5

425-106

NUT,3/8"-16, Cl 5

8шт.

6

G106817

TIE-ROD

TIE ROD 338 mm (13-5/16 in)

4шт.

7

G106810

CYLINDER END CAP,50.83mm Bore, 38.25mm Rod, 102mm W

1шт.

8

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

1шт.

9

G107921

SEAL,38.07mm ID x 50.93mm OD x 10.69mm Thk

1шт.

10

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

1шт.

11

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

1шт.

*

G107721

ROD ASSY.

38 mm (1-1/2 in) dia, Incl. 12, 13

1шт.

12

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

13

NSS

NOT SOLD SEPARAT

Piston, Cylinder

1шт.

14

G105187

RING

1шт.

15

G104439

RING

1шт.

16

G104454

SEALING RING,Locking, 65.89mm ID x 71.02mm OD x 6.96mm Thk

1шт.

17

425-1514

JAM NUT,Jam, 7/8"-14, G5

7/8 NF

1шт.

18

G106813

BALL JOINT

Right Hand Threads

1шт.

86991005

SEAL KIT

Seal, Incl. 8 - 11, 14 - 16 and (2) each of 446106A1 Bolt And D36505 Washer; See Note

1шт.
