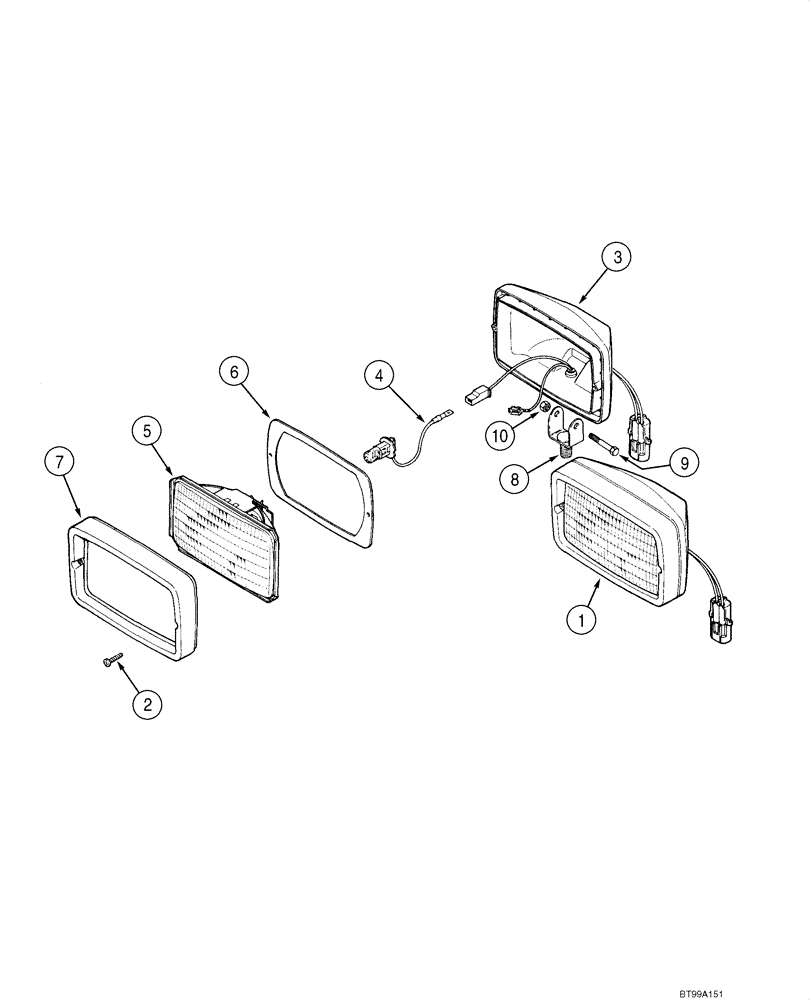

Запчасти Case 585G (04-11) - LAMP ASSY, FLOOD (04) - ELECTRICAL SYSTEMS

Flood

1шт.

1

275333A1

LAMP, WORK

LIGHT, WORK Right Hand Front, Left Hand Rear, Incl. 2 - 10, See Figure 09-27, If Used

2шт.

1

87447828

LIGHT ASSY.

Right Hand Front, Left Hand Rear, Component Parts Not Available, If Used

2шт.

1

275334A1

LAMP, WORK

LIGHT, WORK Left Hand Front, Right Hand Rear, Incl. 2 - 10, See Figure 09-27, If Used

2шт.

1

87443725

LIGHT ASSY.

Left Hand Front, Right Hand Rear, Component Parts Not Available, If Used

2шт.

2

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

2шт.

3

NSS

NOT SOLD SEPARAT

Base

1шт.

4

1312210C2

BULB,Halogen H3, 12V, 55W

12V, 55W

1шт.

5

1964807C1

LAMP BASE

Incl. 6

1шт.

6

NSS

NOT SOLD SEPARAT

Gasket, Mounting

1шт.

7

1964806C1

BEZEL

1шт.

8

NSS

NOT SOLD SEPARAT

Bracket

1шт.

9

NSS

NOT SOLD SEPARAT

Bolt

1шт.

10

NSS

NOT SOLD SEPARAT

Nut, Lock

1шт.
