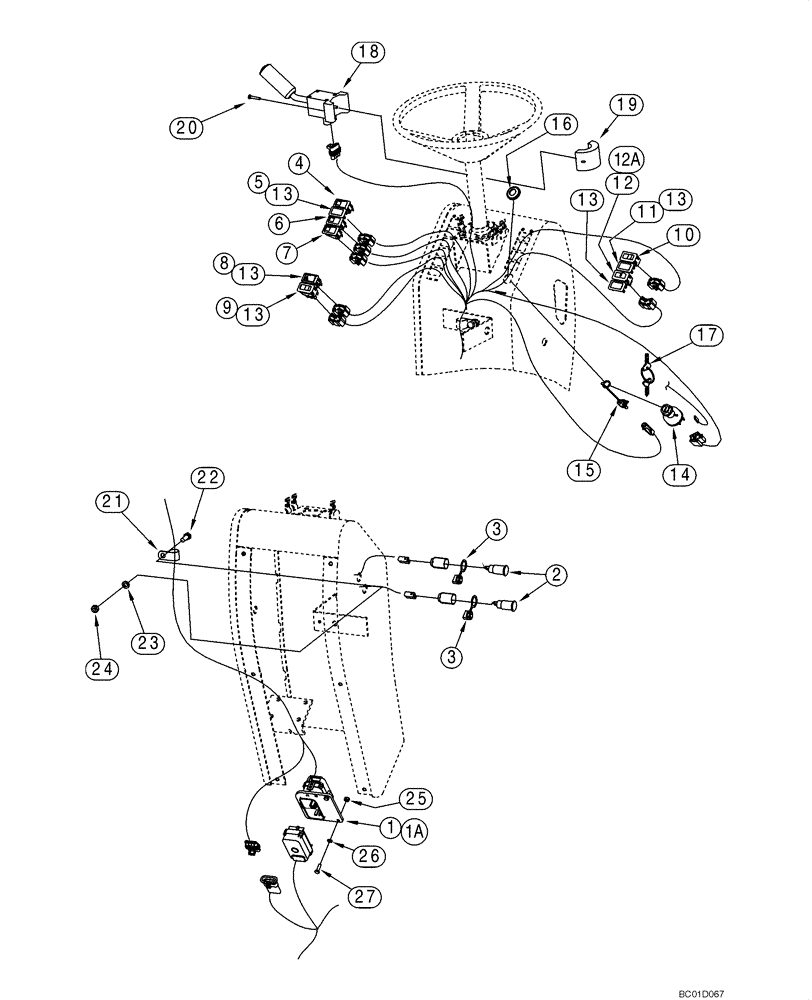

Запчасти Case 585G (04-08) - HARNESS - CONSOLE (04) - ELECTRICAL SYSTEMS

1

328892A2

HARNESS

Console, Used With 328974A2, REF 12

1шт.

1a

370134A1

HARNESS

Console, Used With 370132A1, REF 12

1шт.

2

283779A1

POWER SOCKET,12V

2шт.

3

283781A1

CAP,Polyester Elastomer

Plug

2шт.

4

122740A1

ROCKER SWITCH

Horn

1шт.

5

229364A1

SWITCH

Cold Start, Ether, If Equipped

1шт.

6

133715A1

LIGHT SWITCH

Rear Work Light

1шт.

7

133711A1

LIGHT SWITCH

Driving Light

1шт.

8

122736A1

FLASHER SWITCH

Flasher Lamp, Hazard

1шт.

9

131691A1

ROCKER SWITCH

Turn Signal

1шт.

10

283167A3

ROCKER SWITCH

Differential Lock

1шт.

11

133716A1

ROCKER SWITCH

4WD, If Equipped

1шт.

12

328974A2

SWITCH

Clutch Cutout Override, Used With 328892A2, REF 1

1шт.

12a

370132A1

SWITCH

Clutch Cutout Override, Used With 370134A1, REF 1A

1шт.

13

86000535

PLUG,1.427" x .62", Plastic

Switch Hole

1шт.

282775A1

IGNITION SWITCH

Incl. 14, 16, 17

1шт.

14

NSS

NOT SOLD SEPARAT

Switch, Key

1шт.

15

D137820

HARNESS

Ignition Switch To Ground

1шт.

16

NSS

NOT SOLD SEPARAT

Nut, Special, Key Switch Mounting

1шт.

17

1964831C2

IGNITION KEY

Padded

1шт.

18

278328A1

SWITCH

Shuttle Shift, Forward / Neutral / Reverse Switch

1шт.

19

236521A1

HALF-COLLAR

HALF COLLAR Shuttle Lever, Incl. Clamp And (2) Nuts

1шт.

20

397990A1

SCREW,Phillips Drive, Pan HD, M5 x 0.8 x 35mm

M5 x 35; Replaces 368238A1 M5 x 30 Screw Used On Some Models, Also Replaces 558-100, Use With Loctite 242

2шт.

345-49

SEALANT

Loctite, 1 ml

1шт.

21

515-24222

CLAMP,7/8", Insul, 7/16" Bolt

1шт.

22

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

23

892-11010

LOCK WASHER,M10

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

25

832-10406

NUT,M6 x 1, Cl 8

2шт.

26

892-11006

LOCK WASHER,M6

2шт.

27

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.
