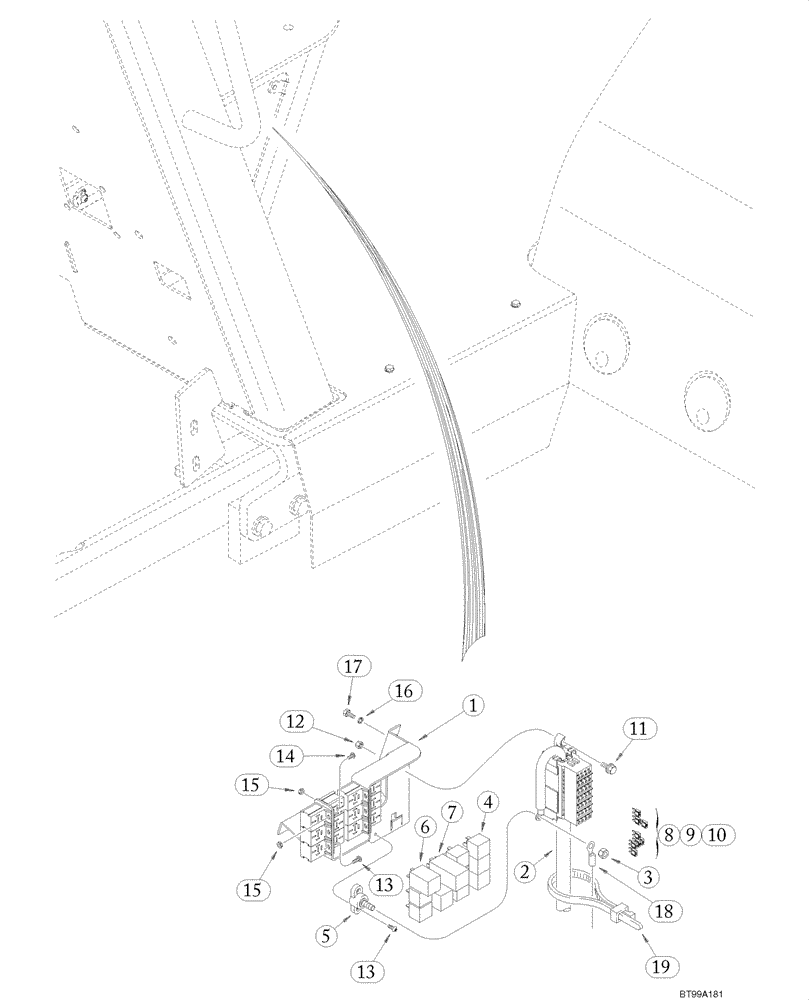

Запчасти Case 585G (04-06) - FUSE AND FUSE BLOCK - RELAY PANEL (04) - ELECTRICAL SYSTEMS

1

338704A2

BRACKET

Mounting, Relay And Fuse, Replaces 338704A1

1шт.

2

328854A5

HARNESS

Main Chassis; With 12 Relay Sockets; If Used

1шт.

2

370133A1

HARNESS

Main Chassis; With Packard Connectors At Transmission Control Valve Solenoid; With 13 Relay Sockets; See Figure 04-02

1шт.

2

87580196

WIRE HARNESS

Main Chassis; (9) L71879 Diodes; W/Deutsch Connectors At Trans. Control Valve Solenoids; Replaces 87456951 (8) Diode Harness; Also Replaces 87517046 (9) Diode Harness.

1шт.

87456955

WIRE HARNESS

Kit; Chassis Harness W/ Jumpers; Incl. 87580196 Chassis Harness; 87450931 4WD Jumper (Packard/Deutsch), Attaches to 4WD Wire on Chassis Harness; 87456948 Fwd/Rev Jumper (1 Packard/2 Deutsch), Attaches to Trans. Control Valve Solenoid Wire on Chassis Harne

1шт.

3

425-106

NUT,3/8"-16, Cl 5

1шт.

4

D128310

RELAY

30 amp; Used With 328854A5 or 370133A1 Harness; If Used

10шт.

4

314451A1

RELAY

12V, 40 amp; 370133A1 Harness; If Used

11шт.

4

87436836

RELAY,12V, 40 Amp

Mini; 12V, 40 amp; Used With 87456951, 87517046, or 87580196 Harness

11шт.

5

184277A1

CONNECTION

1шт.

6

347706A3

RELAY,12V, 5A

Sealed Time Delay, Replaces 278665A4

1шт.

7

87578455

RELAY,12V, Turn Signal and Hazard

Flasher, Turn Signal And Hazard; Replaces D147166

1шт.

8

121412A1

FUSE,10A, Mini, Red

4шт.

9

121413A1

FUSE,15A, Mini, Blue

2шт.

10

121416A1

FUSE,30A, Mini, Green

2шт.

11

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

12

832-10406

NUT,M6 x 1, Cl 8

1шт.

13

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

6шт.

14

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

No. 10 x 3/8

1шт.

15

193-1000

NUT,Keps, w/LW,#10-32

No. 10 NF

7шт.

16

892-11008

LOCK WASHER,8mm ID

3шт.

17

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

18

184188A1

HARNESS

Power, From Starter

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.
