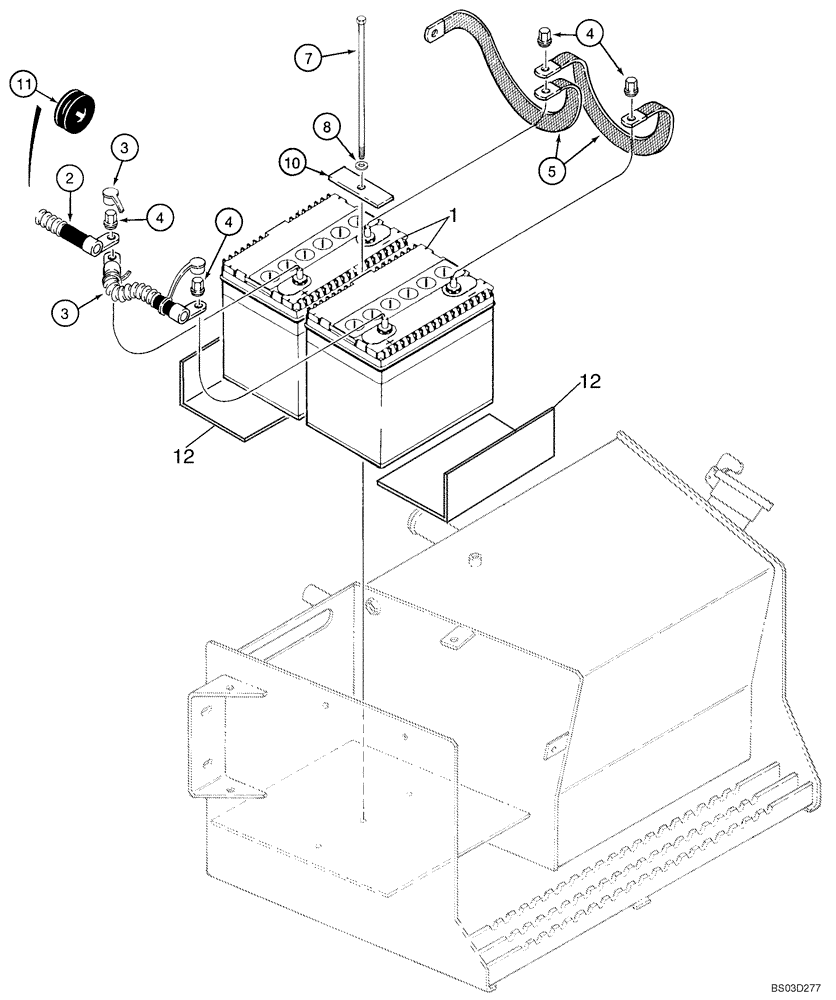

Запчасти Case 585G (04-05) - BATTERY, DUAL - CABLES (04) - ELECTRICAL SYSTEMS

1

D128393

WET BATTERY

12 V, Models With Cold Start; See Figure 09-22 For Battery Box

2шт.

2

184498A1

CABLE

1460 mm, Positive

1шт.

3

184497A1

CABLE

227 mm, Positive Jumper

1шт.

4

D126409

NUT,Hex, M14, 20mm OD, 3/8" - 16

3/8, Battery Terminal

4шт.

5

D73383

STRAP

2шт.

7

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

M10 x 245 mm

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(13/32 x 13/16 x 1/16")

1шт.

10

250854A1

STRAP

1шт.

11

257279A1

GROMMET

Mounts In Chassis Side Channel

2шт.

12

408535A1

PLATE

Battery; Support

2шт.
