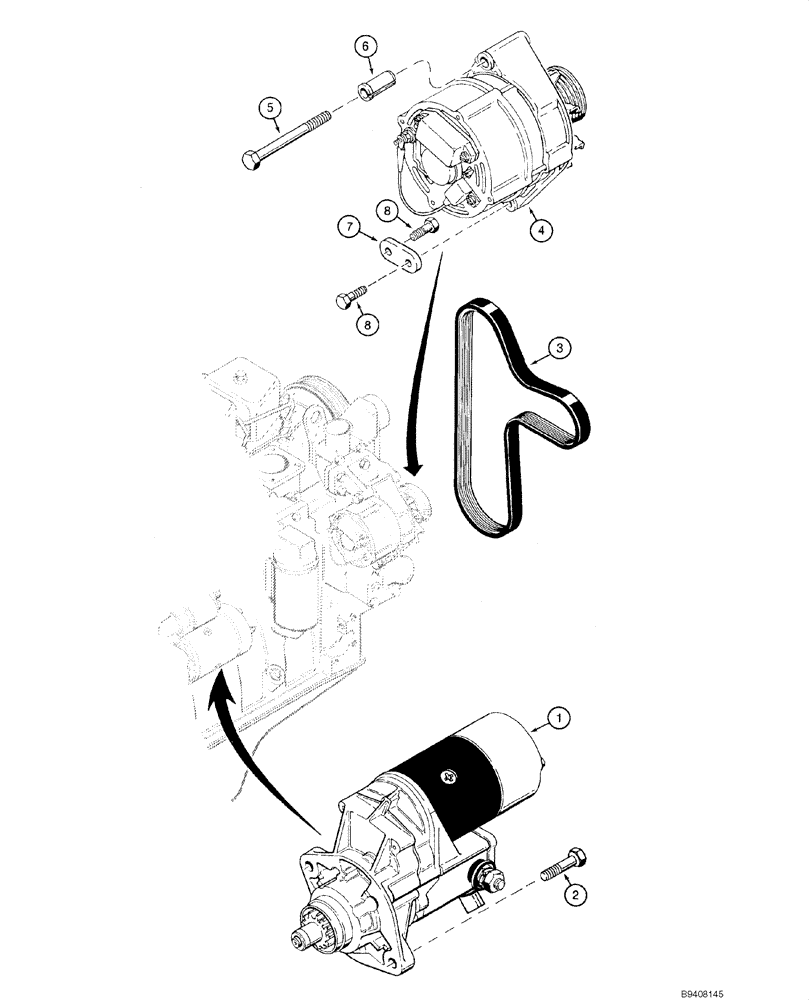

Запчасти Case 585G (04-03) - MOUNTING - STARTER AND ALTERNATOR (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

See Figure 04-02, No Longer Available, Order 86982709

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 1987559C1

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

86982709

STARTER MOTOR,12V, 2.5kW

See Figure 04-02A

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Reman for New PN 86982709

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

1

87350916

REMAN-STARTER

Remanufactured, 86982709 Starter, Parts On This Page Do Not Apply to Remanufactured Assy

1шт.

1

87350918

CORE-STARTER

Return Part Number, 86982709 Starter, Core, Use This Part Number To Return Core For Credit When Using A Remanufactured Assy

1шт.

2

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

2a

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

Not Illustrated; Ground Strap

2шт.

3

86982450

V-BELT

Alternator And Fan

1шт.

4

A187873

ALTERNATOR,12V, 65A

12V, 65 amp, See Figure 04-01

1шт.

4

A187873GV

ALTERNATOR

Value, 12V, 65A

1шт.

5

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

1шт.

6

J902469

SPACER

1шт.

7

J903089

SUPPORT

1шт.

8

120104

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.
