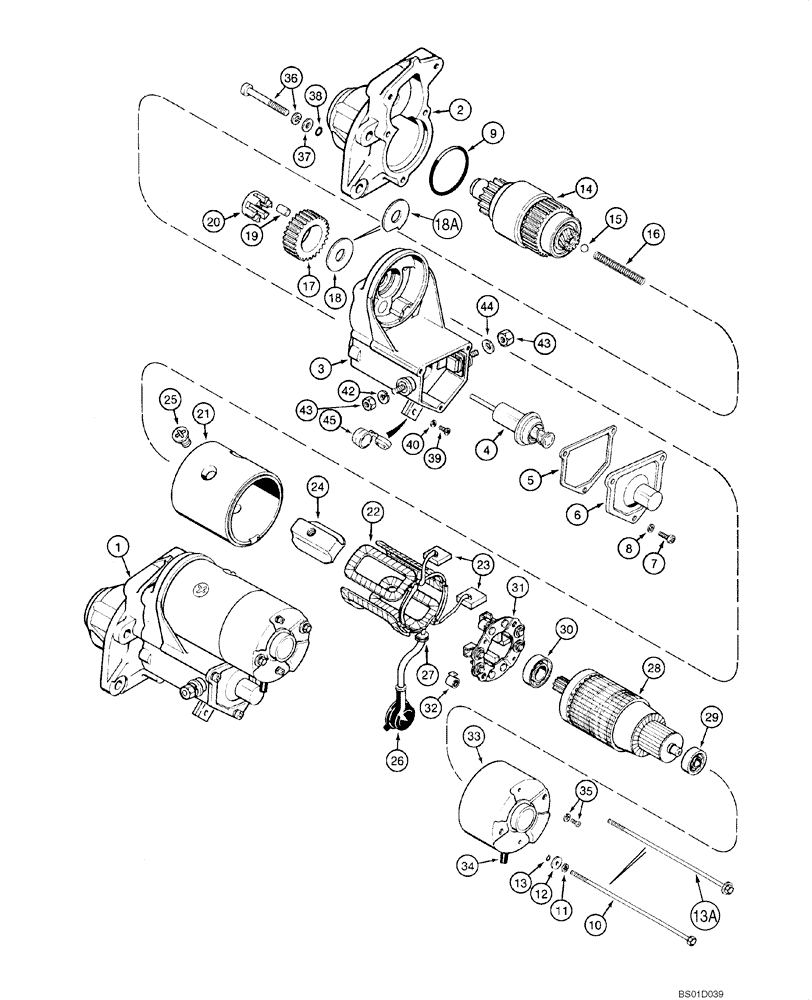

Запчасти Case 585G (04-02) - STARTER (04) - ELECTRICAL SYSTEMS

1

1987559C1

STARTING MOTOR

Incl. 1 - 45, If Used, No Longer Available, Order 86982709, Figure 04-02A

1шт.

1

86982709R

REMAN-STARTER,12V, 2.5kW

Remanufactured, Starter

1шт.

1

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number

1шт.

1

104452A2R

REMAN-STARTER

Remanufactured Starter 12 volt, 2.5KW

1шт.

1

104452A1C

CORE-STARTER

Return Part Number, Starter 12 volt, 2.5KW

1шт.

2

A46948

HOUSING

Drive End

1шт.

3

104588A1

SOLENOID

Magnetic, Incl. 4 - 8

1шт.

4

NSS

NOT SOLD SEPARAT

Solenoid

1шт.

5

NSS

NOT SOLD SEPARAT

Gasket, Cover

1шт.

6

NSS

NOT SOLD SEPARAT

Cover

1шт.

7

NSS

NOT SOLD SEPARAT

Screw

3шт.

8

NSS

NOT SOLD SEPARAT

Washer

3шт.

9

1546500C1

SEAL,2.4mm Thk x 47.2mm ID

1шт.

A47243

BOLT

Incl. 10 - 13, No Longer Used, Order 332467A1

2шт.

10

A47128

BOLT

1шт.

11

892-11006

LOCK WASHER,M6

1шт.

12

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

13

A47127

O-RING

1шт.

13a

332467A1

BOLT

M6 x 181

2шт.

14

104587A1

CLUTCH

Drive

1шт.

15

211-1011

BALL,11/32" Dia

3/4; 24,CRS

1шт.

16

A47232

SPRING

2-13/16

1шт.

17

A47233

GEAR

Idler

1шт.

18

A47234

WASHER

No Longer Used, Order 141360A1

1шт.

18a

141360A1

WASHER

1шт.

19

A47235

ROLLER BEARING

5шт.

20

A47236

RETAINER

1шт.

A47240

HOUSING

Incl. 21 - 26

1шт.

21

NSS

NOT SOLD SEPARAT

Housing

1шт.

22

NSS

NOT SOLD SEPARAT

Coil

1шт.

23

NSS

NOT SOLD SEPARAT

Brush

2шт.

24

NSS

NOT SOLD SEPARAT

Shoe

4шт.

25

NSS

NOT SOLD SEPARAT

Screw

4шт.

26

NSS

NOT SOLD SEPARAT

Boot, Magnetic Switch Terminal

1шт.

27

A47241

PLATE

No Longer Used

1шт.

28

332446A1

ARMATURE

Incl. 29, 30; Replaces A47242

1шт.

29

452698C1

BALL BEARING,10mm ID x 30mm OD x 9mm W

1шт.

30

A47247

BALL BEARING,17mm ID x 35mm OD x 10mm W

Drive End

1шт.

31

A47239

HOLDER

Brush, Incl. (2) Brushes, Incl. 32

1шт.

32

A47249

SPRING

4шт.

33

A47237

FRAME

Commutator End, No Longer Available, Order 401106A1

1шт.

34

141355A1

COVER

Replaces A47238

1шт.

35

141361A1

CAPTIVE WASHER SCREW,M5 x 9.40mm

Incl. Washer, Replaces A47244

2шт.

A47230

BOLT

Incl. 36 - 38

3шт.

36

332475A1

BOLT

Incl. Washer

1шт.

37

495-81252

WASHER,#12

(Flat, 1/4" x 9/16" x 1/16")

1шт.

38

332476A1

O-RING

1шт.

39

401126A1

SCREW,M5 x 8mm, W/ LW

1шт.

40

892-11005

LOCK WASHER,M5

1шт.

42

892-11010

LOCK WASHER,M10

1шт.

43

825-1410

NUT,M10, Cl 8

2шт.

44

A10454

WAVE WASHER

If Used

1шт.

45

141354A1

RING

1шт.
