Запчасти Case 585G (03-05) - FUEL INJECTION - PUMP AND DRIVE, 4-390 EMISSION CERTIFIED ENGINE (03) - FUEL SYSTEM

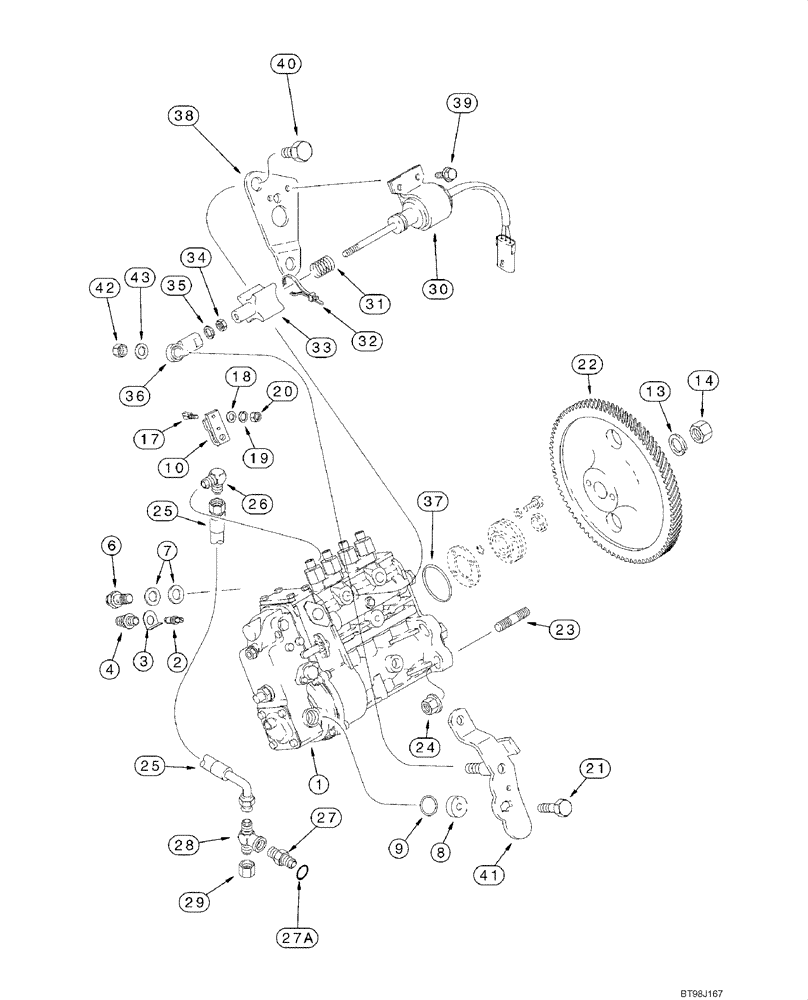

Схема запчастей Case 585G - (03-05) - FUEL INJECTION - PUMP AND DRIVE, 4-390 EMISSION CERTIFIED ENGINE (03) - FUEL SYSTEM
27a
42
26
24
25
40
29
3
37
14
35
39
8
25
38
20
2
9
6
30
13
43
23
36
41
4
22
21
10
31
34
19
18
7
28
1
33
32
27
17

Артикул

Название

Примечание

Количество

.

4-390 Emissions Certified Engine

1шт.

1

J990615

PUMP, FUEL INJECTION

PUMP, INJECTION Incl. 2 - 21; Replaces J930143

1шт.

1

JR990615

REMAN-INJECTION PUMP

Remanufactured Pump Assy, Replaces JR930143

1шт.

1

JC990615

CORE-INJECTION PUMP

Return Part Number, Replaces JC930143

1шт.

2

A77720

PIN

1шт.

3

J928981

LOCK WASHER

1шт.

4

J912888

PLUG

1шт.

6

87409051

VALVE

Replaces J932096

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

2шт.

8

691292C1

RETAINER

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

1шт.

10

87438537

LEVER

Replaces 1808728C1

1шт.

13

A77775

LOCK WASHER

1шт.

14

A41852

LOCK NUT

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

1шт.

20

829-1306

NUT,M6, Cl 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

1шт.

22

J934636

PINION

1шт.

23

86991263

STUD,M10 x 1.5 x 55

Replaces J915036

4шт.

24

9804278

FLANGE NUT,M10 x 1.5, Cl 8

Replaces 825-2410

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

1шт.

26

A77512

ELBOW

Male

1шт.

27

J932321

UNION

Incl. 27A

1шт.

27a

637-62081

O-RING,1.6mm Thk x 8.1mm ID, Cl 6, 90 Duro

1шт.

28

J924346

TEE

1/8 PT x 7/16

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

1шт.

30

J932529

SOLENOID

12V; 1-3/4 in; Incl. 31 - 36; If Used

1шт.

30

J991167

SOLENOID

12V; 2 in; Incl. 31 - 36; If Used

1шт.

30

87420952R

REMAN-SOLENOID

585G, 586G, 588G, Reman for New P/N J991167

1шт.

30

87420952C

CORE-SOLENOID

Return Part Number

1шт.

30

87420952

SOLENOID VALVE

12V, Incl. 31 - 36, Replaces J932529

1шт.

30

87420952R

REMAN-SOLENOID

585G, 586G, 588G

1шт.

30

87420952C

CORE-SOLENOID

Return Part Number

1шт.

31

311100A1

SPRING

1шт.

32

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

1шт.

33

J925171

BOOT

1шт.

34

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

35

492-11025

LOCK WASHER,1/4"

1шт.

36

311099A1

JOINT

Used With J932529

1шт.

36

87420849

END,1/4" - 28

Used With J991167, 87420952

1шт.

37

J935032

SEAL

1шт.

38

J930590

SUPPORT

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

2шт.

40

J991132

SCREW,Hex, M16 x 1.5 x 16mm, Gr 8.8

M16 x 16; Used With J991167, 87420952

2шт.

J802998

PACKAGE,SERVICE

Incl. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

Lever

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

1шт.

43

J934022

WASHER

1шт.

Выбрано товаров: 51
