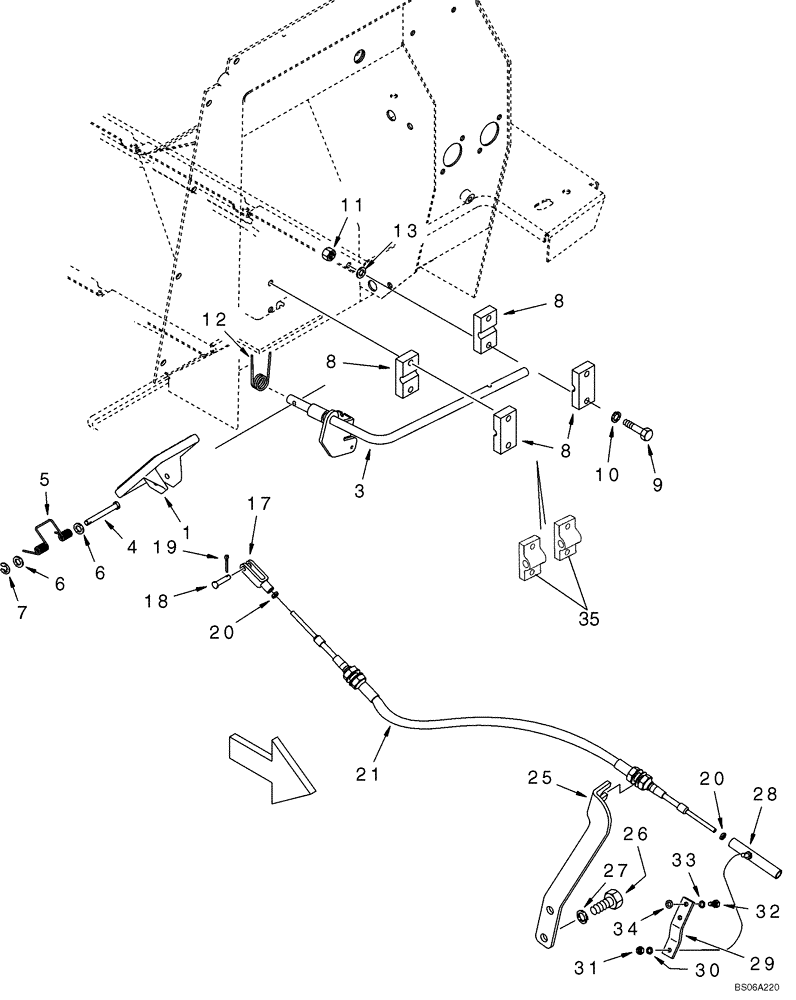

Запчасти Case 585G (03-02) - CONTROLS - THROTTLE (03) - FUEL SYSTEM

1

282242A1

PEDAL

1шт.

3

339886A1

LEVER ASSY.

Throttle

1шт.

4

322860A1

PIN,7.9mm OD x 55.6mm L

1шт.

5

256776A1

SPRING

1шт.

6

895-11005

WASHER,5.5mm ID x 10mm OD x 1mm Thk

2шт.

7

103-1518

SNAP RING,#18, Ext

1шт.

8

D124857

CLAMP

Cross Shaft; If Used

4шт.

9

604-8050

BOLT,Hex, M8 x 50mm, Cl 8.8

M8 x 50; Replaces 814-8050; Used With Ref 8 Blocks

4шт.

9

87378776

BOLT,Hex, M8 x 30mm, Cl 8.8

Special; M8 x 30; Used With Ref 35 Blocks

4шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

Replaces 892-11008

4шт.

11

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

12

123558A1

SPRING

1шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

17

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

18

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

19

432-48

COTTER PIN,1/16" x 1/2"

1шт.

20

225-14210

NUT,#10-32

2шт.

21

332200A1

CABLE

Throttle

1шт.

25

275455A1

SUPPORT

1шт.

26

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

2шт.

27

892-11012

LOCK WASHER,M12

2шт.

28

278183A1

BALL JOINT

1шт.

29

275457A1

LEVER

1шт.

30

492-11025

LOCK WASHER,1/4"

1шт.

31

425-154

JAM NUT,Jam, 1/4"-28, G5

1шт.

32

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

33

892-11006

LOCK WASHER,M6

2шт.

34

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

35

87345006

BLOCK

Throttle Pivot Block; If Used

2шт.
