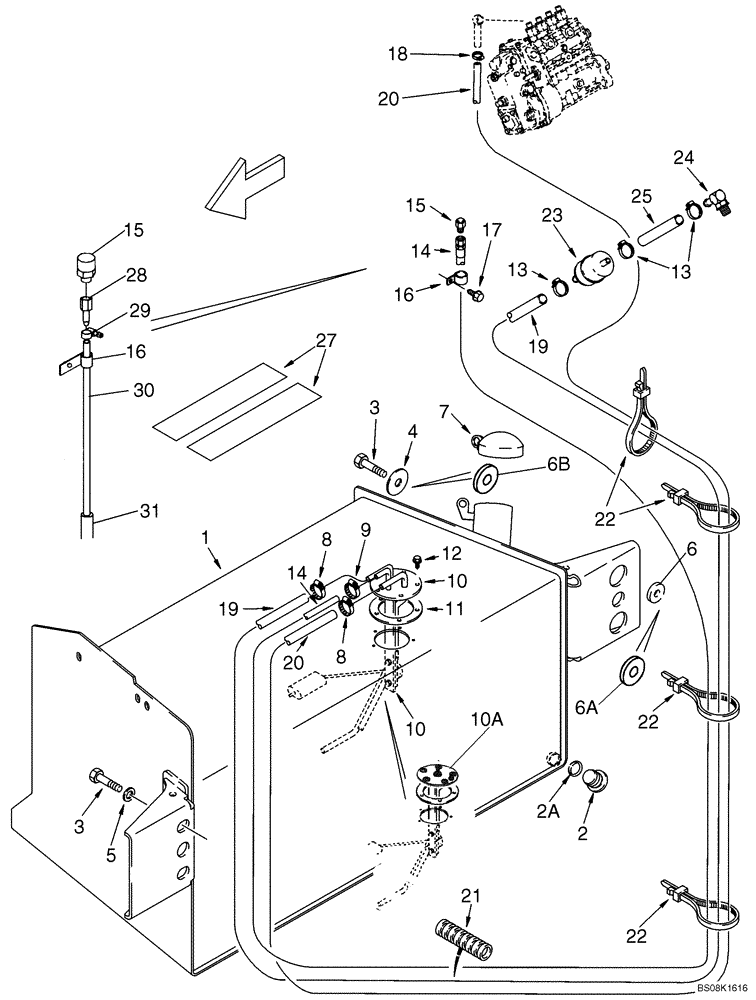

Запчасти Case 585G (03-01) - FUEL TANK AND LINES (03) - FUEL SYSTEM

1

87429259

TANK

Fuel, 31 gal, Incl. Right Hand Steps, Incl. 2, Replaces 284041A3, 360629A6, 87400383

1шт.

2

86625138

PLUG,7/18" - 14

Includes Ref. 2A

1шт.

2a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60; Incl. Loctite; Replaces 627-20060, Without Loctite

4шт.

4

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

5

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

6

409472A1

SPACER

21 ID x 55.5 OD x 8.25 mm thk, With 40 mm dia x 6.6 mm thk Raised Surface; If Used

2шт.

6a

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

SPACER 22 ID x 57 OD x 8.25 mm thk, Flat; Used With Ref 6B; If Used

2шт.

6b

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk, Used W/Ref 6A; If Used

2шт.

7

87335469

LOCKABLE FUEL CAP,Male, Lockable

Replaces 130049A1 Fuel Cap Used On Some Models

1шт.

8

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

2шт.

9

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

10

284431A1

SENDER UNIT

SENDER Fuel Level, Fits 60mm Dia Hole, Used on Fuel Tanks Without Welded Supply, Return, and Vent Pipes

1шт.

10a

87408481

SENDER UNIT

Fuel Level, Fits 40mm Dia Hole, Used on Fuel Tanks With Welded Supply, Return, and Vent Pipes

1шт.

11

188311A2

GASKET,2.38mm Thk

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

No. 10 NF x 5/8

4шт.

13

196252A1

CLAMP

3шт.

14

234892A1

HOSE

HOSE,LARGE 1/4 ID x 1100 mm (43-5/16 in), 1/4 NPTF Fem End x Cut Hose End; Vent; If Used

1шт.

15

130047A1

BREATHER ASSY.

Fuel

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

121856A1

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

1шт.

18

1348264C1

HOSE CLAMP

3/8 ID

1шт.

19

234888A1

FUEL HOSE,12.70 mm ID x 1280.00 mm , SAE 30R7

Fuel Supply

1шт.

20

284452A2

FUEL HOSE,9.53 mm ID x 1900.00 mm, SAE 30R7

Fuel Return

1шт.

21

130048A1

PROTECTOR

203 mm (8 in); If Used

1шт.

21

399004A1

HOSE PROTECTION,38.90 mm ID x 270.00 mm

If Used

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

23

194199A1

FUEL FILTER

Fuel, In-Line

1шт.

24

410847A1

FITTING

1/2 stem x 1/4 PT

1шт.

25

393827A1

FUEL HOSE,12.70 mm ID x 152.00 mm, SAE 30R7

Replaces 393827A1

1шт.

27

D80270

ANTI-SKID STRIP,635mm / 25 Inch

Non-Slip, 635 mm (25 in) x 51 mm (2 in)

2шт.

28

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

Stem, 1/4 ID x Fem 1/4 NPTF, Brass; If Used

1шт.

29

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

If Used

1шт.

30

87362937

HOSE,6.35mm ID x 1080mm L, SAE 30R6

1/4 ID x 1080 mm; Cut Hose Both Ends; Fuel Vent; If Used

1шт.

31

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

Hose Sleeve; If Used

1шт.
