Запчасти Case 585G (02-21) - GASKET KIT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

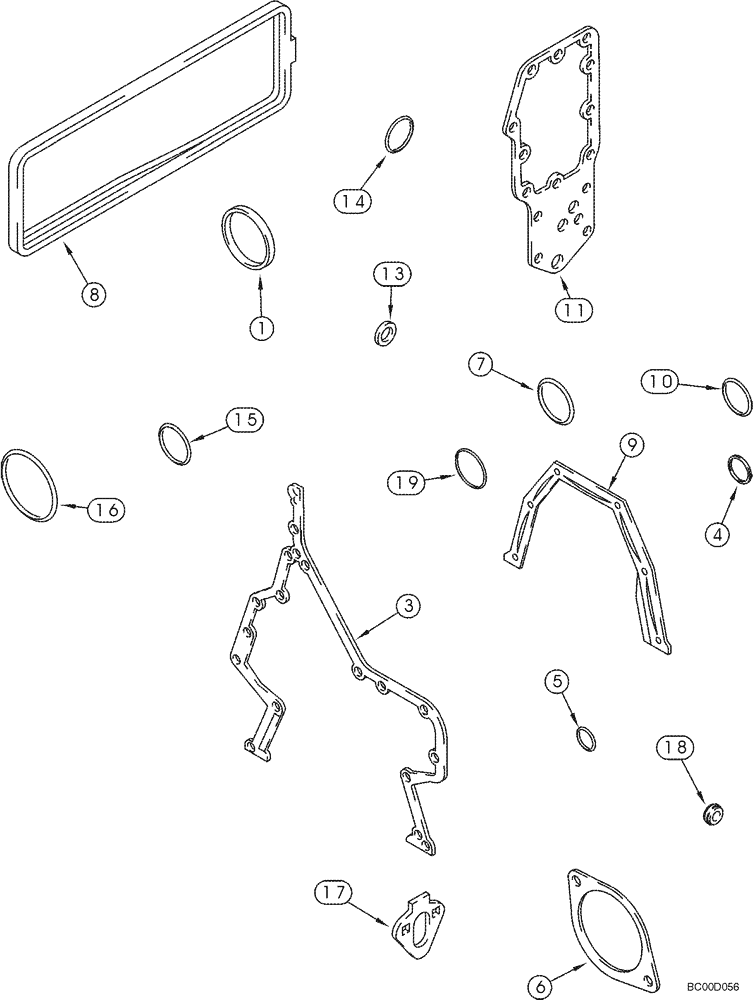

Схема запчастей Case 585G - (02-21) - GASKET KIT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
4
11
5
7
13
8
10
14
6
17
3
9
16
18
1
19
15

Артикул

Название

Примечание

Количество

4-390 Emissions Certified Engine

1шт.

Cylinder Block

1шт.

A78036

ENGINE GASKET KIT

Incl. 1 - 19, Replaces A77864, A77965

1шт.

1

J903475

SEALING RING,72.39mm ID x 90.39mm OD x 9mm Thk

See Figure 02-09, REF 20

1шт.

3

J938156

GASKET,0.79mm Thk

See Figure 02-09, REF 5

1шт.

4

J915772

SEAL,Square, 1.68mm Thk x 29.87mm ID, -25

SEALRING See Figure 02-09, REF 11

1шт.

5

J913994

O-RING

See Figure 02-09, REF 14

1шт.

6

J938655

GASKET,1.27mm Thk

See Figure 02-09, REF 16, Replaces J929751

1шт.

7

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16, See Figure 02-08, REF 3

1шт.

8

J283767

GASKET,7.4mm Thk

See Figure 02-16, REF 24

1шт.

9

J938159

GASKET

See Figure 02-17, REF 10

1шт.

10

J906697

SEAL,Square, 5.16mm Thk x 50.17mm ID

50 mm ID, See Figure 02-16, REF 32

1шт.

11

J942914

GASKET

See Figure 02-11, REF 13

1шт.

13

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

See Figure 02-12, REF 12

1шт.

14

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

38 mm ID, See Figure 02-16, REF 28

1шт.

15

J929457

O-RING

23/32 ID x 7/64, See Figure 02-11, REF 6

1шт.

16

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

SEALRING See Figure 02-18, REF 5

1шт.

17

J939258

GASKET,1.21mm Thk

See Figure 03-04, REF 4, Replaces J931059

1шт.

18

J928759

SEALING WASHER

See Figure 02-16, REF 20

4шт.

19

J935032

SEAL

See Figure 03-05, REF 37

1шт.

20

87413428

GASKET,1.2mm Thk

Mounting; See Figure 03-06; Replaces J931607, Not Illustrated

1шт.

Выбрано товаров: 21
