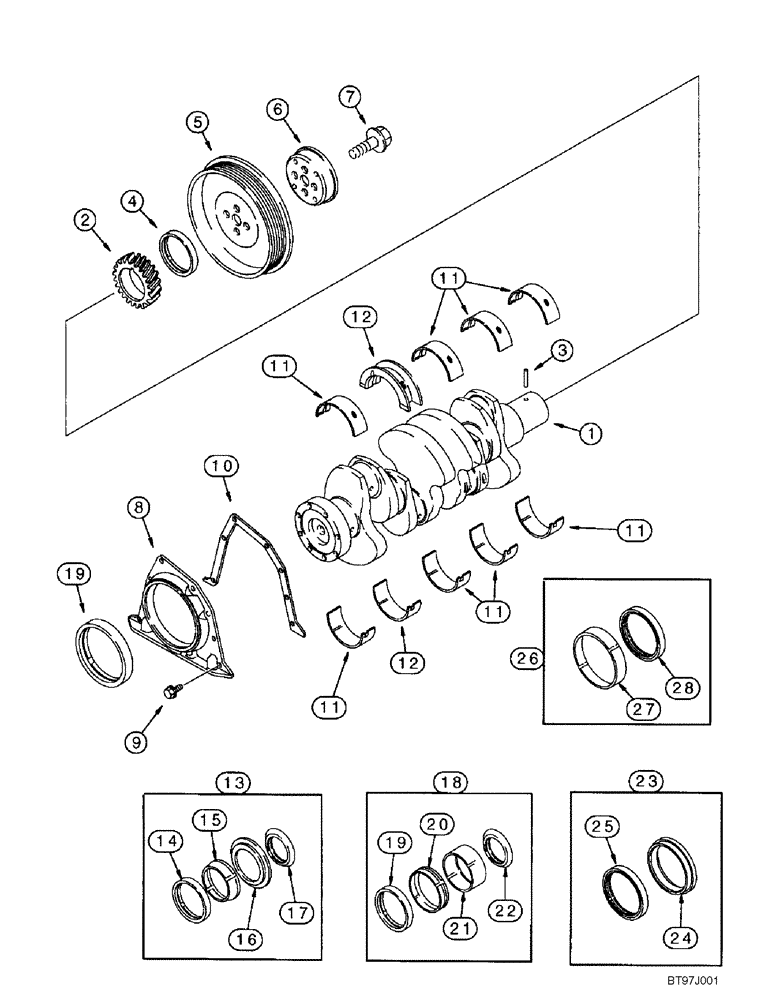

Запчасти Case 585G (02-17) - CRANKSHAFT, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

4-390 Emissions Certified Engine

1шт.

1

JR908031

CRANKCASE

Remanufactured, North America Only

1шт.

1

J929036R

REMAN-CRANKSHAFT

585G, 586G, 588G ALL EMISSIONS, Reman for New P/N JR908031

1шт.

1

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

1

JC908031

CORE-CRANKSHAFT

1шт.

1

J908031

CRANKSHAFT

Incl. 2, 3

1шт.

1

J929036R

REMAN-CRANKSHAFT

585G, 586G, 588G ALL EMISSIONS, Reman for New P/N J908031

1шт.

1

J929036C

CORE-CRANKSHAFT

Return Number

1шт.

2

J929027

PINION

1шт.

3

J904483

PIN,6.01mm OD x 8mm L

1шт.

4

NSS

NOT SOLD SEPARAT

Seal, Order A77889

1шт.

5

J914494

PULLEY,181.25mm OD

1шт.

6

J905820

ADAPTER

1шт.

7

J903857

BOLT,Hex, M12 x 1.25 x 36mm

M12 x 36

4шт.

8

J936904

REAR COVER

Replaces J921043

1шт.

9

87409160

SCREW,Hex, M6 x 1 x 16mm, Cl 10.9

M6 x 16, 10.9, Replace 845-6015

6шт.

10

J938159

GASKET

Replaces J928493

1шт.

11

J804940

BEARING SET

Standard

4шт.

11

A77472

BEARING SET

0,25 mm, Undersize 0,25 mm

4шт.

11

A77474

BEARING SET

0,50 mm, Undersize 0,50 mm

4шт.

11

A77476

BEARING SET

0,75 mm, Undersize 0,75 mm

4шт.

11

A77478

BEARING SET

1,0 mm, Undersize 1,00 mm

4шт.

12

A77895

THRUST BEARING,KIT

Standard

1шт.

12

A77473

THRUST BEARING

0,25 mm, Undersize 0,25 mm

1шт.

12

A77475

THRUST BEARING

0,50 mm, Undersize 0,50 mm

1шт.

12

A77477

THRUST BEARING

0,75 mm, Undersize 0,75 mm

1шт.

12

A77479

THRUST BEARING

1,0 mm, Undersize 1,00 mm

1шт.

12

A77841

THRUST BEARING

0,50 mm, Undersize 0,50 mm, Oversize 0,50 mm

1шт.

12

A77840

THRUST BEARING

1,0 mm, Undersize 1,00 mm, Oversize 1,00 mm

1шт.

13

A77889

SEAL PACKAGE

Crankshaft, Front, Incl. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

Seal

1шт.

15

NSS

NOT SOLD SEPARAT

Tool

1шт.

16

NSS

NOT SOLD SEPARAT

Tool

1шт.

17

NSS

NOT SOLD SEPARAT

Shield

1шт.

18

A77890

SEAL PACKAGE

Crankshaft, Front, Incl. 19 - 22

1шт.

19

NSS

NOT SOLD SEPARAT

Seal

1шт.

20

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

21

NSS

NOT SOLD SEPARAT

Tool

1шт.

22

NSS

NOT SOLD SEPARAT

Shield

1шт.

23

87339552

SEAL KIT

Crankshaft, Rear, Incl. 24, 24A, 25, Replaces J934486

1шт.

24

NSS

NOT SOLD SEPARAT

Tool

1шт.

24a

NSS

NOT SOLD SEPARAT

Tool, Not Illustrated

1шт.

25

J933262

OIL SEAL,130mm ID x 150.44mm OD x 14.73mm Thk

1шт.

26

A77810

SERVICE KIT

Crankshaft, Rear, Incl. 27, 28

1шт.

27

NSS

NOT SOLD SEPARAT

Sleeve

1шт.

28

NSS

NOT SOLD SEPARAT

Seal

1шт.
