Запчасти Case 585G (02-12) - OIL PUMP, PAN - HEATER, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

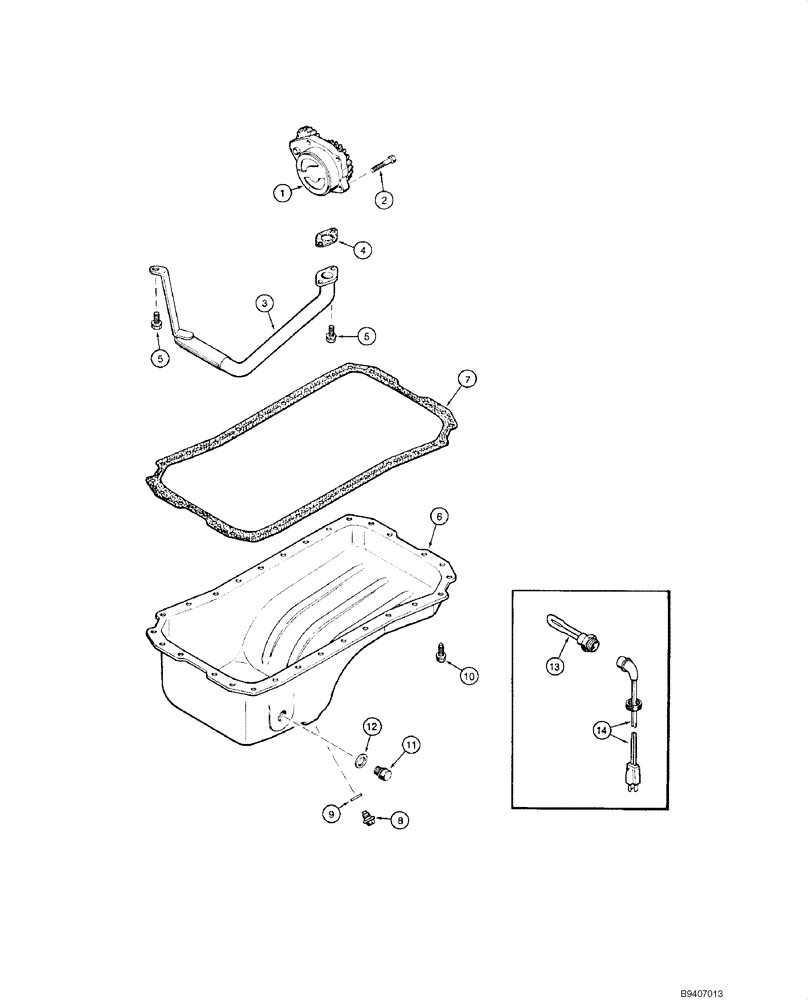

Схема запчастей Case 585G - (02-12) - OIL PUMP, PAN - HEATER, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
13
7
8
2
9
5
11
5
10
1
3
12
14
6
4

Артикул

Название

Примечание

Количество

4-390 Emissions Certified Engine

1шт.

1

CASJ937028

PUMP, ENGINE OIL

Replaces J932449

1шт.

JR937028

REMAN-ENG OIL PUMP

585G, 586G, 588G

1шт.

JC937028

CORE-ENGINE OIL PUMP

Return Number

1шт.

2

J900677

BOLT,Hex

M8 x 30

4шт.

3

J905206

TUBE,1" OD

1шт.

4

J938157

GASKET,1.2mm Thk

Replaces J931349

1шт.

5

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

3шт.

6

J901049

PAN, ENGINE OIL

PAN, OIL

1шт.

7

NSS

NOT SOLD SEPARAT

Gasket, Pan, Order A77673

1шт.

8

J924147

PLUG,M18 x 1.5

M18

1шт.

9

J920773

SEALING WASHER

1шт.

10

J920400

FLANGE BOLT,Hex, M8 x 1.25 x 21mm, Gr 8.8

M8 x 25

28шт.

11

J924148

PLUG,M22 x 1.5

M22

1шт.

12

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

1шт.

A77673

GASKET KIT

Incl. 4, 7, 9

1шт.

Engine Oil Heater

1шт.

A77490

KIT

120V, Heater, Incl. 13, 14, Also Order J902425

1шт.

13

NSS

NOT SOLD SEPARAT

Element

1шт.

14

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

13

J285916

HEATER

240V, Europe Only

1шт.

14

J905114

ELECTRIC CABLE

1829 mm (72 in), Also Order J902425

1шт.
