(02-11) - FILTER AND COOLER - OIL, 4-390 EMISSIONS CERTIFIED ENGINE

Запчасти Case 585G (02-11) - FILTER AND COOLER - OIL, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

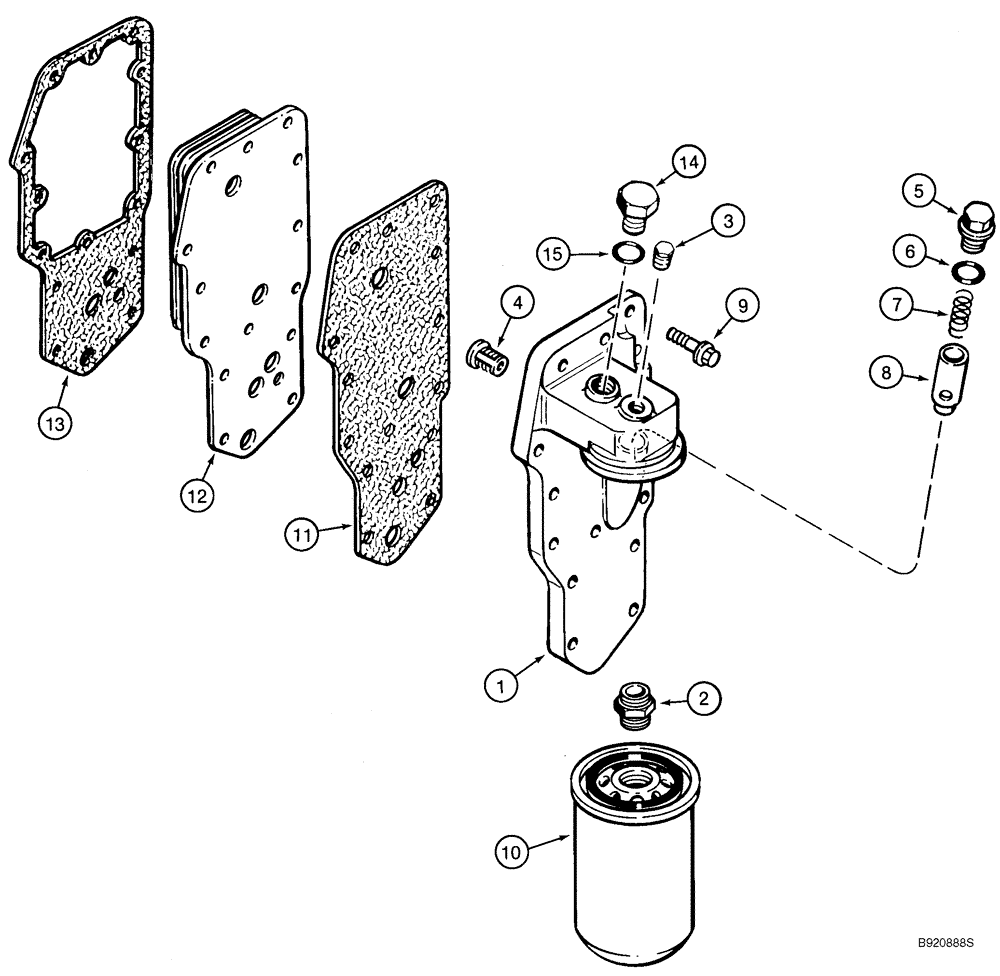

Схема запчастей Case 585G - (02-11) - FILTER AND COOLER - OIL, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
13
14
10
3
7
9
1
6
11
12
15
5
2
4
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

4-390 Emissions Certified Engine

1шт.

J918954

HEAD

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Head

1шт.

2

J909355

ADAPTER

1шт.

3

J906619

PLUG,1/8" - 27

1/8 PT

1шт.

4

J936365

VALVE PRESSURE RELIE

Replaces J933615

1шт.

5

J915787

PLUG

1шт.

6

J929457

O-RING

23/32 ID x 7/64

1шт.

7

J918427

SPRING

1шт.

8

J918428

PLUNGER

1шт.

9

845-8035

BOLT,Hvy Hex, M8 x 35mm, Cl 8.8

14шт.

10

J908616

ENGINE OIL FILTER,Single pkg qty. For multi pkg [qty.12] order J908616MP

1шт.

10

J934429

ENGINE OIL FILTER

Premium

1шт.

11

J942915

GASKET

Replaces J929792

1шт.

12

87416027

OIL COOLER

Replaces J921557

1шт.

13

87549580

GASKET,1.02mm Thk

Replaces J942914

1шт.

14

J919686

PLUG

12 mm, Incl. 15

1шт.

15

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.
