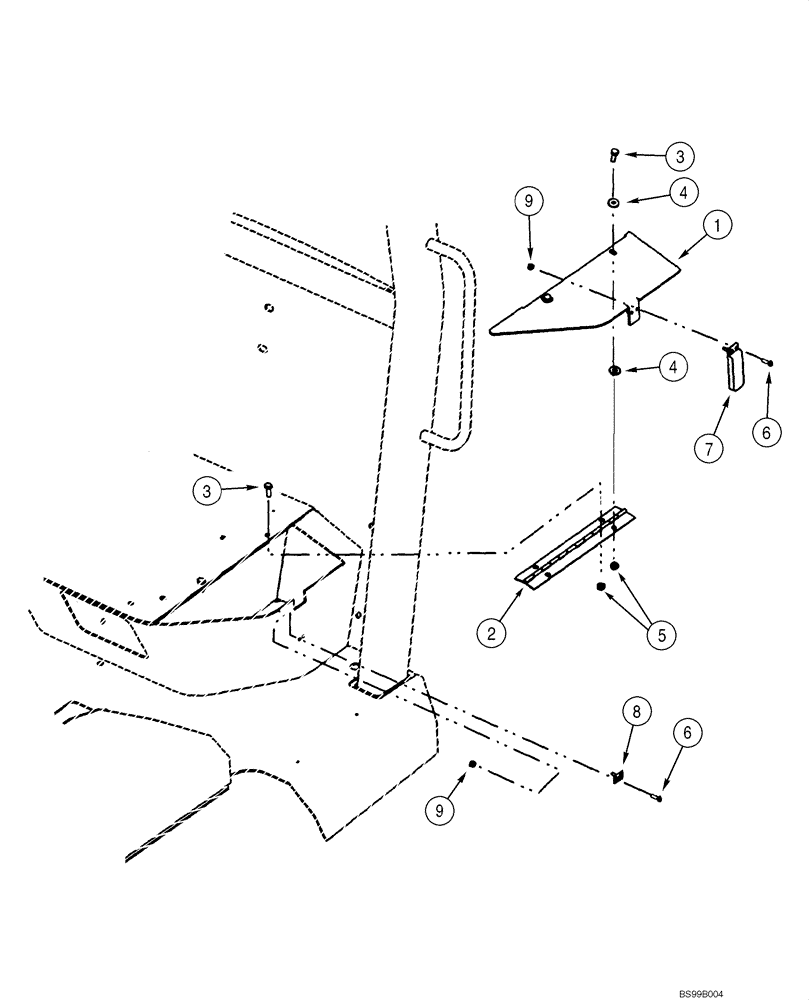

Запчасти Case 585G (09-28) - TOOLBOX (09) - CHASSIS

1

352520A2

PLATE

Cover, Toolbox, Replaces 352520A1

1шт.

2

352519A1

HINGE

Toolbox

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

4шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

6

87310124

SCREW,Phillips Drive, Pan HD, #10 - 24 x 1/2", SST

No. 10 x 1/2, Stainless Steel; Replaces 140-106 Non-Stainless Steel Screw Used On Some Models

4шт.

7

D131940

LATCH

Toolbox

1шт.

8

D131941

PLATE

Striker

1шт.

9

231-14409

NUT,#10-24, GB

4шт.
