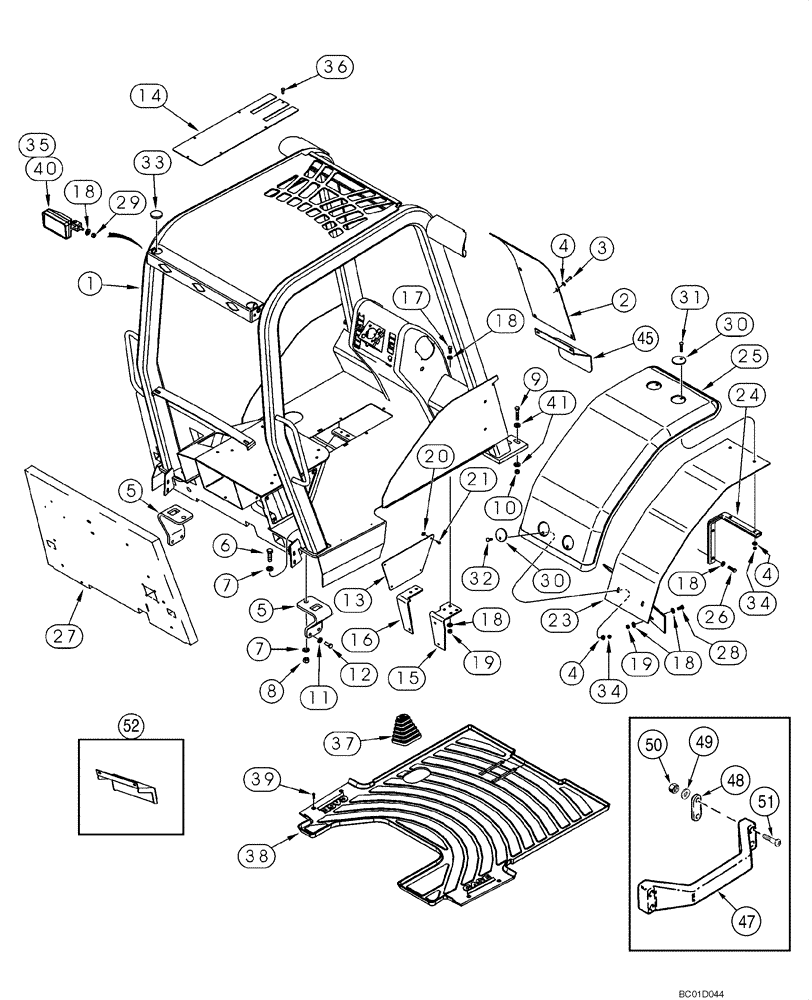

Запчасти Case 585G (09-27) - CANOPY, ROPS (09) - CHASSIS

349359A1

KIT

Incl. 1, 5, 6, 7, 8, 9, 10, 12, 27, 41, Also Incl. Decals - 321-7030, D150900, 321-4921, 347908A1, 347909A1, 348344A1, 347809A1, 345368A1, R44602, 321-3902, See Figure 09-31 - 09-33

1шт.

1

323346A3

PLATFORM ASSY.

ROPS, Production Only, For Service Order 349359A1, Replaces 323346A2

1шт.

2

327291A1

COVER

Rear Console

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

4

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

9 x 21 x 2,5 mm

1шт.

5

316082A1

MOUNTING PARTS

Front Pod

2шт.

6

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

2шт.

7

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

22 x 37 x 4 mm

4шт.

8

829-1420

NUT,M20, Cl 10

2шт.

9

827-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

4шт.

10

829-1412

NUT,M12, Cl 10.9

4шт.

11

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

4шт.

12

627-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

4шт.

13

338094A1

PLATE

Cover

1шт.

14

327301A1

PLATE

Cover, Floor

1шт.

15

345349A1

BRACKET

1шт.

16

345348A1

BRACKET

1шт.

17

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

18

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

11 x 24 x 3 mm

24шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

8шт.

20

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

21

87310086

CAPTIVE WASHER SCREW,Sl Pan Hd, #10 - 16 x 17mm, Stainless Steel

Replaces 140-107

4шт.

22

320361A1

SUPPORT

Fender, Left Hand, Not Illustrated

1шт.

23

320363A1

SUPPORT

Fender, Right Hand

1шт.

24

320215A1

BRACE

Fender, Upper

2шт.

25

319962A1

FENDER

Front, Small

2шт.

26

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

27

NSS

NOT SOLD SEPARAT

Shield, Heat, Firewall, Order 349359A1

1шт.

28

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

30

345357A1

SQ HOLE WASHER

2-1/2, Square Hole

8шт.

31

345356A1

BOLT

M8 x 45

4шт.

32

345355A1

BOLT

M8 x 30

4шт.

33

353-417

PLUG,Dome, 2.000" hole, Nylon

2 in Hole, Black Nylon

2шт.

34

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

8шт.

35

275333A1

LAMP, WORK

LIGHT, WORK Flood, Right Hand, See Figure 04-11

2шт.

36

87310096

BOLT,Hex, M6 x 25, Cl. 8.8, W/ Washer

M6 x 25, Includes Washer, Stainless Steel; Replaces 233724A1 Non-Stainless Steel Screw Used On Some Models

6шт.

36a

833-40406

NUT,M6, U

Not Illustrated

6шт.

37

353353A1

BOOT

1шт.

37a

353871A1

RETAINER

Boot Retaining, Not Illustrated

1шт.

37b

329032A1

SELF-TAP SCREW,Hex WAHR HD TPG #10 x 0.375 END TT

No. 10 x 3/8, Not Illustrated

4шт.

38

329776A1

FLOOR MAT

1шт.

39

87310085

SELF-TAP SCREW,HWH, M10 x 25.4mm

No. 10 x 1, Hex Washer Head, Self-Tapping, Stainless Steel; Replaces 280-16516 Non-Stainless Steel Screw Used On Some Models

4шт.

40

275334A1

LAMP, WORK

LIGHT, WORK Flood, Left Hand, See Figure 04-11

2шт.

41

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13,5 x 28 x 4 mm

8шт.

42

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP Manual Retention, Not Illustrated

1шт.

43

R46464

CASE

Operator, Not Illustrated, Incl. 44

1шт.

44

151-522

RIVET,Pop, 3/16" x .575"

3/16 x 7/32, Not Illustrated

3шт.

45

361234A1

PLATE

Valve Guard

1шт.

47

1958970C1

HANDLE

2шт.

48

1971368C1

PLATE ASSY.

4шт.

49

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

50

832-10406

NUT,M6 x 1, Cl 8

8шт.

51

360051A1

BOLT (MACHINE)

8шт.

52

357941A1

PLATE

1шт.
