Запчасти Case 585G (09-22) - BATTERY BOX - TANK, HYDRAULIC OIL (09) - CHASSIS

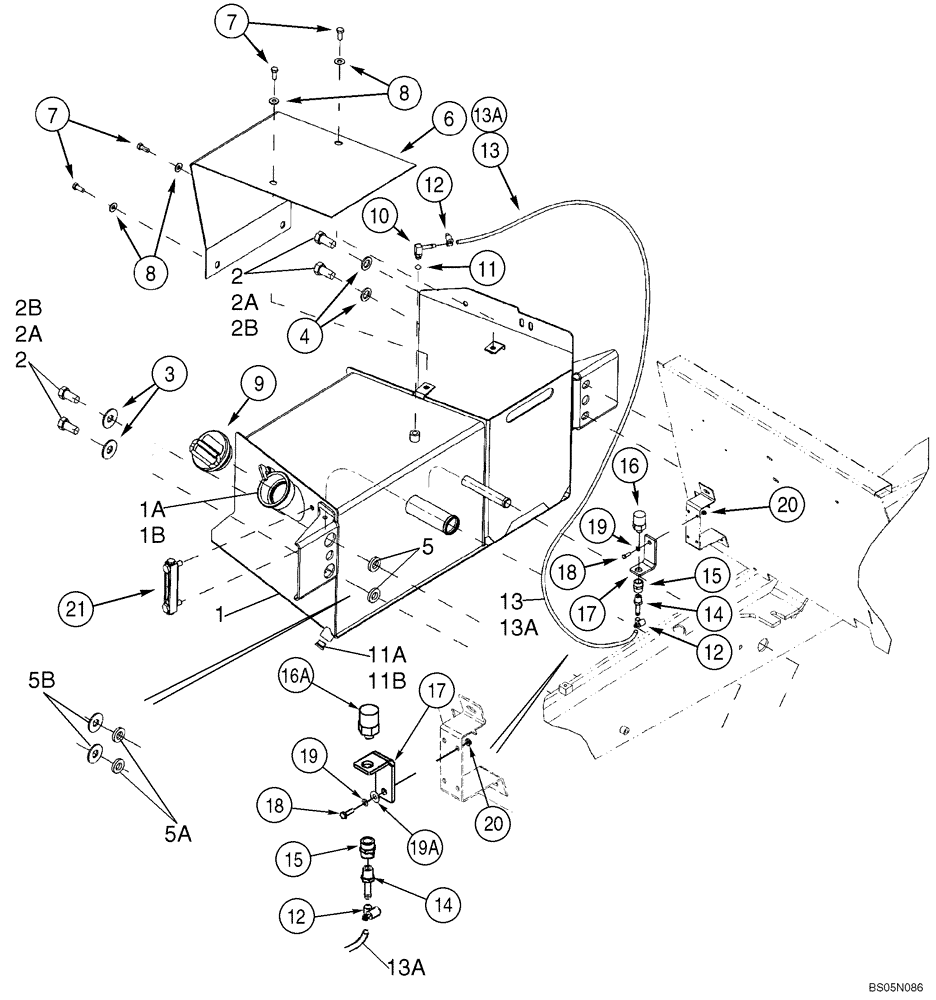

Схема запчастей Case 585G - (09-22) - BATTERY BOX - TANK, HYDRAULIC OIL (09) - CHASSIS
1a
19a
11b
2a
2
12
2b
5
18
13
14
20
9
2b
11
19
16
8
13
4
16a
3
1b
17
2a
12
17
18
6
7
5a
7
1
13a
11a
20
14
19
2
8
13a
13a
5b
10
12
15
15

Артикул

Название

Примечание

Количество

283325A4

TANK, HYDRAULIC OIL

Left Hand Side of Chassis, If Used

1шт.

87429271

TANK, HYDRAULIC OIL

Left Hand Side of Chassis, If Used, Incl. 1 - 1B, 9 - 11B, 21, Plus (2) D55216 Nonslip Pads, And 321-229 Hydraulic Fluid Decal

1шт.

1

87429272

TANK, HYDRAULIC OIL

Incl. 1A, 1B, 11A

1шт.

1a

230857A1

FILTER SCREEN

Strainer, fill Tube

1шт.

1b

440-1066

SCREW,Cross Pan Hd, #6-32 x 3/8"

2шт.

2

627-20040

BOLT,Hex, M20 x 2.5 x 40mm, Cl 10.9, Full Thd

Used with 283325A4, Ref 1, Used with Ref 22

4шт.

2a

627-20060

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9, Full Thd

Used With 398369A1, REF 1A, Used With REF 22

4шт.

2b

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

Used With 87429271, REF 1B

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

4

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

5

409472A1

SPACER

21 ID x 55.5 OD x 8.25 mm thk, With 40 mm dia x 6.6 mm thk Raised Surface; If Used

2шт.

5a

87360280

SPACER,22mm ID x 57mm OD x 8.25 Th

22 ID x 57 OD x 8.25 mm thk, Flat; Used With Ref 5B; If Used

2шт.

5b

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk; Used With Ref 5A; If Used

2шт.

6

231656A1

COVER

Battery

1шт.

7

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

8

495-21044

WASHER,3/8"

4шт.

9

138595A1

FILLER CAP,Male, Lockable

1шт.

10

217-347

FITTING,90 Degree Elbow, 3/8" Hose Barb x 9/16" - 18 Male ORB

Incl. 11

1шт.

11

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11a

86625138

PLUG,7/18" - 14

Drain; Includes 11B

1шт.

11b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

214-1406

HOSE CLAMP,#06, 0.44" - 0.78", Type F Worm

2шт.

13

143218A1

HYDRAULIC HOSE

735 mm (29 in), Vent, If Used

1шт.

13a

87363421

HOSE, BULK,9.53mm ID x 912mm L

HOSE, METERS 912 mm (35-29/32 in), Vent, If Used; Replaces 393161A1 Hose

1шт.

14

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

15

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

16

120943A1

STRAINER ASSY.

If Used

1шт.

16a

361776A1

BREATHER,3/8"-18

If Used

1шт.

17

122603A1

SUPPORT

1шт.

18

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

1шт.

19

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19a

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

1шт.

21

226456A1

LEVEL GAUGE

Aluminum; Incl. (2) Hollow Head Bolts and (4) 238-6114 O-Rings Used with Ref 22

1шт.

22

B17422

LOCTITE

Loctite, No. 242, 50 ml, Not Illustrated

1шт.

Выбрано товаров: 35
