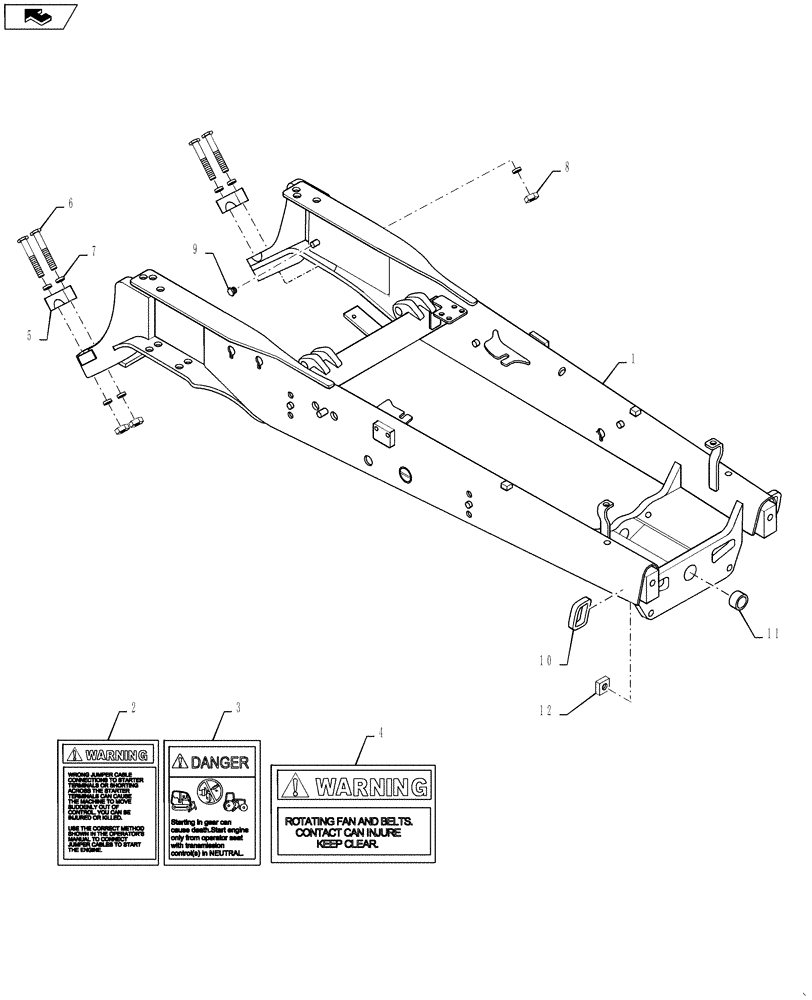

Запчасти Case 585G (09-20) - CHASSIS (09) - CHASSIS

374706A1

CHASSIS

Service Kit For 320352A2 Chassis, Incl. 1 - 4, And Instructions; Replaces 349358A1; No Longer Used, Order Chassis

1шт.

1

87578859

CHASSIS

Forklift, Replaces 320352A2, 398981A1, 398981A2; No Service Kit With Decals Available

1шт.

2

321-6872

DECAL

See Figure 09-22

1шт.

3

321-7040

DANGER DECAL

See Figure 09-21

1шт.

4

321-3596

DECAL

See Figure 09-22

2шт.

5

315920A1

BLOCK

Upper

2шт.

6

827-16190

BOLT,Hex, M16 x 2 x 190mm, Cl 10.9

4шт.

7

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

8шт.

8

832-10416

NUT,M16 x 2, Cl 8

4шт.

9

218-776

PLUG,7/8"-14, 37 Degree

7/8 fl; 5/8 Tube; For Models Without Mast To Cap Main Hydraulic Line Going To Mast

1шт.

10

87409166

SERVICE KIT

Tiedowns, Forklift, Includes (4) Tiedowns and Instructions

1шт.

11

D127542

BUSHING,50.2mm ID x 60mm OD x 30mm L

2шт.

12

5878

SQUARE NUT

3/4", Square

2шт.
