Запчасти Case 585G (08-19) - VALVE SECTION - FORKLIFT TILT (08) - HYDRAULICS

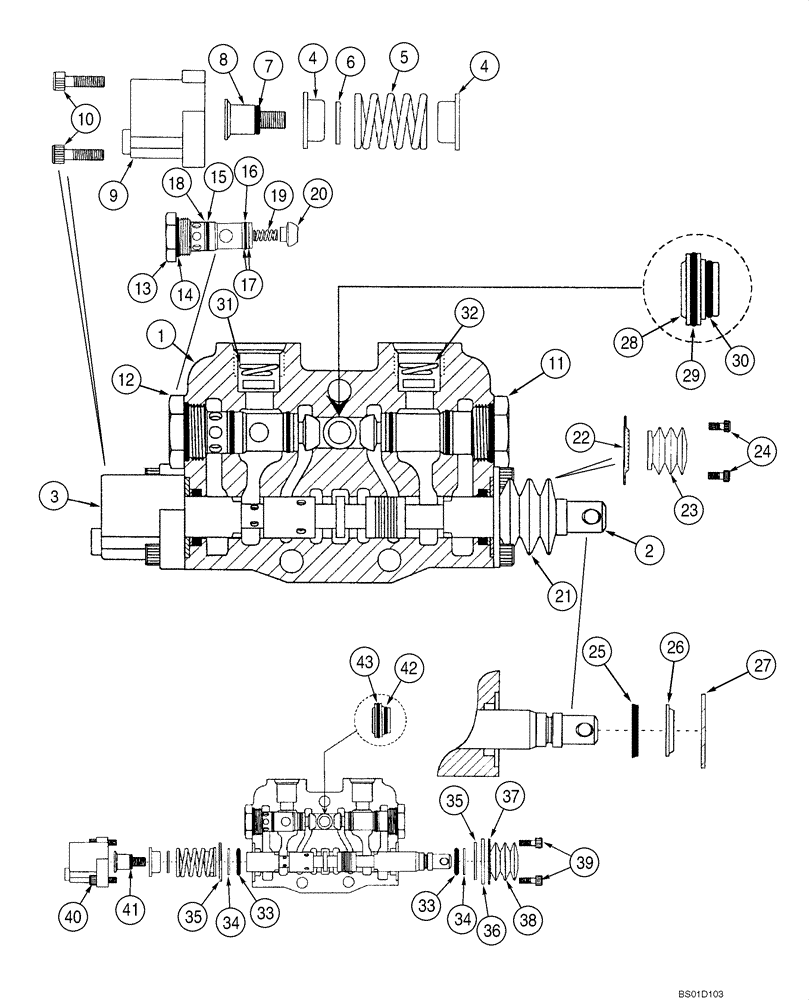

Схема запчастей Case 585G - (08-19) - VALVE SECTION - FORKLIFT TILT (08) - HYDRAULICS
32
5
33
19
33
27
43
39
23
14
25
20
22
6
4
35
4
8
18
30
7
35
13
34
16
1
10
41
34
17
9
12
31
24
28
21
36
38
37
40
26
3
15
29
42
2
11

Артикул

Название

Примечание

Количество

358661A1

HYD VALVE SECTION

Tilt, Incl. 1 - 43

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

360595A1

SPOOL

Spool Positioner, Incl. 4 - 10

1шт.

4

H267591

SPRING SEAT

2шт.

5

D87306

SPRING

1шт.

6

NSS

NOT SOLD SEPARAT

Spacer

1шт.

7

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

8

NSS

NOT SOLD SEPARAT

Bolt, Special

1шт.

9

NSS

NOT SOLD SEPARAT

Cap

1шт.

10

NSS

NOT SOLD SEPARAT

Screw

2шт.

11

L100937

PLUG

Load Check

1шт.

12

360583A1

PLUG

Anticavitation, Check, Incl. 13 - 20

1шт.

13

NSS

NOT SOLD SEPARAT

Plug

1шт.

361691A1

SEAL KIT

Seal, Incl. 14 - 16

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

16

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

1шт.

17

D88725

BACK-UP RING

2шт.

18

D88725

BACK-UP RING

1шт.

19

H268730

SPRING

1шт.

20

D28576

VALVE POPPET

1шт.

21

348741A1

KIT

Boot, Incl. 22 - 24

2шт.

22

NSS

NOT SOLD SEPARAT

Retainer

1шт.

23

NSS

NOT SOLD SEPARAT

Boot

1шт.

24

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

1/4 x 1/2

2шт.

348738A1

SPOOL

Lip Seal, Spool, Incl. 25 - 27, If Used, May Be Replaced By 381064A1 O-Ring Kit

2шт.

25

NSS

NOT SOLD SEPARAT

Seal, Lip Seal

2шт.

26

NSS

NOT SOLD SEPARAT

Wiper

2шт.

27

NSS

NOT SOLD SEPARAT

Retainer, Seal

2шт.

28

362640A1

SLEEVE ASSY

Tilt Lock, Incl. 29, 30

1шт.

29

360585A1

O-RING,0.864mm ID x 0.07mm Width

1шт.

30

237-5008

O-RING,0.176" ID x 0.316" OD x 0.07"

1шт.

31

360589A1

RESTRICTOR

1шт.

32

360590A1

RESTRICTOR

1шт.

381064A1

SEAL PACKAGE

O-Ring, Spool, Retrofit, Incl. 33 - 43, Replaces 348738A1 Lip Seal Kit Used On Some Models

1шт.

33

D88728

O-RING,19.05mm ID x 25.4mm OD x 3.18mm Thk

2шт.

34

D88729

WASHER,0.76" ID x 1" OD x 0.05" Thk

2шт.

35

D88730

WASHER,0.77" ID x 1.43" OD

2шт.

36

N8194

LARGE PLATE

PLATE, LARGE

1шт.

37

357163A1

RETAINER

1шт.

38

357164A1

BOOT

1шт.

39

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

1/4 x 1/2

2шт.

40

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

2шт.

41

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

42

360585A1

O-RING,0.864mm ID x 0.07mm Width

1шт.

43

237-5008

O-RING,0.176" ID x 0.316" OD x 0.07"

1шт.

Выбрано товаров: 47
