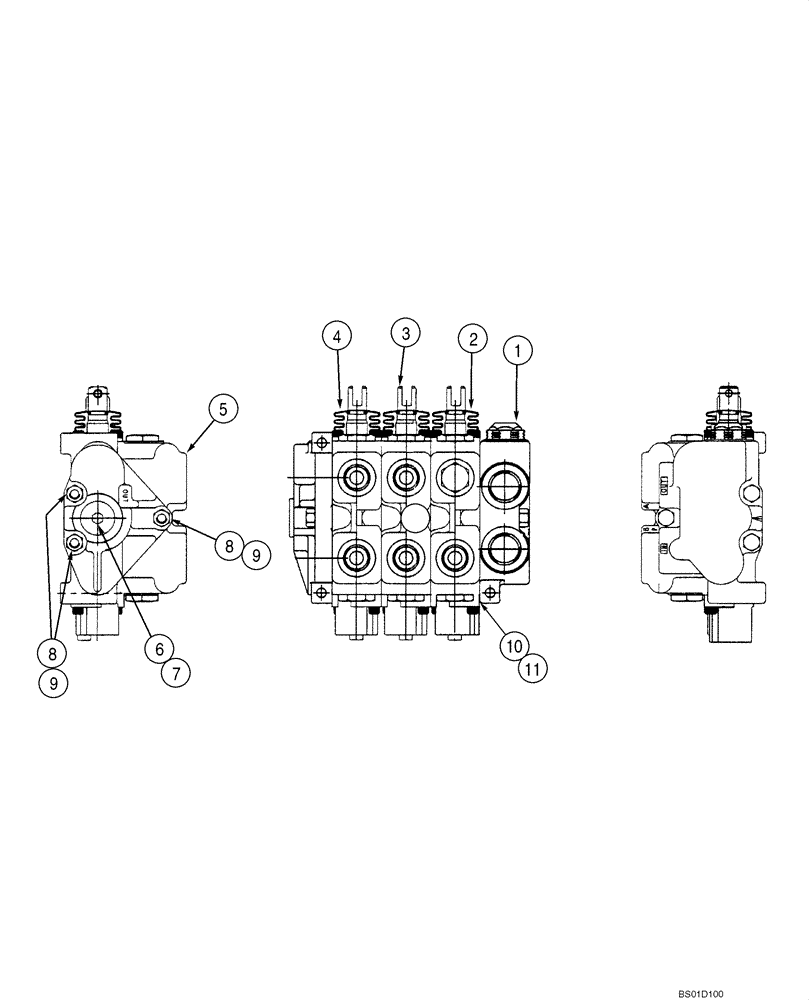

Запчасти Case 585G (08-15) - VALVE ASSY - FORKLIFT CONTROL (08) - HYDRAULICS

Three Spool

1шт.

356883A1

VALVE, CONTROL

Forklift Control, Three Spool, Incl. 1 - 11

1шт.

1

360519A1

HYD VALVE SECTION

Inlet, See Figure 08-17

1шт.

2

360520A1

HYD VALVE SECTION

Lift, See Figure 08-18

1шт.

3

358661A1

HYD VALVE SECTION

Tilt, See Figure 08-19

1шт.

4

360521A1

HYD VALVE SECTION

Side Shift, See Figure 08-20

1шт.

348719A1

COVER

End Cover, Incl. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

Housing

1шт.

6

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Incl. 7

1шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

348722A1

PACKAGE, REPAIR

Incl. 8, 9

1шт.

8

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

3/8 x 8

3шт.

9

425-106

NUT,3/8"-16, Cl 5

3шт.

10

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Between sections

12шт.

11

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between Sections

4шт.
