Запчасти Case 585G (02-08) - WATER PUMP SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE

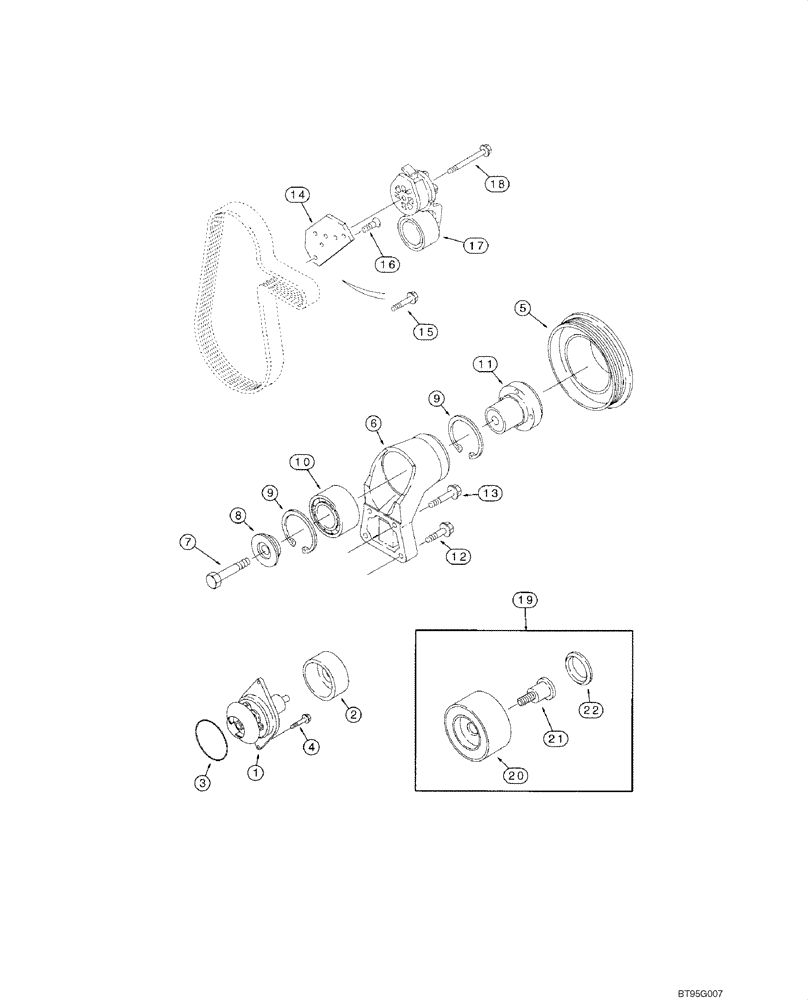

Схема запчастей Case 585G - (02-08) - WATER PUMP SYSTEM, 4-390 EMISSIONS CERTIFIED ENGINE (02) - ENGINE
18
2
12
21
19
7
11
17
8
9
1
10
20
22
14
3
6
4
13
16
15
5
9

Артикул

Название

Примечание

Количество

*

4-390 Emissions Certified Engine

1шт.

1

J286277

PUMP, WATER

Water Pump, Incl. 1 - 3, Replaces J802970

1шт.

1

J286278R

REMAN-WATER PUMP

585G, 586G, 588G

1шт.

1

J286278C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

Pulley Assy

1шт.

2

NSS

NOT SOLD SEPARAT

Pulley

1шт.

3

J906698

RUBBER SEAL,Square, 5.16mm Thk x 88.27mm ID

3-1/2 ID x 3/16

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

2шт.

5

J914462

PULLEY,163mm OD

1шт.

6

87428288

BEARING HOUSING

Incl. 7 - 11, Replaces J911205

1шт.

7

J907769

BOLT,Hex, M10 x 70mm, Cl 12.9

M10 x 70

1шт.

8

J923044

RETAINER

1шт.

9

100-21250

SNAP RING,2.50", Int, #250

2шт.

10

J910739

BALL BEARING,35mm ID x 64mm OD x 37mm W

1шт.

11

J911924

HUB

1шт.

12

845-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

2шт.

13

845-8030

BOLT,Hvy Hex, M8 x 30mm, Cl 8.8

2шт.

14

J925195

SUPPORT

1шт.

15

845-8025

BOLT,Hex Flg, M8 x 25mm, Cl 8.8

1шт.

16

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

1шт.

17

87327014

BELT TENSIONER

Replaces J934817, J936203

1шт.

18

854-10070

BOLT,Hvy Hex, M10 x 70mm, Cl 10.9

If Used

1шт.

18

86011090

BOLT,Hex Flng, M10 x 70mm, Cl 8.8

If Used

1шт.

19

A77817

KIT

Tensioner, No Longer Used, Incl. 20 - 22

1шт.

20

NSS

NOT SOLD SEPARAT

Pulley

1шт.

21

NSS

NOT SOLD SEPARAT

Bolt

1шт.

22

NSS

NOT SOLD SEPARAT

Seal

1шт.

Выбрано товаров: 27
