(08-04) - HYDRAULICS - FORKLIFT TILT

Запчасти Case 585G (08-04) - HYDRAULICS - FORKLIFT TILT (08) - HYDRAULICS

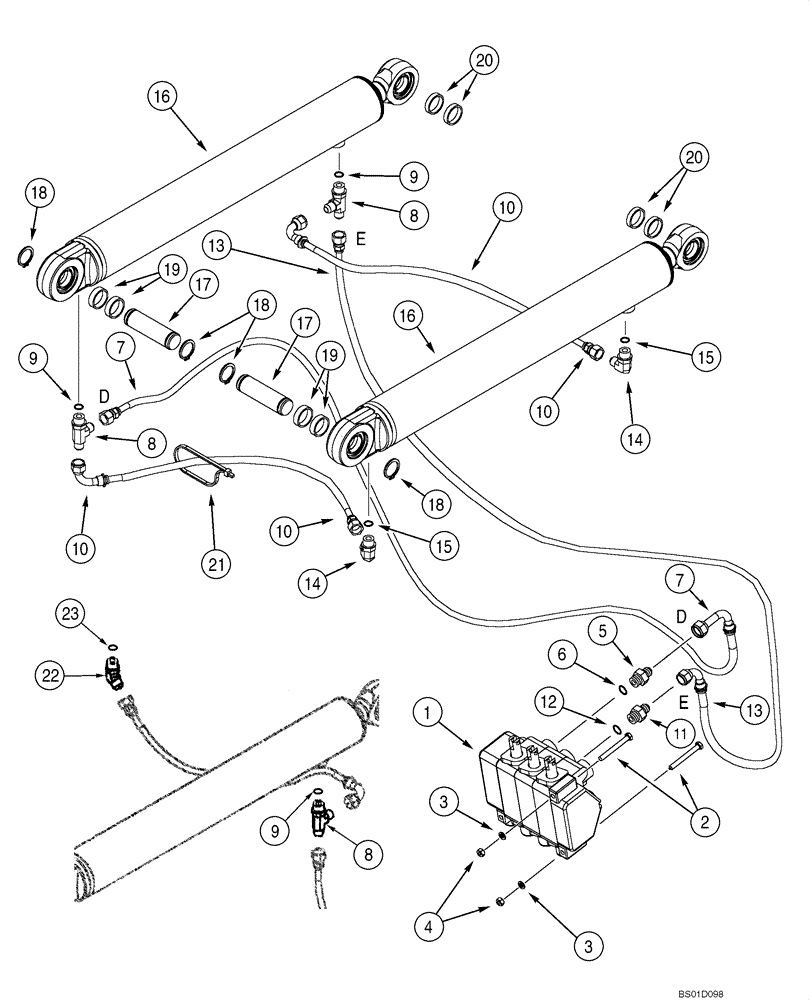

Схема запчастей Case 585G - (08-04) - HYDRAULICS - FORKLIFT TILT (08) - HYDRAULICS
12
8
16
8
13
11
20
14
9
17
4
10
16
15
6
10
23
7
19
10
21
1
7
14
2
10
18
5
17
9
22
3
19
18
20
3
15
9
13
18
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

356883A1

VALVE, CONTROL

3 Spool, Forklift Control, See Figure 08-15

1шт.

1

356884A1

VALVE, CONTROL

Four Spool, Forklift Control, See Figure 08-16, Not Illustrated

1шт.

2

814-8070

BOLT,Hex, M8 x 1.25 x 70mm, Cl 8.8

3шт.

3

892-11008

LOCK WASHER,8mm ID

3шт.

4

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

3шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 6

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

338510A1

HOSE,12.7mm ID x 1200mm L

1200 mm (47-1/4 in), Valve to Cylinder; See 87333934 Kit, Figure 08-03

1шт.

8

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

10

338512A1

HOSE,9.53mm ID x 625mm L

625 mm (24-3/8 in)

2шт.

11

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. 12

1шт.

12

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

338511A2

HOSE ASSY.,12.7mm ID x 625mm L

625 mm (24-3/8 in), Replaces 338511A1; See 87333934 Kit, Figure 08-03

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 15

1-2шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

16

318877A1

CYLINDER,Double Acting, 38.1mm Rod, 560mm Stroke

76 ID x 560 mm strk, Forklift Tilt, See Figure 08-05

2шт.

16

318877A1R

REMAN-HYD CYLINDER

585G, 586G, 588G, All CASE FORKLIFT, 76 ID x 560 mm strk, Forklift Tilt

2шт.

16

318877A1C

CORE-HYD CYLINDER

Return Number

2шт.

17

329697A1

PIN,31.70mm OD x 113.2mm L

2шт.

18

103-16125

SNAP RING,#125, Ext

4шт.

19

353738A1

SPACER,38.10mm ID x 40.87mm OD x 10.5mm Thk

4шт.

20

353741A1

SPACER,38.10mm ID x 40.87mm OD x 8.5mm Thk

4шт.

21

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

22

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. 23; If used

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
