Запчасти Case 585G (08-02) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS

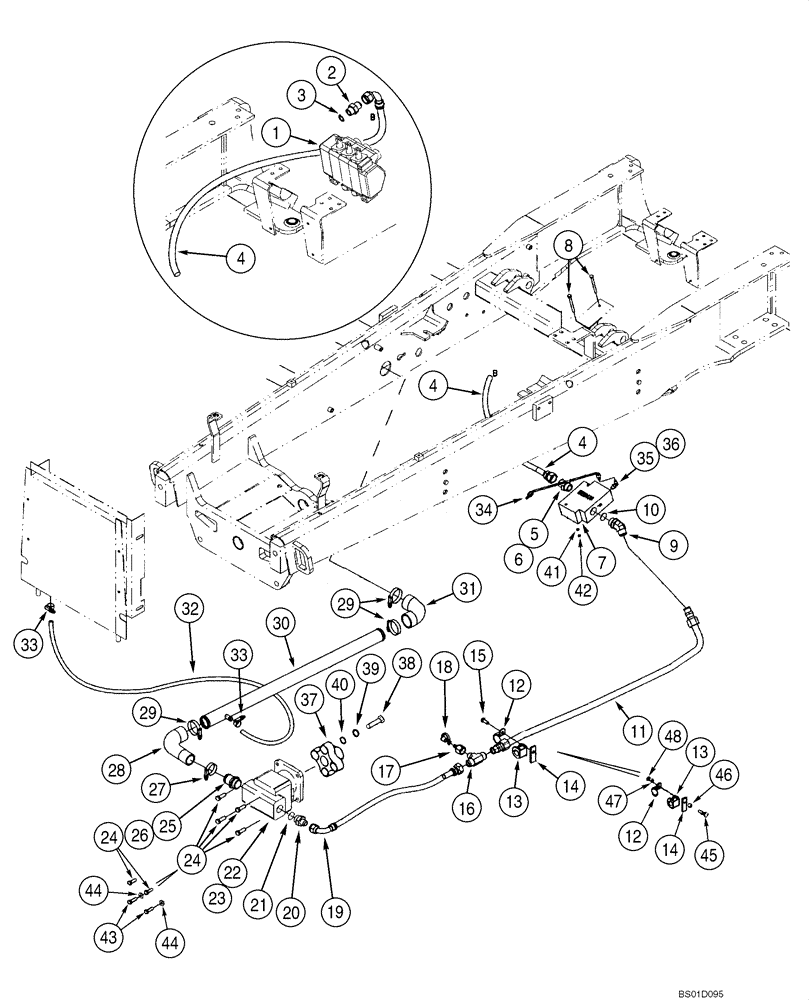

Схема запчастей Case 585G - (08-02) - HYDRAULICS - RESERVOIR TO HYDRAULIC PUMP (08) - HYDRAULICS
6
12
43
24
19
1
13
13
45
27
31
4
29
14
8
41
29
34
10
30
28
48
15
11
35
18
44
37
14
7
24
42
12
4
17
21
39
23
22
9
32
4
38
44
25
3
46
47
33
20
16
36
5
40
2
26
33

Артикул

Название

Примечание

Количество

1

356883A1

VALVE, CONTROL

3 Spool, Forklift Control, See Figure 08-15

1шт.

1

356884A1

VALVE, CONTROL

Four Spool, Forklift Control, See Figure 08-16, Not Illustrated

1шт.

2

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. 3

1шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

4

347911A1

HOSE,19.05mm ID x 1250mm L

1шт.

5

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 6

1шт.

6

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

7

87548326

HYDRAULIC VALVE

Flow Control/Priority; See Figure 08-21; Replaces D132476

1шт.

8

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

If used

2шт.

8

814-8090

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

If Used

2шт.

9

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 9

1шт.

10

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

11

377810A1

TUBE,25.4 mm OD, 1170, 255 mm Length

Pump to Valve, Replaces 329686A1

1шт.

12

D143410

CLAMP,36.58mm ID, 10.31mm Bolt Hole, J Type

1шт.

13

D67297

BLOCK

1шт.

14

115633A1

SUPPORT

1шт.

15

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

If Used

1шт.

16

218-587

TEE,37 Degree, 1 5/16"-12 x 1 1/16"-12, Br

1шт.

17

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

1шт.

18

H434163

DUST CAP

1шт.

19

363527A1

HOSE ASSY.

576 mm (22-3/4 in)

1шт.

20

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. 21

1шт.

21

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

22

327270A1

PUMP

585G and 586G Forklift Only, See Figure 08-11

1шт.

23

315830A1

PUMP

588G Forklift Only, See Figure 08-11A

1шт.

24

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

2-4шт.

25

217-176

FITTING,1-1/2" Hose Barb x 1-5/8" - 12 Male ORB

Incl. 26

1шт.

26

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

27

353036A1

HOSE CLAMP,32mm - 54mm

1шт.

28

336745A1

HOSE

1шт.

29

259044A1

CLAMP

3шт.

30

331012A1

TUBE,950 mm Length

Suction

1шт.

31

87306272

HYDRAULIC HOSE,50.80 mm ID x 102.00 mm

Replaces 282497A1 Hose Used On Some Models

1шт.

32

338514A1

HOSE

450 mm (17-3/4 in), Cooler to Large Tube

1шт.

33

328186A1

HOSE CLAMP,400mm L

2шт.

34

329700A1

TUBE

Used With D132476 Flow Control/Priority Valve; If Used

1шт.

34

87548180

TUBE,.25" OD

Used With 87548326 Flow Control/Priority Valve; If Used

1шт.

35

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

257948A1

FLEXIBLE COUPLING,Flex, 17T

1шт.

37

253541A1

COUPLING,15 Teeth

1шт.

38

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

4шт.

39

492-11044

LOCK WASHER,7/16"

4шт.

40

A30013

WASHER,11.51mm ID x 19.05mm OD x 1.59mm Thk

4шт.

41

892-11008

LOCK WASHER,8mm ID

2шт.

42

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

43

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

If used

2шт.

44

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

If Used

2шт.

45

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

46

120303A1

SPACER,11mm ID x 15.82mm OD x 15mm Thk

1шт.

47

892-11010

LOCK WASHER,M10

1шт.

48

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
