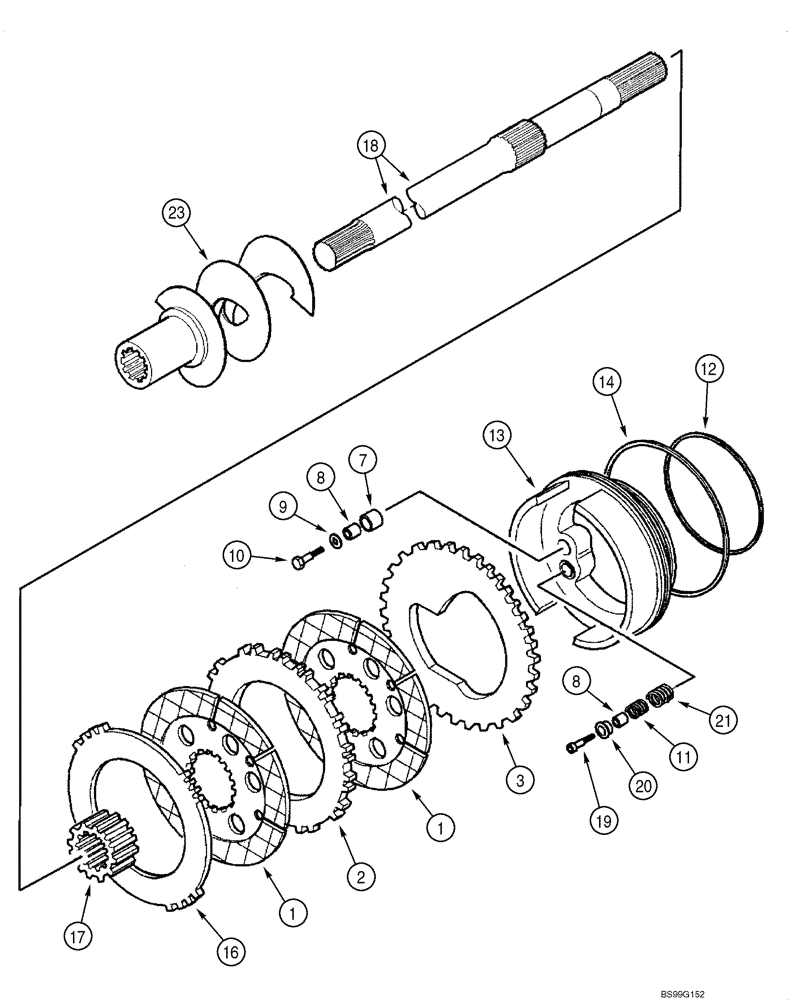

Запчасти Case 585G (07-03) - AXLE, FRONT - DRIVE BRAKE, DIFFERENTIAL (W/OIL TEMP SENDER) (07) - BRAKES

.

With Oil Temperature Switch

1шт.

.

If Used

1шт.

.

319063A1

AXLE, REAR

AXLE REAR Incl. Figure 06-58 - 06-62, 07-03, 07-04

1шт.

1

237021A1

LARGE PLATE

PLATE, LARGE

4шт.

2

237022A1

LARGE PLATE

PLATE, LARGE

2шт.

3

308029A1

PLATE

Piston

2шт.

.

358212A1

KIT

Brake Self Adjuster, Incl. 7, 8

1шт.

7

190449A1

SPLIT PIN

18 x 20 mm, No Longer Sold Separately, Order 358212A1

6шт.

8

190496A1

BUSHING

No Longer Sold Separately, Order 358212A1

12шт.

9

190450A1

WASHER

6шт.

10

814-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8

6шт.

11

237026A1

SPRING

6шт.

12

308036A1

O-RING,172mm ID x 3.5mm Thk

2шт.

13

359653A1

PISTON

2шт.

14

190493A1

O-RING,0.139" Thk x 8.234" ID, -267, 90 Duro

2шт.

16

308030A1

PLATE

2шт.

17

308042A1

SPLINED COUPLING

2шт.

18

295111A1

SHAFT

2шт.

19

864-6035

HEX SOC SCREW,M6 x 35mm, Cl 8.8

6шт.

20

190500A1

COVER

6шт.

21

237025A1

SPRING

6шт.

23

295113A1

AUGER,LH, 29 Tooth Splined Hub

LH Auger Shown, Oil, Incl. Welded-On Clamp and Bolt, Plus Welded-On Drive Coupling, Incl. 24

1шт.

23

295112A1

AUGER,RH, 29 Tooth Splined Hub

LH Auger Shown, Oil, Incl. Welded-On Clamp and Bolt, Plus Welded-On Drive Coupling, Incl. 24

1шт.

24

863-6020

HEX SOC SCREW,M6 x 20mm, Cl 12.9

Not Illustrated

2шт.
