Запчасти Case 585G (02-06) - COLD START SYSTEM (02) - ENGINE

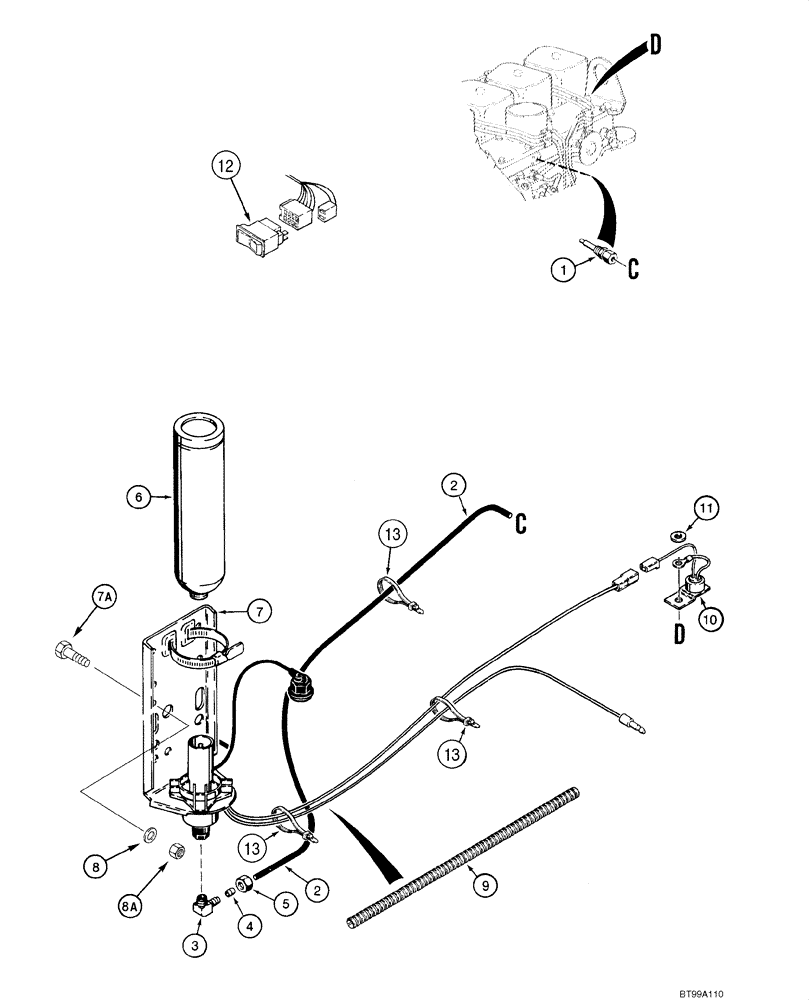

Схема запчастей Case 585G - (02-06) - COLD START SYSTEM (02) - ENGINE
2
9
4
13
2
7
10
8a
8
12
5
13
1
7a
11
13
6
3

Артикул

Название

Примечание

Количество

1

A189154

JET

Component Parts Not Serviced Separately

1шт.

2

D145367

TUBE

762 mm (30 in), Cut From L60539X

1шт.

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube OD, Incl. 3 - 5

1шт.

3

NSS

NOT SOLD SEPARAT

Body

1шт.

4

222-650

SLEEVE,1/8" Tube, Comp

1шт.

5

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD

1шт.

6

A171940

CYLINDER

Ether

1шт.

7

A172116

VALVE

12V, 3 cc, Component Parts Not Serviced Separately

1шт.

7a

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

8

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

2шт.

8a

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

9

D128402

PLASTIC-RUBBER TUBE

380 mm (15 in)

1шт.

10

A187923

SWITCH

SWITCH - Temperature, Use Existing Hardware

1шт.

11

495-11034

WASHER,5/16", SAE

(11/32 x 11/16 x 1/16")

1шт.

12

229364A1

SWITCH

Cold Start, See Figure 04-08

1шт.

13

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

Выбрано товаров: 16
