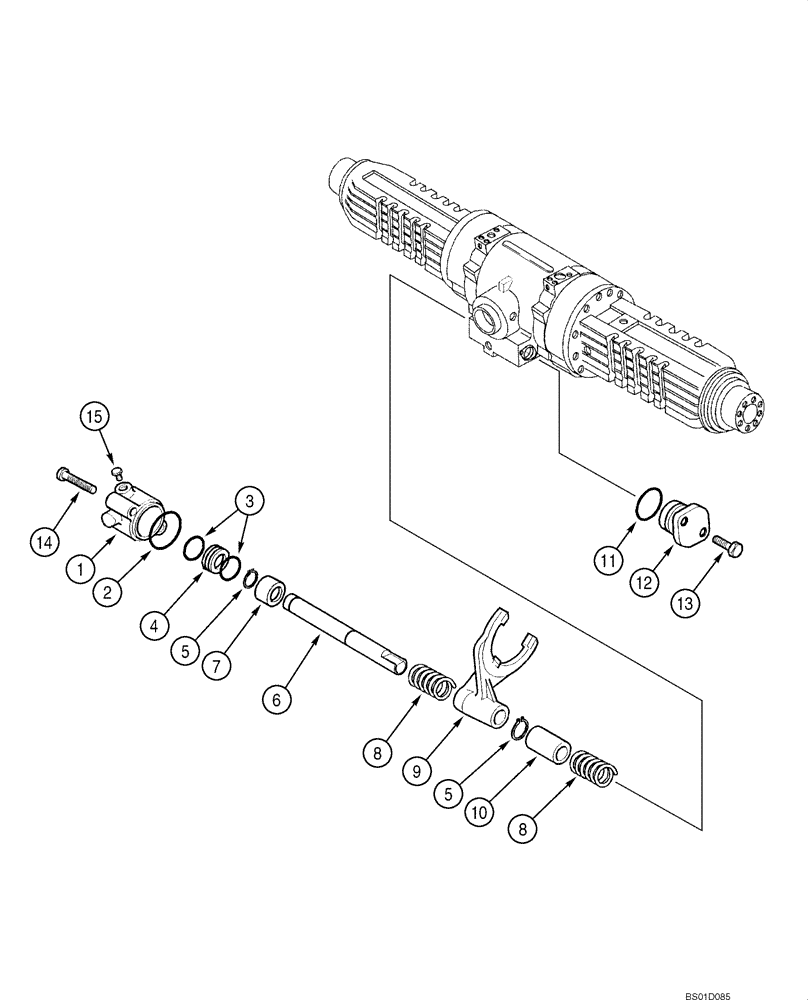

Запчасти Case 585G (06-61) - AXLE, FRONT DRIVE - DIFFERENTIAL LOCK (06) - POWER TRAIN

With Oil Temperature Switch

1шт.

If Used

1шт.

1

319063A1

AXLE, REAR

AXLE REAR Incl. Figure 06-58 - 06-62, 07-03, 07-04

1шт.

1

87422526R

REMAN-REAR AXLE

585G, 586G, 588G, Reman For New P/N's 279172A1, 319063A1, 87422526,

1шт.

1

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

292213A1

CYLINDER

1шт.

2

305152A1

O-RING

1шт.

3

292210A1

SEAL

2шт.

4

292212A1

PISTON

1шт.

5

800-5120

SNAP RING,M20, Ext

No. 20

2шт.

6

292214A1

SHAFT

Rail, Shifter Fork

1шт.

7

292902A1

RING

1шт.

8

175966A1

SPRING

2шт.

9

175964A2

FORK

1шт.

10

175965A1

BUSHING

1шт.

11

128376A1

O-RING

1шт.

12

175968A1

SUPPORT

1шт.

13

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

14

814-8080

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

2шт.

15

NSS

NOT SOLD SEPARAT

Plug

1шт.
