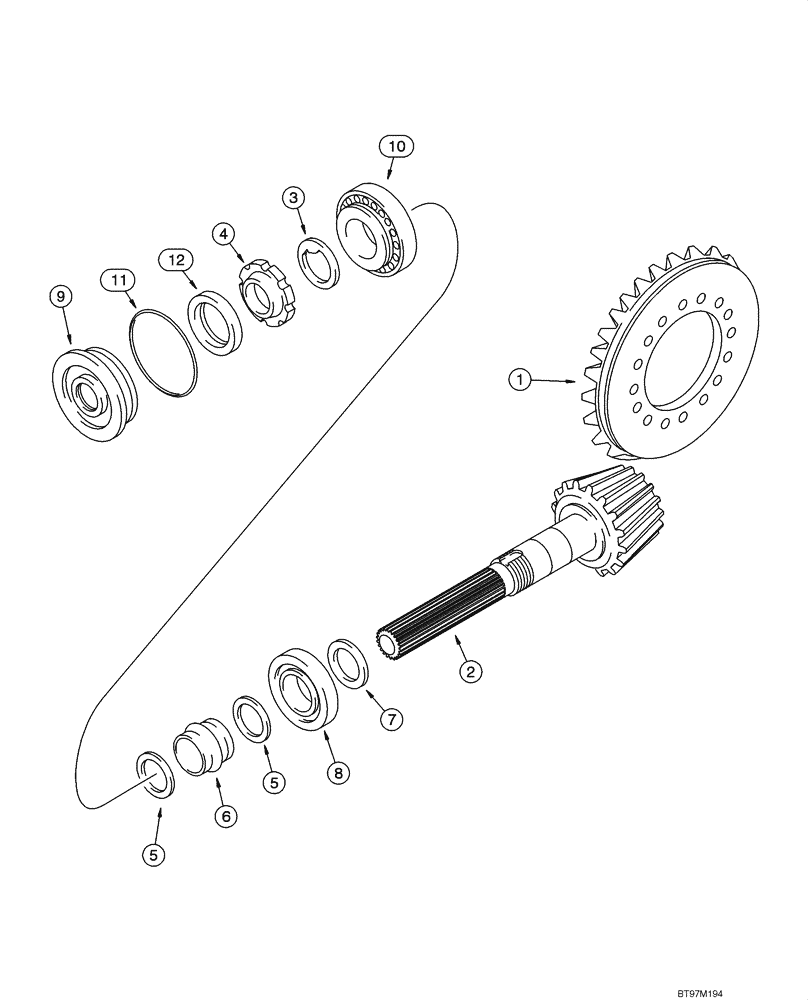

Запчасти Case 585G (06-60) - AXLE, FRONT DRIVE - RING AND PINION (06) - POWER TRAIN

With Oil Temperature Switch

1шт.

If Used

1шт.

1

319063A1

AXLE, REAR

AXLE REAR Incl. Figure 06-58 - 06-62, 07-03, 07-04

1шт.

1

87422526R

REMAN-REAR AXLE

585G, 586G, 588G, Reman For New P/N's 279172A1, 319063A1, 87422526,

1шт.

1

87422526C

CORE-REAR AXLE

Return Number

1шт.

175956A1

GEAR-SET

Ring and Pinion, Incl. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

Gear, Ring

1шт.

2

NSS

NOT SOLD SEPARAT

Gear, Pinion

1шт.

3

K261065

LOCK WASHER

1шт.

4

K261014

RING NUT,M40 x 1.5

1шт.

5

1349059C1

WASHER,40.5mm ID x 50mm OD x 2mm Thk

2шт.

6

175957A1

SPACER

Collapsible

1шт.

7

190506A1

SHIM,2.5mm Thk

(0.098")

1шт.

7

190508A1

SHIM,2.6mm Thk

(0.102")

1шт.

7

190509A1

SHIM,2.7mm Thk

(0.106")

1шт.

7

190510A1

SHIM,2.8mm Thk

(0.110")

1шт.

7

190511A1

SHIM,2.9mm Thk

(0.114")

1шт.

7

190512A1

SHIM,3.0mm Thk

(0.118")

1шт.

7

190513A1

SHIM,3.1mm Thk

(0.122")

1шт.

7

190514A1

SHIM,3.2mm Thk

(0.125")

1шт.

7

190515A1

SHIM,3.3mm Thk

(0.129")

1шт.

7

190516A1

SHIM,3.4mm Thk

(0.133")

1шт.

8

P1139855

BEARING

1шт.

9

128570A1

FLANGE

1шт.

10

K395090

TAPERED BEARING,40mm ID x 90mm OD

1шт.

11

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

12

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

1шт.
