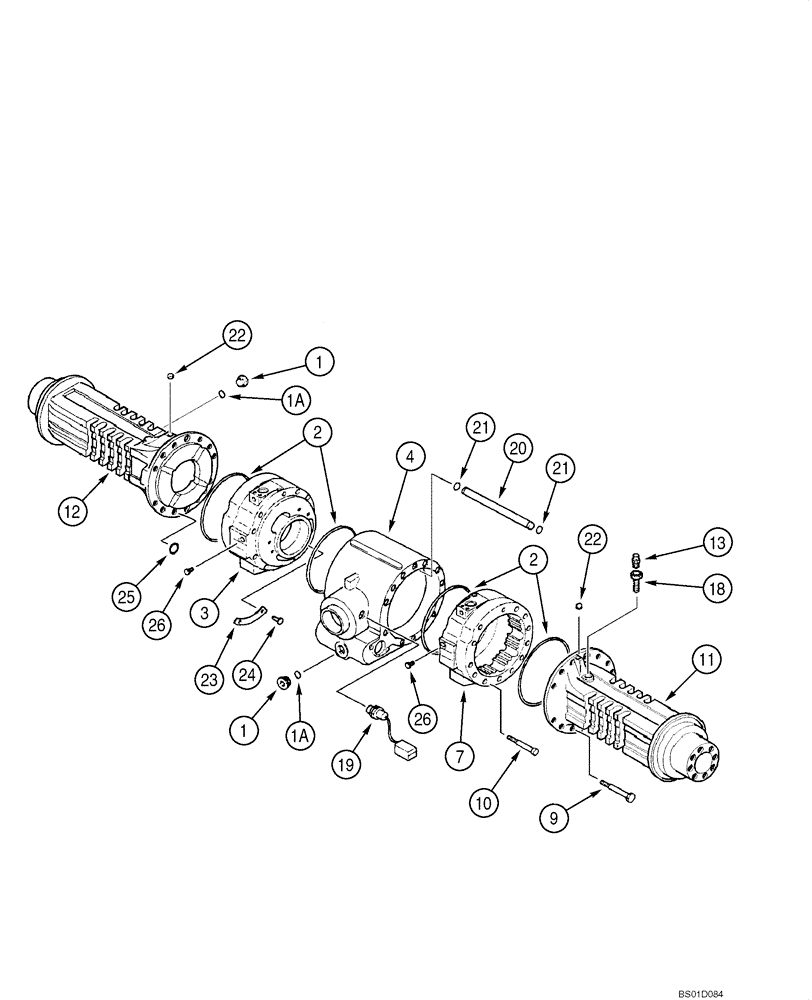

Запчасти Case 585G (06-58) - AXLE, FRONT DRIVE - HOUSING (06) - POWER TRAIN

With Oil Temperature Switch (Ref 19)

1шт.

If Used

1шт.

1

319063A1

AXLE, REAR

AXLE REAR Incl. Figure 06-58 - 06-62, 07-03, 07-04

1шт.

1

87422526R

REMAN-REAR AXLE

585G, 586G, 588G, Reman For New P/N's 279172A1, 319063A1, 87422526,

1шт.

1

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

100557A1

PLUG, DRAIN,M30 x 2

Incl. 1A

2шт.

1a

238-6121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1шт.

2

238-5270

O-RING,0.139" Thk x 8.984" ID, -270, Cl 5, 75 Duro

1-1/16 ID x 3/32

4шт.

3

308039A1

HOUSING

Brake, Right-Hand

1шт.

4

367175A1

HUB

Center

1шт.

7

308038A1

HOUSING

Brake, Left-Hand

1шт.

9

814-14140

BOLT,Hex, M14 x 2 x 140mm, Cl 8.8

22шт.

10

864-12130

HEX SOC SCREW,M12 x 130mm, Cl 8.8

M12 x 130

2шт.

11

358280A1

HUB

Right-Hand, With Breather Port

1шт.

12

358279A1

HUB

Left-Hand, Without Breather Port

1шт.

13

1966149C2

BREATHER

1шт.

18

E135750

AXLE PIN

Breather

1шт.

19

192481A1

SENSOR

Oil Temperature

1шт.

20

346584A1

TUBE

Internal

1шт.

21

346583A1

O-RING

2шт.

22

D142898

PLUG,M10 x 1

10 x 1 mm, If Used

2шт.

23

347959A1

PLATE

2шт.

24

347960A1

RIVET

4,8 x 6 mm

4шт.

25

P2230493

SEAL

8шт.

26

294245A1

CAP

7/16, If Used

2шт.
