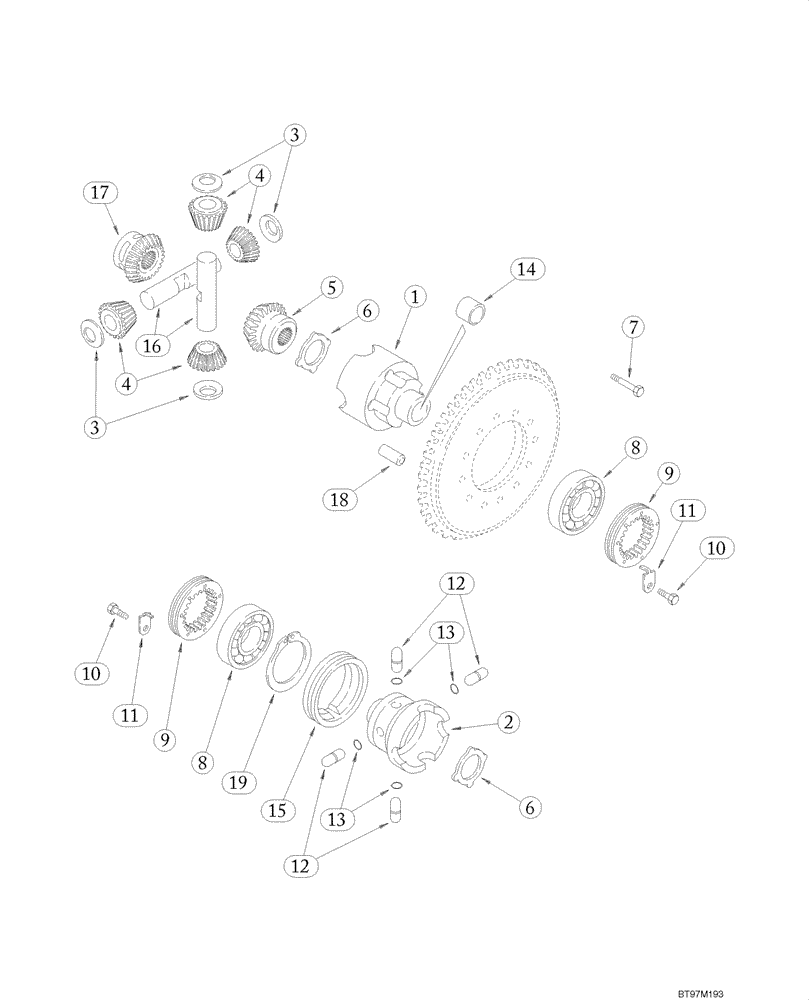

Запчасти Case 585G (06-54) - AXLE, FRONT - DIFFERENTIAL (06) - POWER TRAIN

1

279172A1

AXLE, REAR

AXLE REAR Front Drive, Incl. Figure 06-53 - 06-57, 07-01 - 07-02

1шт.

1

87422526R

REMAN-REAR AXLE

585G, 586G, 588G, Reman For New P/N's 279172A1, 319063A1, 87422526

1шт.

1

87422526C

CORE-REAR AXLE

Return Number

1шт.

1

292268A1

HOUSING

Incl. 1, 2

1шт.

1

NSS

NOT SOLD SEPARAT

Housing, Flange Half

1шт.

2

NSS

NOT SOLD SEPARAT

Housing, Plain Half

1шт.

3

E135777

WASHER

4шт.

4

NSS

NOT SOLD SEPARAT

Gear, Sun, Must Be Replaced As a Set, For Service Order 294192A1, See Below

4шт.

5

NSS

NOT SOLD SEPARAT

Gear, Side, Pinion, Must Be Replaced As a Set, For Service Order 294192A1, See Below

1шт.

6

190469A1

THRUST WASHER

2шт.

7

S300976

BOLT,M12 x 1.5 x 90mm

M12 x 90; 12.9

10шт.

7

294192A1

SET

Differential, Service Replacement, Incl. 3 - 6, 16, 17

1шт.

8

E135785

BEARING

With Cone

2шт.

9

P3034505

NUT

2шт.

10

112486A1

BOLT,Hex, M6 x 12

2шт.

11

175959A1

BRACKET

2шт.

12

292207A1

PIN

4шт.

13

292208A1

O-RING

4шт.

14

190452A1

BUSHING

2шт.

15

191067A1

SLEEVE

1шт.

16

NSS

NOT SOLD SEPARAT

Shaft, Gear, Must Be Replaced As a Set, For Service Order 294192A1, See Below

2шт.

17

NSS

NOT SOLD SEPARAT

Gear, Side, Pinion, Must Be Replaced As a Set, For Service Order 294192A1, See Below

1шт.

18

D143033

DOWEL

12 x 40 mm

2шт.

19

175961A1

RING, LOCKING

RING, LOCK

1шт.

294192A1

SET

Differential, Service Replacement, Incl. 3 - 6, 16, 17

1шт.
