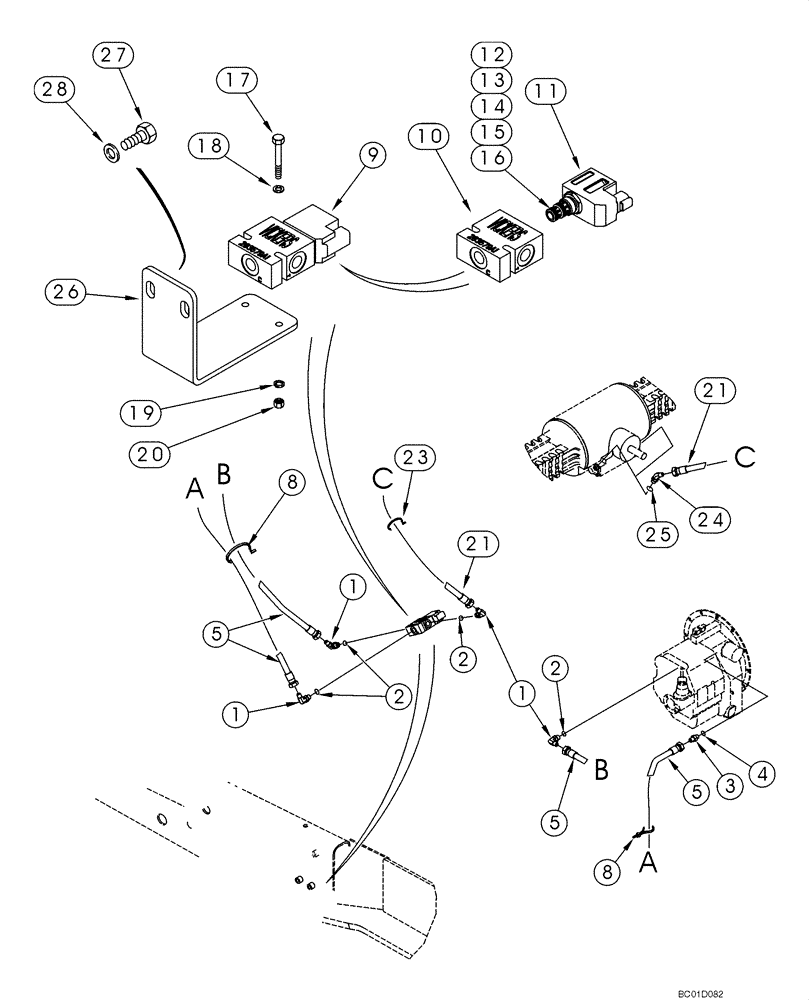

Запчасти Case 585G (06-51) - AXLE, FRONT - DIFFERENTIAL LOCK (06) - POWER TRAIN

Models With Chassis Mounted Differential Lock Solenoid Valve

1шт.

1

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 2

4шт.

2

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

3

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. 4

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

304019A1

HOSE

1200 mm (47-1/4 in), Transmission Supply and Return Lines, Transmission to Solenoid Valve

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

2шт.

9

283579A1

SOLENOID VALVE

Incl. 10 - 16

1шт.

10

297255A1

JUNCTION BOX

1шт.

11

349295A1

SOLENOID VALVE

Replaces 184505A1, Incl. 12 - 16

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

1шт.

14

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

15

NSS

NOT SOLD SEPARAT

Cartridge, Component Parts Not Serviced Separately

1шт.

NSS

NOT SOLD SEPARAT

Nut

1шт.

16

NSS

NOT SOLD SEPARAT

Coil

1шт.

17

814-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8

2шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

19

892-11006

LOCK WASHER,M6

2шт.

20

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

21

304020A1

HOSE

625 mm (24-5/8 in)

1шт.

23

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

24

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. 25

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

26

332406A1

BRACKET

Valve Mounting

1шт.

27

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

28

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.
