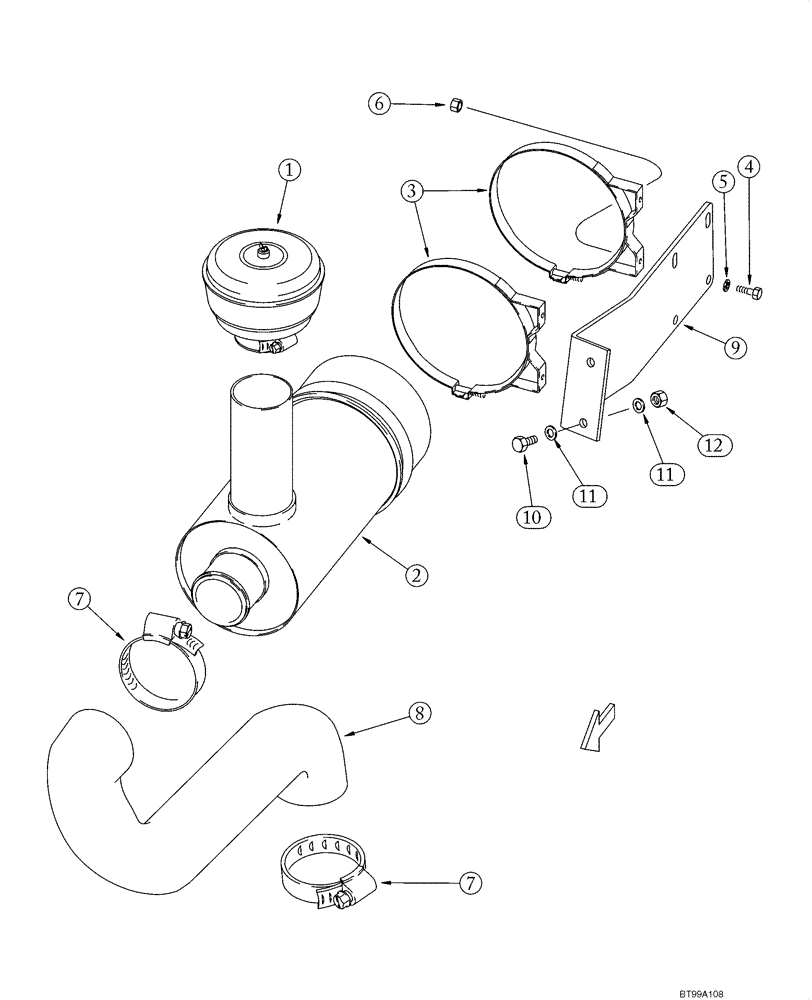

Запчасти Case 585G (02-03) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

193867A1

PRECLEANER

(AIR) See Figure 02-04

1шт.

2

293568A1

AIR CLEANER

See Figure 02-04

1шт.

3

L113910

CLAMP

2шт.

4

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

Replaces 614-10020 M10 x 20 Bolt Used On Some Models

4шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

6

125-10002

SPECIAL NUT,3/8"-16, G5, LH

Replaces 829-1410 M10 Nut Used On Some Models; If Used

4шт.

6

425-106

NUT,3/8"-16, Cl 5

Replaces 125-10002 LH Thread Nut used on some Models

4шт.

7

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

2шт.

8

353039A1

INTAKE AIR HOSE,76.20 mm ID x 375.00 mm, SAE J200

1шт.

9

353040A2

BRACKET

1шт.

10

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

11

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

12

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
