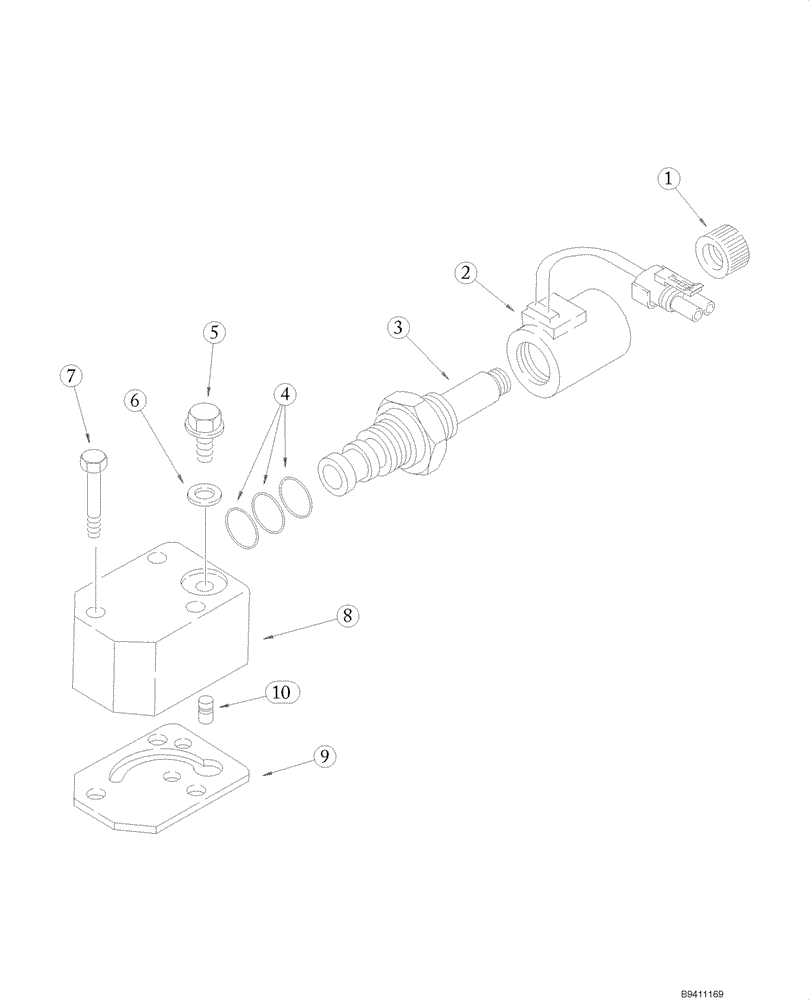

Запчасти Case 585G (06-38) - TRANSMISSION ASSY (130787A2, A3) (4WD) - SOLENOID VALVE (06) - POWER TRAIN

*

4 Wheel Drive

1шт.

1

130787A3

TRANSMISSION

4 Wheel Drive, For Details, See Figure 06-28, Incl. 06-28 - 06-38; No Longer Available, Order 329082A3, Figure 6-39 - 6-49

1шт.

1

130787A3R

REMAN-TRANSMISSION

Remanufactured Transmission

1шт.

1

130787A3C

CORE-TRANSMISSION

Return Number

1шт.

1

190432A1

SOLENOID

Incl. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

Nut

1шт.

2

NSS

NOT SOLD SEPARAT

Coil

1шт.

3

NSS

NOT SOLD SEPARAT

Valve, Solenoid

1шт.

4

NSS

NOT SOLD SEPARAT

Kit, Seal, Incl. (1) Each Of 238-5014, 238-5015, 237-6010, Not Serviced Separately, Order 190432A1

1шт.

5

181100A1

PLUG,1/8 CAS x 8

2шт.

6

934667R1

SEALING RING,M10 x 14 x 1

2шт.

7

814-8060

BOLT,Hex, M8 x 1.25 x 60mm, Cl 8.8

3шт.

8

190429A1

HOUSING

Solenoid Valve

1шт.

9

190430A1

GASKET

1шт.

10

190431A1

VALVE

Installed Between Ref. 8 and Ref. 9

1шт.
