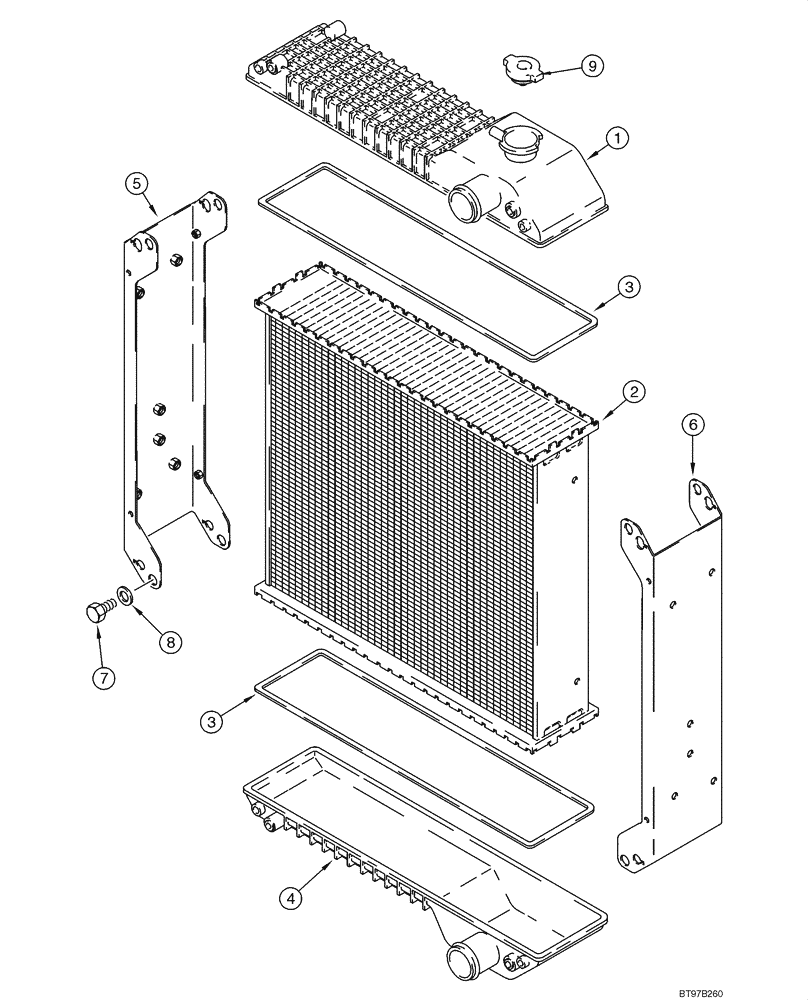

Запчасти Case 585G (02-02) - RADIATOR ASSY (02) - ENGINE

234876A2

RADIATOR

Engine Cooling, Incl. 1 - 10

1шт.

1

175161A1

TANK

Upper

1шт.

2

181148A1

CORE

Core

1шт.

3

175163A1

GASKET,3.3mm Thk

2шт.

4

175162A1

RESERVOIR

Lower

1шт.

5

175164A1

SUPPORT

Right Hand

1шт.

6

175165A2

SUPPORT

Left Hand, Replaces 175165A1

1шт.

7

336199

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

Replaces 614-8012

8шт.

8

86624185

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

9 x 17 x 1,6 mm, Replaces 895-11008

8шт.

9

A170241

RADIATOR CAP

15 psi

1шт.

10

NSS

NOT SOLD SEPARAT

Seal, Bracket, Not Illustrated

2шт.
