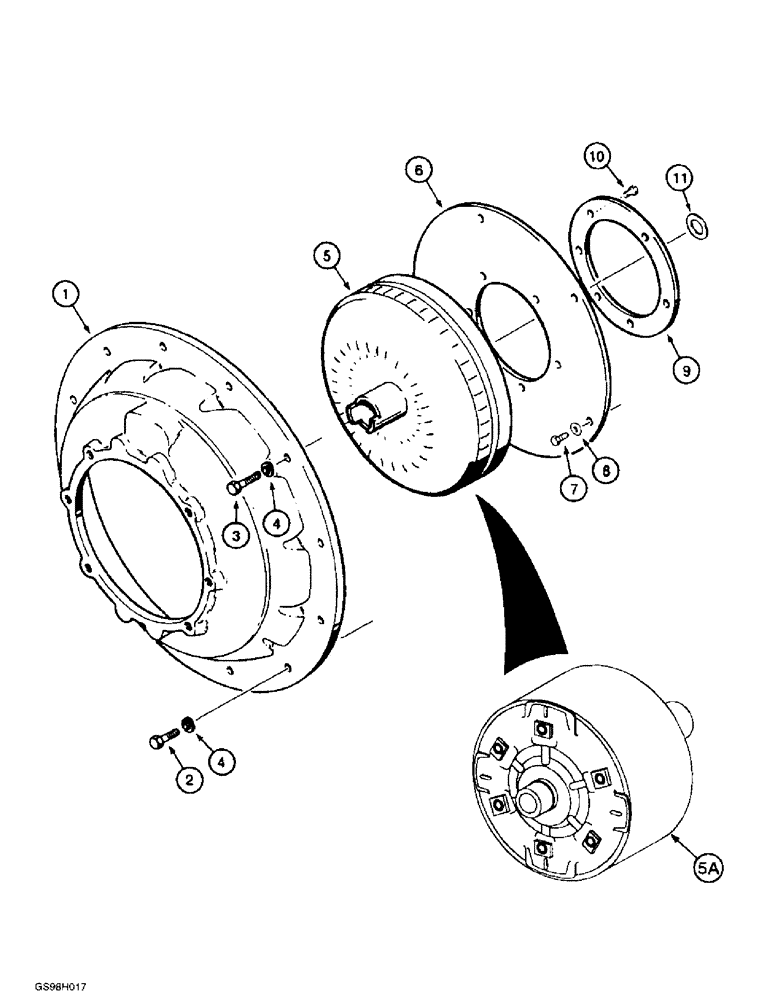

Запчасти Case 586E (6-02) - TORQUE CONVERTER AND HOUSING (06) - POWER TRAIN

1

D48445

HOUSING

HOUSING - torque converter

1шт.

2

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, , Full Thd Hex, M10 x 30, 8.8

11шт.

3

613-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

BOLT - hex, full threads, 10 - 1.5 x 35 mm

1шт.

4

892-11010

LOCK WASHER,M10

LOCK WASHER, M10

12шт.

5

D81693

CONVERTER

CONVERTER - torque, transmission, no longer available, order converter 103293A1, Ref. 5A

1шт.

5a

103293A1

CONVERTER

CONVERTER - torque, transmission

1шт.

5a

103293A1R

REMAN-TORQUE CONVERT

ER Remanufactured, Torque Converter

1шт.

5a

103293A1C

CORE-TORQUE CONVERTR

Core Torque Converter, Return Part Number

1шт.

6

D131147

PLATE

PLATE - torque converter, hardened

1шт.

7

121-103

BOLT,Lock Place, Hex, 5/16" - 18 x 5/8", Gr 8

BOLT - hex, self-locking, 5/16 NC x 5/8 inch, grade 8

6шт.

8

A15672

WASHER,8.74mm ID x 17.48mm OD x 1.52mm Thk

WASHER - flat, hardened, special

6шт.

9

D81592

PLATE

PLATE - torque converter drive

1шт.

10

121-203

BOLT,Lock Place, Hex, 3/8" - 24 x 1/2", Gr 8

BOLT - hex, self-locking, 3/8 NF x 1/2 inch, grade 8

6шт.

11

D135817

SPACER

SPACER - torque converter, 9/16 inch thick

1шт.
