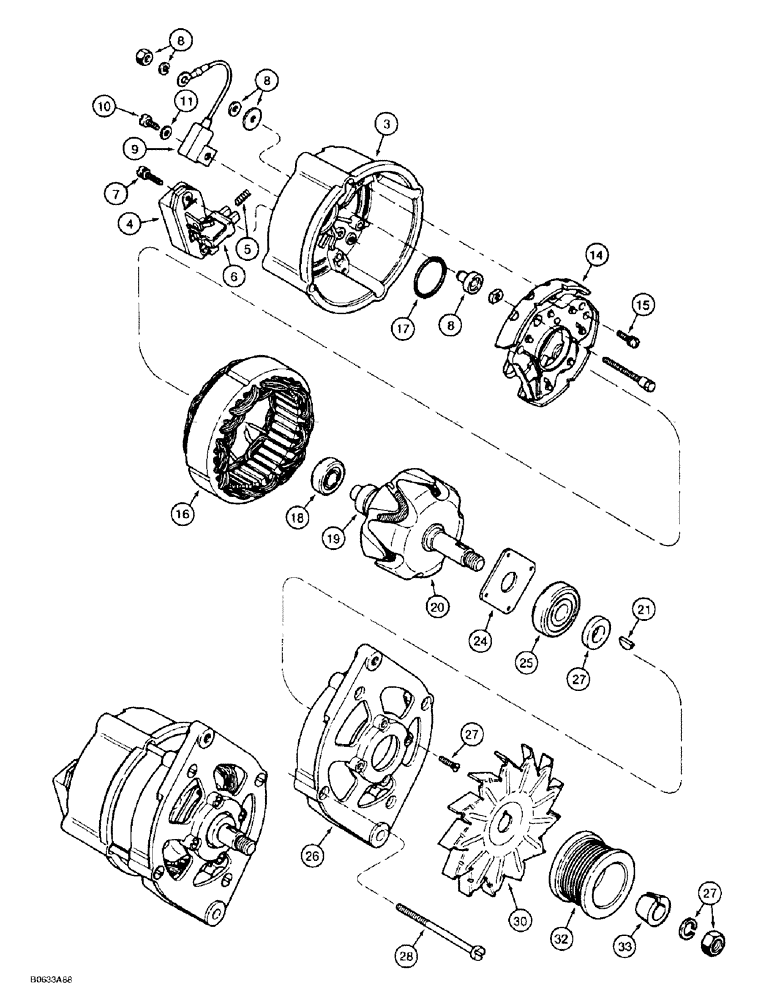

Запчасти Case 586E (4-02) - A186125 ALTERNATOR (04) - ELECTRICAL SYSTEMS

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, 65 ampere, Bosch B120402295, no longer available, order alternator assembly A187873, parts list Figure 4-3A, Includes: Ref. 3 - 28

1шт.

AR186125GV

ALTERNATOR

Value

1шт.

AR186125

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

AC186125

CORE-ALTERNATOR

Return Number

1шт.

3

A186187

HOUSING

HOUSING - collector ring end

1шт.

4

A186189

REGULATOR

REGULATOR - voltage, Includes: Ref. 5 and 6

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - compression

2шт.

6

NSS

NOT SOLD SEPARAT

BRUSH - alternator

1шт.

7

A186194

SCREW,M4 x 18mm

SCREW, hex flange, special

2шт.

8

3079135R1

TERMINAL CONNECTOR

KIT - terminal

1шт.

9

A186195

CAPACITOR

CAPACITOR - alternator

1шт.

10

625589C1

SCREW,Slot Cheese Hd, M5 x .8 x 10, 8.8

SCREW - special, capacitor retaining

1шт.

11

A186196

WASHER

WASHER - special

1шт.

14

A186197

RECTIFIER

BRIDGE - rectifier, includes hardware

1шт.

15

A186188

SCREW

BOLT - with washer, rectifier bridge retaining

3шт.

16

A186192

STATOR

STATOR - alternator

1шт.

17

3079386R1

O-RING

O-RING - bearing

1шт.

18

A186186

BALL BEARING,12mm ID x 32mm OD x 10mm W

BEARING - ball, rotor, collector ring end

1шт.

19

A186185

RING

RING - collector

1шт.

20

A186184

ROTOR

ROTOR - alternator

1шт.

21

NSS

NOT SOLD SEPARAT

KEY - rotor, in 3078897R1 kit, Ref. 27, not used in this application

1шт.

24

3078379R1

COVER

PLATE - bearing retaining

1шт.

25

A186183

BALL BEARING,17 mm ID x 47 mm OD x 14 mm

BEARING - ball, rotor, drive end

1шт.

26

A186182

HOUSING

HOUSING - drive end

1шт.

27

3078897R1

SET OF PARTS

KIT - rotor retaining

1шт.

28

A186193

BOLT,Pan, Cross Recess Phillips, M5 x 110mm

BOLT - slotted, special

4шт.

30

221425R1

FAN

FAN - alternator

1шт.

32

J908586

PULLEY - drive, no longer available, order J908560 pulley and J908563 retainer as a matched set

1шт.

32

J908560

PULLEY

PULLEY - drive

1шт.

33

J903333

RETAINER

RETAINER - pulley, no longer available, order J908560 pulley and J908563 retainer as a matched set

1шт.

33

J908563

RETAINER

RETAINER - pulley

1шт.
