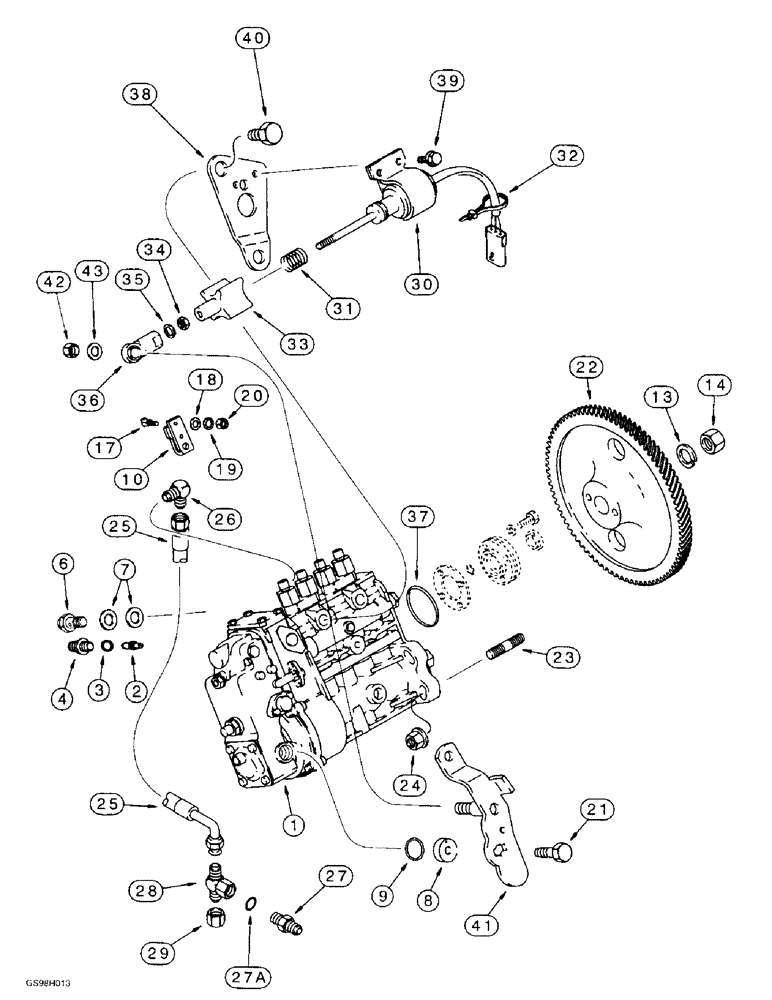

Запчасти Case 586E (3-11A) - FUEL INJECTION PUMP AND DRIVE, P.I.N. JJG0251722 AND AFTER, 4-390 EMISSIONS CERTIFIED ENGINE (03) - FUEL SYSTEM

1

JR930143

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured, North America only, component parts shown on this figure do not apply to the remanufactured assembly, Includes: Ref. 2 - 21

1шт.

1

JC930143

CORE-INJECTION PUMP

Return Number

1шт.

1

J930143

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, without aneroid, Includes: Ref. 2 - 21

1шт.

2

A77720

PIN

- timing

1шт.

3

J928981

LOCK WASHER

WASHER - lock, timing plug

1шт.

4

J912888

PLUG

- timing

1шт.

6

J932096

VALVE

- overflow

1шт.

7

933697R1

SEALING RING,M10 x 13.5 x 1

WASHER - valve sealing

2шт.

8

691292C1

RETAINER

HOUSING - spring return

1шт.

9

680187C1

O-RING,2.5mm Thk x 9mm ID

- sealing, special

1шт.

10

1808728C1

LEVER

- throttle control

1шт.

13

A77775

LOCK WASHER

- lock

1шт.

14

A41852

LOCK NUT

- hex, self-locking

1шт.

17

1808822C1

THUMB SCREW,M6 x 26mm

BOLT - throttle lever

1шт.

18

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

20

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

1шт.

21

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9

1шт.

22

J931450

PINION

GEAR - fuel pump

1шт.

23

J915036

STUD

- pump mounting, 55 mm (2-5/32 in)

4шт.

24

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

- hex flange, 10 mm - 1.5

4шт.

25

J918536

FLEXIBLE HOSE,295.00 mm

FUEL HOSE 295.00 mm

1шт.

26

A77512

ELBOW

- 90 degree

1шт.

27

J941472

FITTING

NIPPLE - hex, 7/16-20 inch flare x 10 - 1.0 mm str thread

1шт.

27a

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

- 8.1 ID x 1.6 mm wide

1шт.

28

J933291

TEE

- 7/16-20 flare x flare x fem swivel

1шт.

29

218-752

CAP,37 Degree, 7/16"-20

- hex, 7/16-20 inch

1шт.

30

J932529

SOLENOID

- fuel shutoff, 12 volt, Includes: Ref. 31 - 36

1шт.

31

NSS

NOT SOLD SEPARAT

SPRING - return, plunger

1шт.

32

NSS

NOT SOLD SEPARAT

STRAP - tie, Serial Range: boot-solenoid

1шт.

33

NSS

NOT SOLD SEPARAT

BOOT - protective, plunger

1шт.

34

NSS

NOT SOLD SEPARAT

NUT - hex, jam

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - lock

1шт.

36

NSS

NOT SOLD SEPARAT

JOINT - ball

1шт.

37

J930993

O-RING

- sealing

1шт.

38

J930590

SUPPORT

BRACKET - solenoid mounting

1шт.

39

845-6012

BOLT,Hvy Hex, M6 x 12mm, Cl 8.8

- heavy hex flange, 6 - 1.0 x 12 mm

2шт.

40

J929456

SCREW,Hex, M16 x 1.5 x 12mm, Gr 8.8

BOLT - hex, 16 - 2.0 x 12 mm

2шт.

J802998

PACKAGE,SERVICE

KIT - pump shutoff lever, Includes: Ref. 41 - 43

1шт.

41

NSS

NOT SOLD SEPARAT

LEVER - pump shutoff

1шт.

42

832-41306

NUT,M6 x 1, Cl 10

NUT - hex, self-locking, 6 mm - 1.0, class 10

1шт.

43

J934022

WASHER

- flat, special

1шт.
