Запчасти Case 586E (3-06) - FUEL INJECTION SYSTEM, P.I.N. JJG0251722 AND AFTER, 4-390 ENGINE (03) - FUEL SYSTEM

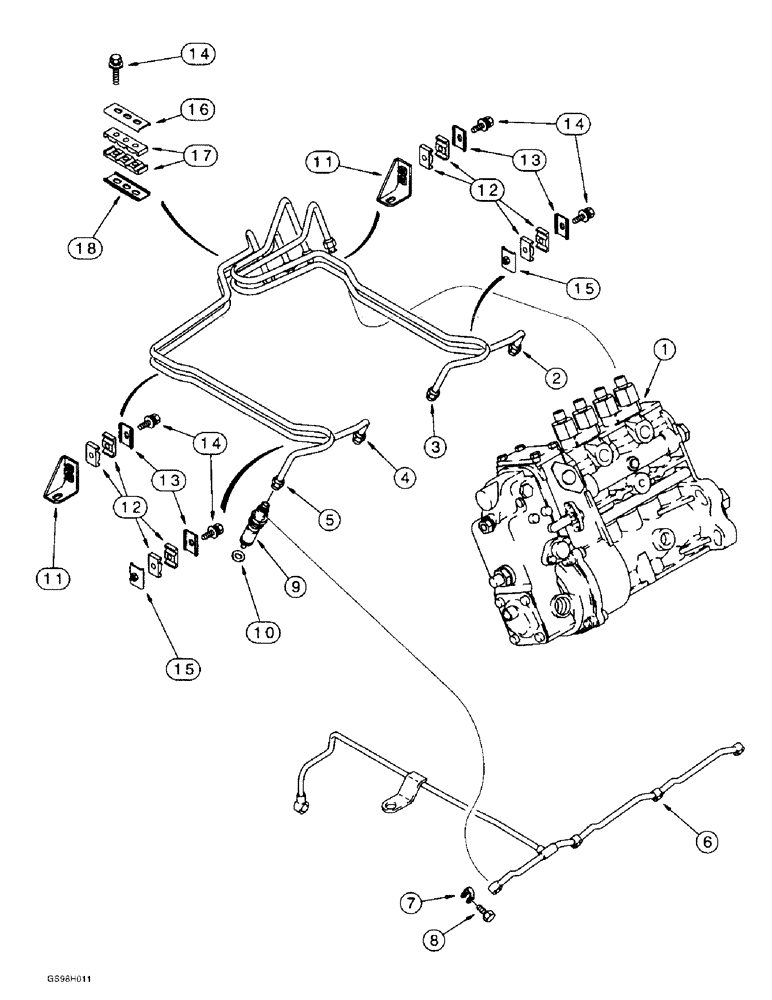

Схема запчастей Case 586E - (3-06) - FUEL INJECTION SYSTEM, P.I.N. JJG0251722 AND AFTER, 4-390 ENGINE (03) - FUEL SYSTEM
5
10
11
2
14
12
13
11
7
15
9
13
14
6
18
15
12
1
8
3
4
17
16
14

Артикул

Название

Примечание

Количество

1

J930143

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection without aneroid, parts list Figure 3-11A

1шт.

2

J932157

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 1 cylinder

1шт.

3

J932158

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 2 cylinder

1шт.

4

J932159

FUEL TUBE,1.8 mm ID x 6.35 mm OD x 750 mm L

TUBE - fuel injector, No. 3 cylinder

1шт.

5

J932160

FUEL TUBE,750 mm L

TUBE - fuel injector, No. 4 cylinder

1шт.

6

J927633

TUBE

- manifold, fuel

1шт.

7

J903380

SEAL

- connector

4шт.

8

J905307

BANJO BOLT,M6 x 1 x 14.30mm

BOLT, BANJO, , Drain, Special M6 x 1 x 14.3

4шт.

9

J930573

INJECTOR ASSY.

NOZZLE ASSEMBLY - fuel injection, parts list Figure 3-13A

4шт.

10

J906659

SEAL

- injector nozzle, 7 mm injector tip

4шт.

11

J920414

BRACE

- fuel tube

2шт.

12

J917746

CLAMP

- fuel tube

8шт.

13

J904711

SUPPORT

BRACKET - fuel tube

4шт.

14

J920854

CAPTIVE WASHER SCREW,HWH, M5 x 0.8 x 24.5mm, Cl 8.8

SCREW, Hex Hd, M5 x .8 x 20, w/LW

7шт.

15

J917717

BRACE

BRACKET - fuel tube

2шт.

16

J918785

BRACE

- tube

1шт.

17

J918786

FIXING BRACKET

CLAMP - vibration

2шт.

18

J918784

CLAMP

BRACE - tube

1шт.

Выбрано товаров: 18
