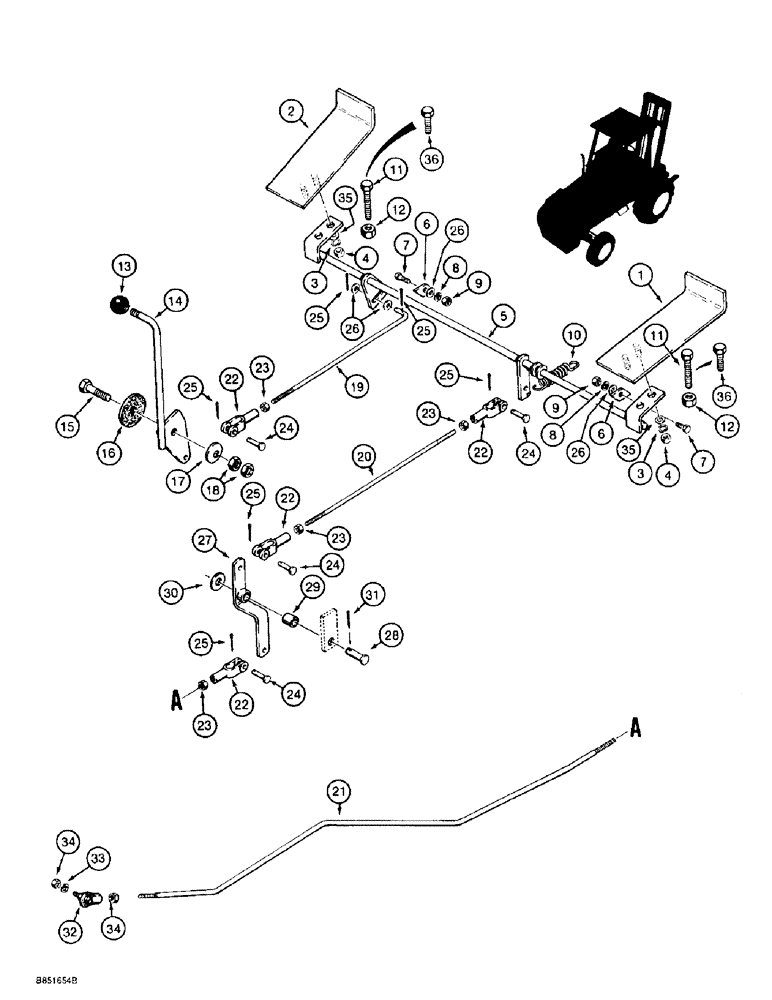

Запчасти Case 586E (3-02) - THROTTLE CONTROL LINKAGE, PRIOR TO P.I.N. JJG0251722 (03) - FUEL SYSTEM

1

D76903

PEDAL

- foot throttle

1шт.

2

D76904

PEDAL

- foot throttle

1шт.

3

492-11038

LOCK WASHER,3/8"

4шт.

4

425-106

NUT,3/8"-16, Cl 5

4шт.

5

R35649

SHAFT

- pedal

1шт.

6

D67902

STRIP

PLATE - shaft retaining

2шт.

7

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

D120911

SPRING

- throttle return, no longer available, order spring 230973A1 below

1шт.

10

230973A1

SPRING,Extension, 23.876mm OD x 93.47mm L

- throttle return

1шт.

11

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

No longer used, order Ref 36 below Hex, 3/8"-16 x 2 1/2", G5, Full Thd

2шт.

12

425-106

NUT,3/8"-16, Cl 5

Used with Ref. 11 bolt only 3/8"-16, G5

2шт.

13

D59912

KNOB

- lever

1шт.

14

R35661

LEVER

- hand throttle

1шт.

15

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

16

1342374C1

DISC

- friction, throttle lever (Replaces disc D139323)

1шт.

17

R14771

WASHER

SPRING - Belleville, throttle lever

1шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

19

R35667

ROD

- hand throttle to pedal shaft

1шт.

20

D68927

THREADED ROD

ROD -, Serial Range: connecting-pivot

1шт.

21

D132450

ROD

- pivot to injection pump

1шт.

22

213-125

ADJUSTABLE CLEVIS,5/16" - 32

CLEVIS - adjustable, 5/16 inch NF, Throttle rods

4шт.

23

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

4шт.

24

427-5094

CLEVIS PIN,7.92mm OD x 23.88mm L

4шт.

25

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

26

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

4шт.

27

D77235

PIVOT

LEVER - throttle rods, pivot

1шт.

28

427-8136

CLEVIS PIN,1/2" x 1.360"

PIN - clevis, 1/2 x 1-3/8 inch, hardened

1шт.

29

A141259

BUSHING

- throttle rod pivot

1шт.

30

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

31

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

32

A10329

BALL JOINT,1/4" - 28 x 1"

JOINT - ball, 1/4 inch NF, adjustable

1шт.

33

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

34

425-114

NUT,1/4"-28, G5

2шт.

35

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

36

113-2263

PREV TORQUE BOLT,Locking, 3/8"-16 x 1 1/4", G5

BOLT - hex, self-locking, 3/8 NC x 1-1/4 inch

2шт.
