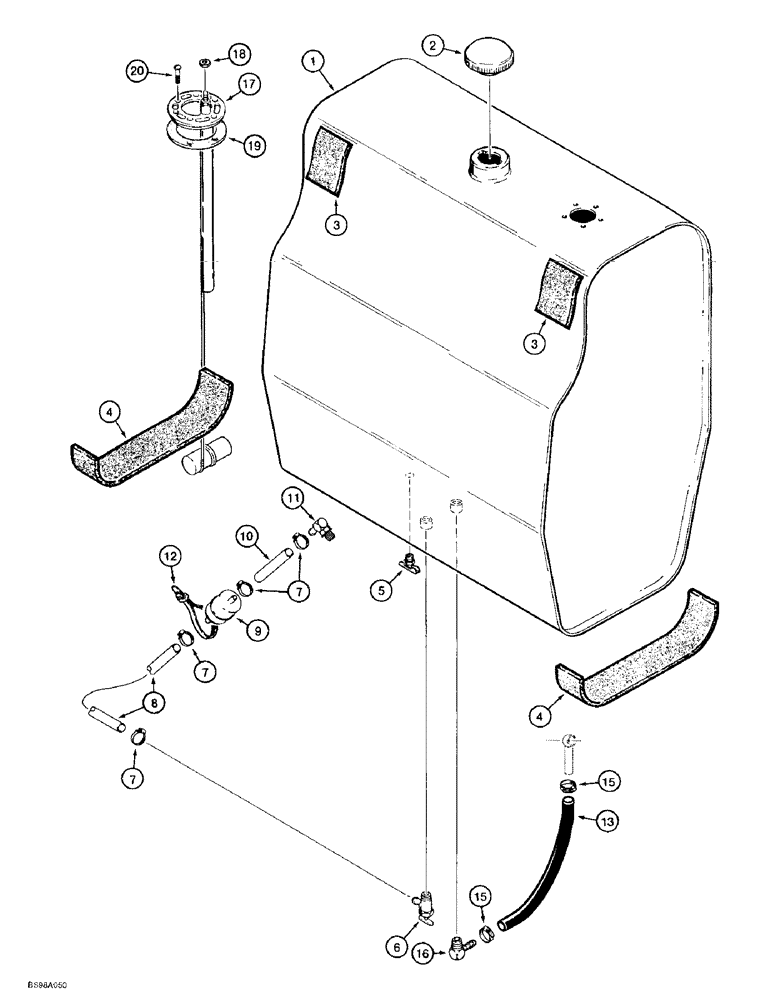

Запчасти Case 586E (3-01) - FUEL TANK AND FUEL LINES, P.I.N. JJG0251722 AND AFTER (03) - FUEL SYSTEM

1

D124538

FUEL TANK

TANK - fuel, diesel

1шт.

2

D93757

CAP

- fuel (Replaces cap A51390)

1шт.

3

D66072

SEALING STRIP

- cushion, rear, for front strip see page 2-7, Ref. 8

2шт.

4

D93351

FOAM

STRIP - sponge rubber, 305 mm (12 in) long, cut from D86157 bulk strip, see below

2шт.

5

217-81

VALVE

- drain, 1/8 inch PT

1шт.

6

283682A1

VALVE

- fuel shutoff

1шт.

7

196252A1

CLAMP

- hose

4шт.

8

283681A2

HOSE,12.70 mm ID x 536.00 mm, SAE 30R7

12.70 mm ID x 536.00 mm, SAE 30R7

1шт.

9

194199A1

FUEL FILTER

FILTER - fuel, in-line, in-line

1шт.

10

304491A1

FUEL HOSE,12.70 mm x 152.40 mm, SAE 30R7

12.70 mm x 152.40 mm, SAE 30R7

1шт.

11

217-372

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/4" Male NPTF

ELBOW - 90 degree, 1/2 stem end x 1/4 inch PT

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

13

283680A1

RADIATOR HOSE,9.53 mm ID x 1067.00 mm

9.53 mm ID x 1067.00 mm

1шт.

15

1348264C1

HOSE CLAMP

CLAMP - hose, 3/8 inch

2шт.

16

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

- 90 degree, 3/8 stem end x 1/4 inch PT

1шт.

17

D83480

TRANSMITTER

SENDER - fuel level gauge

1шт.

18

193-1000

NUT,Keps, w/LW,#10-32

- hex, with external tooth lock washer, No. 10 NF

1шт.

19

528359R4

GASKET,3.05mm Thk

- fuel level sender (Replaces gasket A11822)

1шт.

20

D75465

SCREW,#10 - 32 x 5/8"

- self-tapping, hex washer head, special, No. 10 NF x 5/8 inch

5шт.

D86157

RUBBER

STRIP - sponge rubber, 6 (1/4) x 100 (4) x 590 mm (23-1/4 inch) long

1шт.
