Запчасти Case 586E (2-38) - FLYWHEEL AND HOUSING (02) - ENGINE

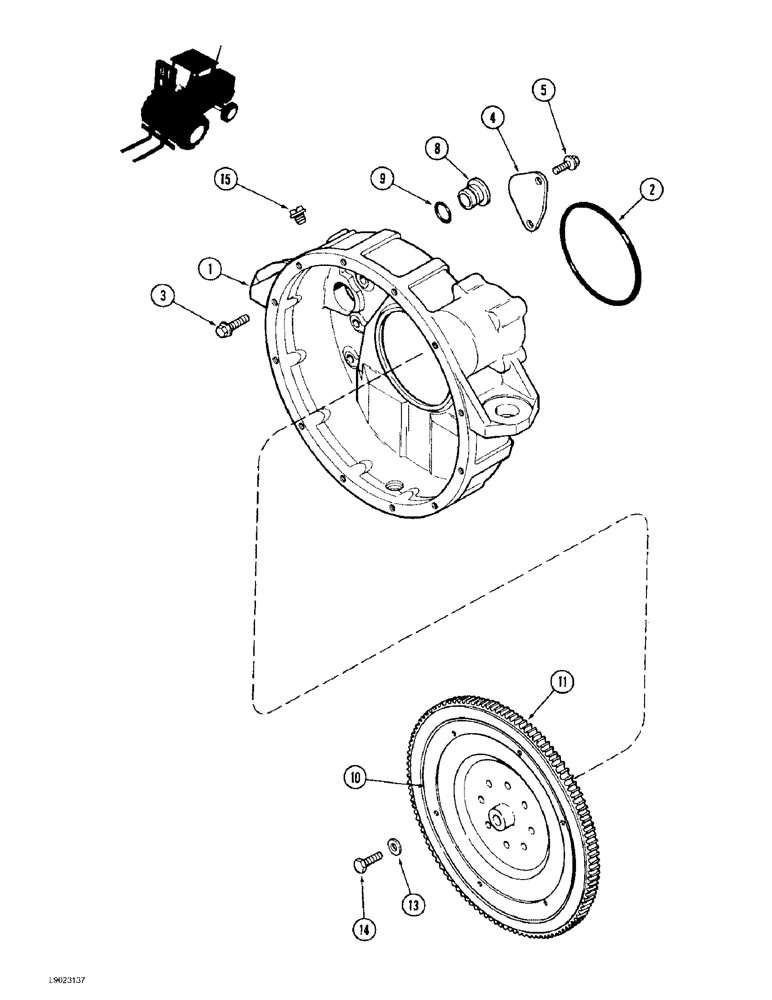

Схема запчастей Case 586E - (2-38) - FLYWHEEL AND HOUSING (02) - ENGINE
1
11
8
5
15
3
13
14
2
10
9
4

Артикул

Название

Примечание

Количество

1

J931714

HOUSING

- flywheel

1шт.

2

J912473

SEAL,157mm ID x 163.18mm OD x 7.03mm Thk

O-RING - flywheel, Serial Range: housing-block

1шт.

3

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

- heavy hex flange, 12 - 1.75 x 40 mm, class 10.9

8шт.

4

J925234

PLATE

- cover (Replaces plate J908095)

1шт.

5

J912072

SELF-TAP SCREW

SCREW - self tapping, hex washer head, special, 8 - 1.25 x 15 mm (Replaces bolt J902735)

2шт.

8

J910248

PLUG

- flywheel housing

1шт.

8

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

Magnetic Drain Pug

1шт.

8

L113178

PLUG

Drain Plug W/Cotterpin

1шт.

Cotterpin 32-1416

1шт.

9

238-5212

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

1шт.

10

J910684

FLYWHEEL WITH GEAR

FLYWHEEL ASSEMBLY - crankshaft, Includes: Ref. 11

1шт.

11

J901774

GEAR,Flywheel

GEAR - ring

1шт.

13

J900269

WASHER,12.76mm ID x 25.5mm OD x 1.65mm Thk

- flat, special, flywheel bolt

8шт.

14

J901395

BOLT,Hex, M12 x 1.25 x 32mm, Cl 12.9

BOLT - hex, special, 12 - 1.25 x 32 mm

8шт.

15

353-225

PLUG,Sltd Hd, 3/4"-16

- slotted hex, 3/4 inch NF

1шт.

Выбрано товаров: 15
