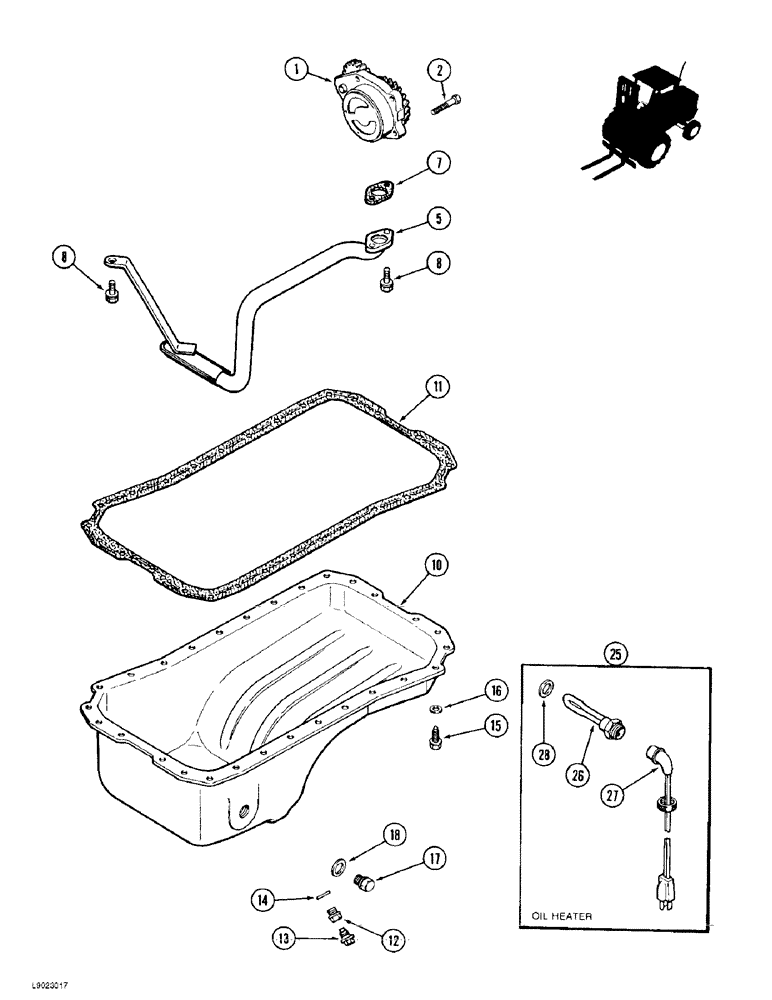

Запчасти Case 586E (2-24) - OIL PUMP AND OIL PAN, PRIOR TO P.I.N. JJG0251722, 4-390 ENGINE (02) - ENGINE

1

J930336

PUMP, ENGINE OIL

PUMP - oil, engine, new, engine (Replaces pumps J906413 and J914005)

1шт.

JR930336

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only (Replaces remanufactured pump assembly JR914005)

1шт.

JC926202

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

JC914005

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP RETURN NUMBER - For N.A. only

1шт.

2

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

BOLT, HH, CL 8.8, M8 x 1.25 x 30, Full Thd

4шт.

5

J905206

TUBE,1" OD

TUBE - suction, oil

1шт.

7

J914383

GASKET

GASKET - mounting, oil sunction tube (Replaces gasket J905468)

1шт.

When kit is ordered, J902425 washer (Ref. 28) must also be ordered.

1шт.

8

845-8016

BOLT,Hvy Hex, M8 x 16mm, Cl 8.8

BOLT - heavy hex flange, 8 - 1.25 x 16 mm

3шт.

10

J901049

PAN, ENGINE OIL

PAN, OIL PAN - oil, engine

1шт.

11

NSS

NOT SOLD SEPARAT

GASKET - oil pan, order kit A77673

1шт.

When kit is ordered, J902425 washer (Ref. 28) must also be ordered.

1шт.

13

J911638

PLUG,M18 x 1.5

PLUG - drain, oil, magnetic, 18 mm, no longer available, order plug J924147, Ref. 8 on Figure 2-25A

1шт.

14

J920773

SEALING WASHER

WASHER - sealing, drain plug (Replaces washer J900216)

1шт.

When kit is ordered, J902425 washer (Ref. 28) must also be ordered.

1шт.

15

J907860

FLANGE BOLT,Hex, M8 x 25mm, Spcl

BOLT - hex flange, special, 8 - 1.25 x 25 mm

28шт.

16

J910266

LOCK WASHER

WASHER - spring, Belleville, oil pan bolt (Replaces washer J907537)

28шт.

17

J924148

PLUG,M22 x 1.5

PLUG - hex magnetic, special, 22 mm - 1.5 (Replaces plug J904386)

1шт.

18

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug

1шт.

A77673

GASKET KIT

KIT - gasket, oil pan

1шт.

When kit is ordered, J902425 washer (Ref. 28) must also be ordered.

1шт.

25

A77490

KIT

KIT - heater, engine oil, Includes: Ref. 26 and 27

1шт.

When kit is ordered, J902425 washer (Ref. 28) must also be ordered.

1шт.

26

NSS

NOT SOLD SEPARAT

ELEMENT - heater, 120 volt, engine oil

1шт.

27

196466A1

ELECTRIC CABLE

CABLE - engine block heater (Replaces cable J905113), engine oil heater

1шт.

28

J902425

SEALING WASHER,22.2mm ID x 26.9mm OD x 1.75mm Thk

WASHER - sealing, plug, engine oil heater

1шт.
