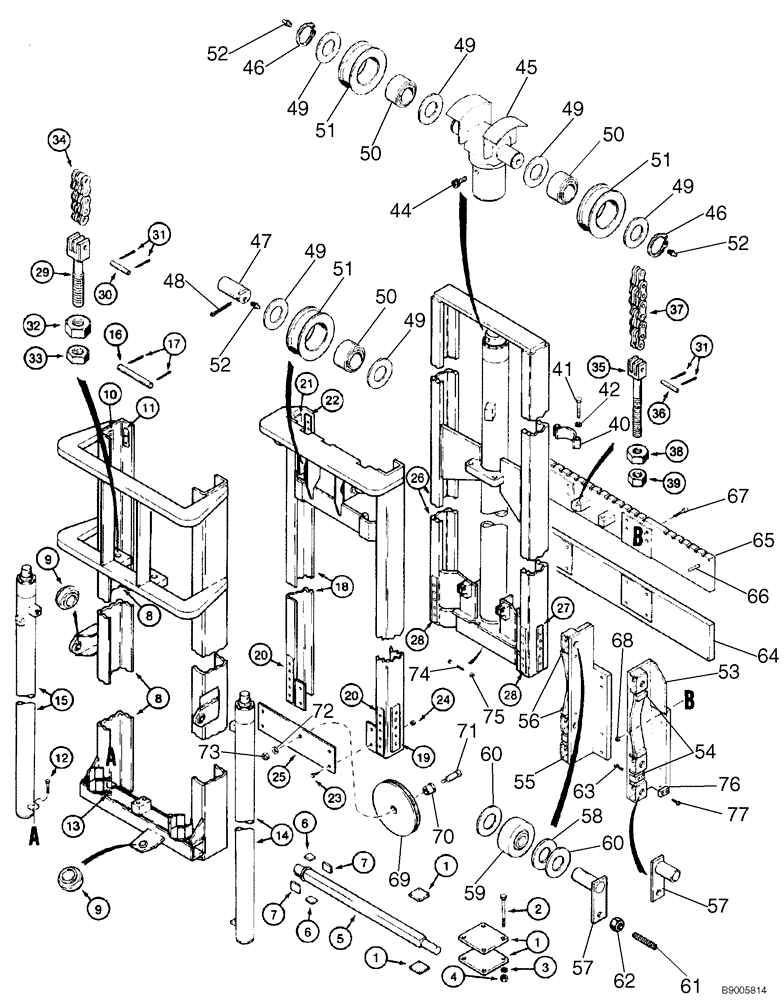

Запчасти Case 586E (9-108) - 6.4 M (21 FOOT) FREE LIFT MAST FOR 586E, WITH 31 DEGREE FORWARD MAST TILT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
D147885
MAST ASSEMBLY
- forklift, 6.4 m (21 foot), machinery Ref., order from machinery price list, Includes: Ref. 1 - 39 and Ref. 40 - 77 on Figure 9-110
1шт.
For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.
1шт.
1
D88745
LARGE PLATE
PLATE - trunnion bar end (Replaces plate D142420)
4шт.
2
413-548
BOLT,Hex, 5/16" - 18 x 3", Gr 5
- hex, 5/16 NC x 3 inch
8шт.
4
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
8шт.
5
D75934
BAR
- trunnion
1шт.
6
D40841
LARGE PLATE
PLATE - wear, 50 (1-61/64) x 51 (2) x 6.4 mm (1/4 inch), horizontal
4шт.
7
D40840
LARGE PLATE
PLATE - wear, 62.3 (2-29/64) x 51 (2) x 6.4 mm (1/4 inch), vertical
4шт.
D148906
FRAME ASSY
FRAME ASSEMBLY - mast, outer, Includes: Ref. 8 - 11
1шт.
For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.
1шт.
8
NSS
NOT SOLD SEPARAT
FRAME - outer, order frame assembly D148906
1шт.
9
D40843
BUSHING,25.4mm ID x 38.1mm OD x 24.38mm L
- self-aligning
3шт.
10
D55411
STRIP
PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long
2шт.
11
D55409
STRIP
PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long
4шт.
12
413-648
BOLT,Hex, 3/8" - 16 x 3", Gr 5
2шт.
13
232-1446
NUT,3/8"-16, GC
NUT, LOCK, 3/8"-16, GC
2шт.
14
REF
INSTRUCTION
CYLINDER ASSEMBLY - lift, right-hand, parts list Figure 8-40
1шт.
15
REF
INSTRUCTION
CYLINDER ASSEMBLY - lift, left-hand, parts list Figure 8-40
1шт.
16
D148911
PIN
- retaining, cylinder
2шт.
17
432-1220
COTTER PIN,3/16" x 1 1/4"
3/16" x 1 1/4"
4шт.
D148900
FRAME ASSY
FRAME ASSEMBLY - mast, center, Includes: Ref. 18 - 25
1шт.
For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.
1шт.
18
NSS
NOT SOLD SEPARAT
FRAME - center, order frame assembly D148900
1шт.
19
D55412
STRIP
PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long
2шт.
20
D55410
STRIP
PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long
4шт.
21
D55411
STRIP
PLATE - wear, 3 (1/8) thick x 152 mm (6 inch) long
2шт.
22
D55409
STRIP
PLATE - wear, 5 (3/16) thick x 152 mm (6 inch) long
4шт.
23
413-820
BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5
- hex, 1/2 NC x 1-1/4 inch
4шт.
24
425-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam, 1/2 inch NC
4шт.
25
D148908
PLATE
- reinforcement
1шт.
D148898
FRAME ASSY
FRAME ASSEMBLY - mast, inner, Includes: Ref. 26 - 28
1шт.
For replacement, call C.A.M., and provide the following information: model number, machine and mast serial numbers, and mast specifics (number of lift cylinders, travel height, and degree of tilt), before ordering.
1шт.
26
NSS
NOT SOLD SEPARAT
FRAME - inner, order frame assembly D148898
1шт.
27
D27362
WEAR PAD
PLATE - wear, 3 (1/8) thick x 254 mm (10 inch) long
2шт.
28
D27365
PAD
PLATE - wear, 5 (3/16) thick x 254 mm (10 inch) long
4шт.
29
N7701
ANCHOR
BOLT - special, chain anchor, 1 inch NF, outer frame
2шт.
30
N7700
PIN
- chain connecting, outer frame
4шт.
31
432-812
COTTER PIN,3/4" OAL x 1/8" W
PIN, SPLIT (COTTER), 1/8" x 3/4"
16шт.
32
429-1116
NUT,1"-14, G8
- hex, 1 inch NF, grade 8
2шт.
33
425-1516
JAM NUT,Jam, 1"-14, G5
- hex, jam, 1 inch NF
2шт.
34
D148885
CHAIN (CE)
CHAIN - leaf, 115 links, outer frame
2шт.
35
D82894
ANCHOR
BOLT - special, chain mounting eye, inner frame
4шт.
36
D82895
PIN
- connecting, inner frame
4шт.
37
D148881
CHAIN (AG)
CHAIN - leaf, 61 links, inner frame
2шт.
38
D82886
NUT
- hex, special, 3/4 inch NF, inner frame eyebolt
4шт.
39
425-1512
JAM NUT,Jam, 3/4"-10, G5
- hex, jam, 3/4 inch NF
4шт.
Выбрано товаров: 47
