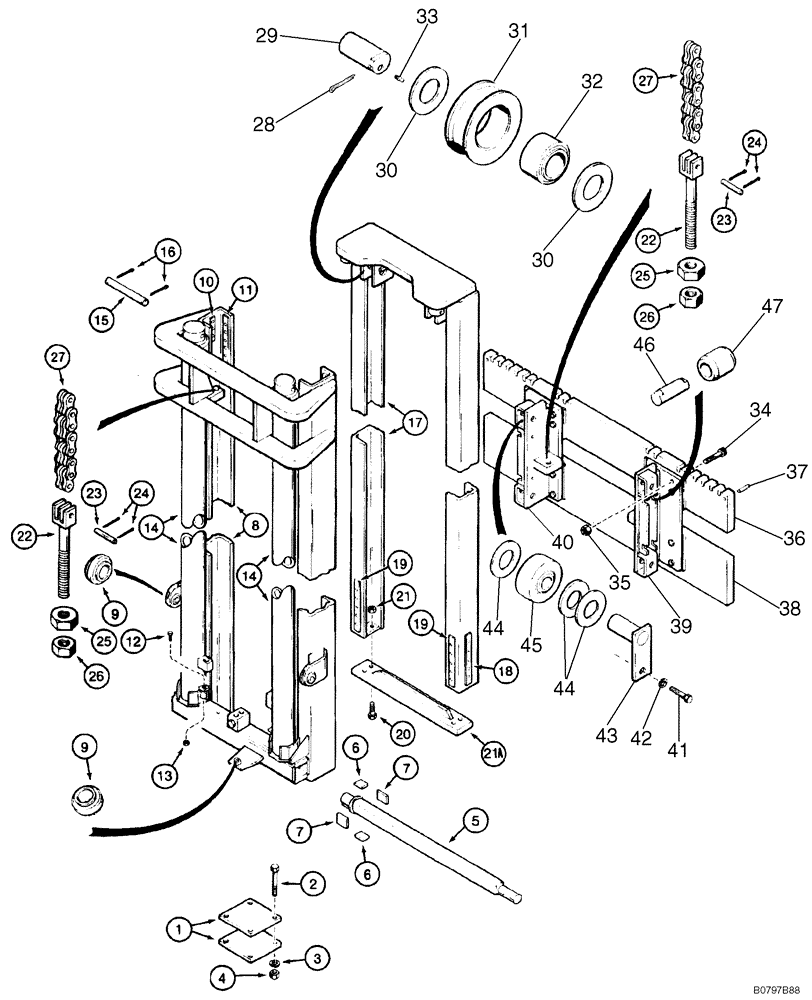

Запчасти Case 586E (9-054) - 4.3 M (14-1/4 FOOT) MAST FOR 585E AND 586E, MODELS WITH DUAL LIFT CYL., W/O 31 DEGREE FWD MAST TILT (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
D141853
MAST ASSEMBLY
- forklift, 4.3 m (14-1/4 foot), Includes: Ref. 28 - 47 and Ref. 1 - 27 on Figure 9-52
1шт.
28
432-1240
COTTER PIN,3/16" x 2 1/2"
3/16" x 2 1/2"
2шт.
29
N7698
PIN,44.44mm OD x 79.37mm L
- pivot, sheave
2шт.
30
D36582
WASHER
- thrust, sheave
4шт.
31
230001A1
SHEAVE
- chain guide (Replaces sheave D82891)
2шт.
32
D82893
ROLLER BEARING,44.45mm ID x 76.2mm OD x 44.7mm W
BEARING - roller, 45 (1-3/4) x 76 (3) x 45 mm (1-3/4 inch) wide
2шт.
33
219-17
LUBE NIPPLE,3/16" NPTF
FITTING - grease, straight, 3/16 drive type x 17/32"
2шт.
34
461-35036
HEX SOC SCREW,1/2"-13 x 2 1/4"
BOLT - hex socket, 1/2 NC x 2-1/4 inch
16шт.
35
425-148
JAM NUT,Jam, 1/2"-13, G5
- hex, jam, 1/2 inch NC
16шт.
36
D142719
PLATE
- backing, upper, carriage
1шт.
37
38-32832
PIN,7/16" x 2", Coiled
2шт.
38
D142726
PLATE
- backing, lower, carriage
1шт.
39
D142727
SUPPORT ASSY.
CARRIAGE - mast, right-hand, mast, Serial Range: -72488
1шт.
39
D145805
SUPPORT ASSY.
CARRIAGE - mast, right-hand, mast, Start Serial: 72488
1шт.
40
D142728
SUPPORT ASSY.
CARRIAGE - mast, left-hand, mast, Serial Range: -72488
1шт.
40
D145806
SUPPORT ASSY.
CARRIAGE - mast, left-hand, mast, Start Serial: 72488
1шт.
41
413-816
BOLT,Hex, 1/2" - 13 x 1", Gr 5
4шт.
42
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
4шт.
43
D86605
AXLE
PIN - roller (Replaces pin D52297), Includes: Ref. 43A
4шт.
43a
211-1006
BALL,3/16" Dia
- chrome alloy steel, 3/16 inch, grade 24, if used, not shown
1шт.
44
D52298
WASHER,32.16mm ID x 69.85mm OD x 2.77mm Thk
- thrust, 32 (1-1/4) x 70 (2-3/4) x 2.8 mm (7/64 inch) thick
12шт.
45
D52299
BEARING, ROLLER,31.75mm ID x 76.2mm OD x 32mm W
BEARING - carriage roller
4шт.
46
D36589
PIN,25.4mm OD x 69.85mm L
- side roller, carriage
4шт.
47
D36590
ROLLER
BEARING - side roller, carriage
4шт.
Выбрано товаров: 24
