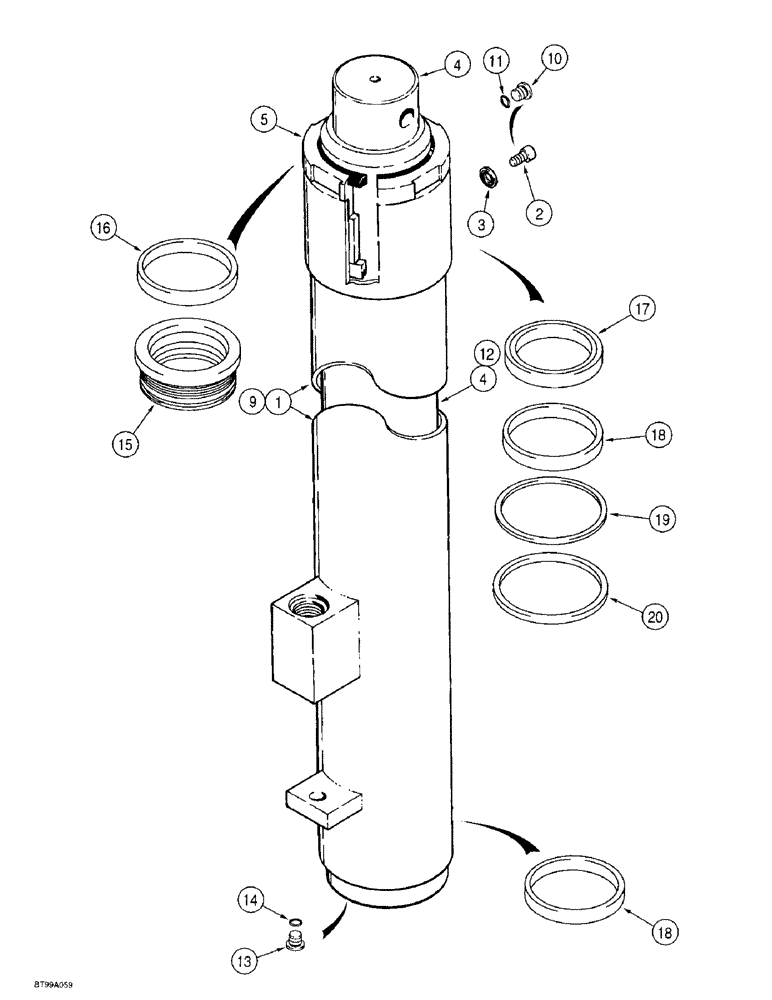

Запчасти Case 586E (8-36) - MAST LIFT CYLINDER, MODELS WITH DUAL LIFT CYLINDER MAST, WITH OR WITHOUT 31 DEGREE FORWARD MAST TILT (08) - HYDRAULICS

D142725

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 76 (3) ID x 1816 mm (71-1/2 inch) stroke, used on models with 3.6 m (12 foot) mast, no longer available, order 315008A1, Includes: Ref. 1 - 8

2шт.

D142412

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 76 (3) x 2159 mm (85 inch) stroke, used on models with 4.3 m (14-1/4 foot) or 6.5 m (21-1/2 foor) mast, no longer available, order 281112A1, Includes: Ref. 1 - 8

1шт.

D142695

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 76 (3) ID x 2834 mm (111-9/16 inch) stroke, used on models with 8.5 m (28 foot) mast, no longer available, order 315009A1, Includes: Ref. 1 - 8

2шт.

1

NSS

NOT SOLD SEPARAT

TUBE - cylinder, order cylinder assembly

1шт.

2

61-3256

HEX SOC SCREW,1/4"-20 x 3/8"

SCREW, Hex Soc Hd, 1/4"-20 x 3/8"

1шт.

3

D24252

WASHER

- special (Replaces washer D142442)

1шт.

4

NSS

NOT SOLD SEPARAT

PISTON - cylinder, order cylinder assembly

1шт.

5

D142443

NUT

- cylinder packing

1шт.

6

D142509

RING

SLEEVE - packing, upper

1шт.

D142441

PACKAGE

KIT - cylinder packing, Includes: Ref. 7 and 8

1шт.

7

NSS

NOT SOLD SEPARAT

WIPER - piston, order kit D142441

1шт.

8

NSS

NOT SOLD SEPARAT

RING - packing, order kit D142441

1шт.

315008A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 76 (3) ID x 1816 mm (71-1/2 inch) stroke, used on models with 3.6 m (12 foot) mast, Includes: Ref. 9 - 20

2шт.

281112A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 76 (3) ID x 2159 mm (85 inch) stroke, used on models with 4.3 m (14-1/4 foot) or 6.5 m (21-1/2 foot) mast, Includes: Ref. 9 - 20

2шт.

315009A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - lift, 60 (2-3/8) ID x 2832 mm (111-1/2 inch) stroke, used on models with 8.5 m (28 foot) mast, Includes: Ref. 9 - 20

2шт.

9

315006A1

BARREL,3.25" ID, 90" Length

TUBE - cylinder, used with 315008A1 cylinder

1шт.

9

284304A1

BARREL,4.5" OD, 93.5" Length

TUBE - cylinder, used with 281112A1 cylinder

1шт.

9

315010A1

BARREL

TUBE - cylinder, used with 315009A1 cylinder

1шт.

10

86529630

PLUG,Hex Soc, 3/8"-24 ORB

Includes Ref. 11 Hex Soc, 3/8"-24 ORB

1шт.

11

237-6003

O-RING,0.064" Thk x 0.301" ID, -903, Cl 6, 90 Duro

3-1, .301" ID x .064" Thk

1шт.

12

315007A1

PISTON ASSY.

PISTON ASSEMBLY - cylinder, used with 315008A1 cylinder

1шт.

12

284305A1

ROD ASSY.

PISTON ASSEMBLY - cylinder, used with 281112A1 cylinder

1шт.

12

315011A1

PISTON ASSY.

PISTON ASSEMBLY - cylinder, used with 315009A1 cylinder

1шт.

13

278548

PLUG,Hex, 7/16"-20 ORB

Internal, piston, Incl Ref 14 Hex Soc, 7/16"-20 ORB

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

15

284301A1

NUT

- cylinder packing

1шт.

284302A1

KIT

- cylinder packing, Includes: Ref. 16 - 20

1шт.

16

NSS

NOT SOLD SEPARAT

RING - wiper, piston, order kit 284302A1

1шт.

17

NSS

NOT SOLD SEPARAT

SLEEVE - piston, order kit 284302A1

1шт.

18

NSS

NOT SOLD SEPARAT

RING - wear, order kit 284302A1

2шт.

19

NSS

NOT SOLD SEPARAT

RING - backup, order kit 284302A1

1шт.

20

NSS

NOT SOLD SEPARAT

O-RING - packing nut, order kit 284302A1

1шт.
