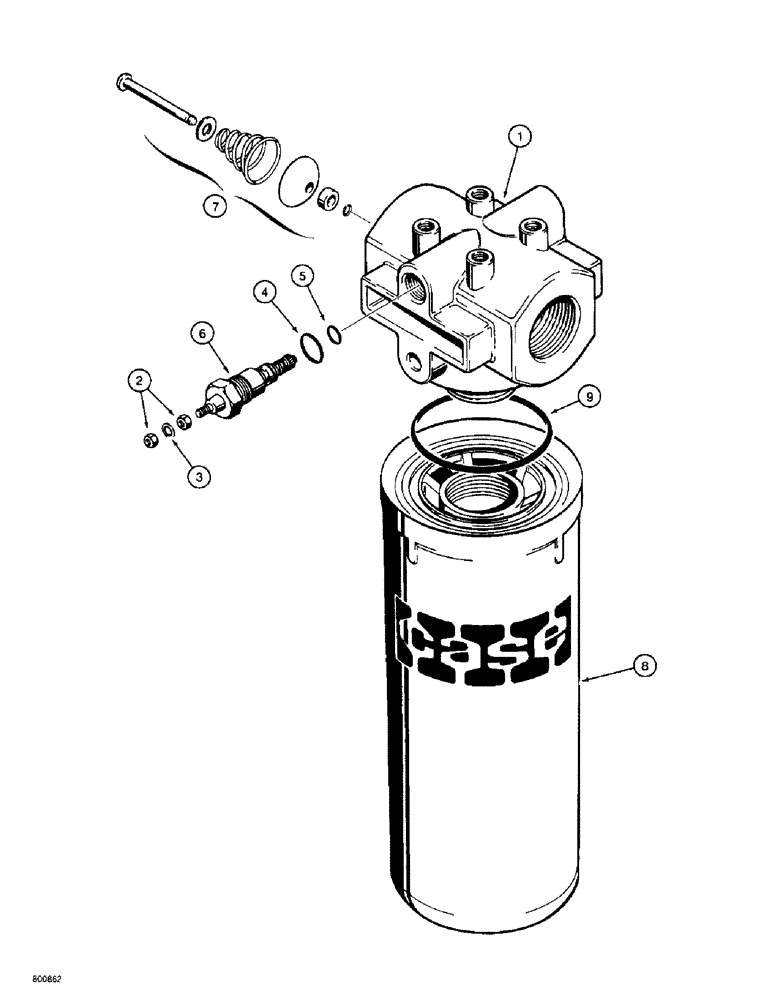

Запчасти Case 586E (8-32) - HYDRAULIC OIL FILTER ASSEMBLY (08) - HYDRAULICS

D131293

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - filter, order filter assembly D131293

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction, electric, if used, Includes: Ref. 2 - 6

1шт.

N6941

KIT

- restriction indicator repair, no longer available as a kit, order components, Includes: Ref. 2 - 5

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, (3/16") Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, electric, order indicator assembly N6755

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass, order filter assembly D131293

1шт.

D93246

ELEMENT ASSEMBLY - filter, no longer available, order element 1346028C1 below, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter, order element assembly D94236

1шт.

9

238-5230

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

to head -230, 70 Duro, 2.484" ID x .139" Thk

1шт.

10

1346028C1

HYDRAULIC OIL FILTER

ELEMENT - filter, spin-on, not shown

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
