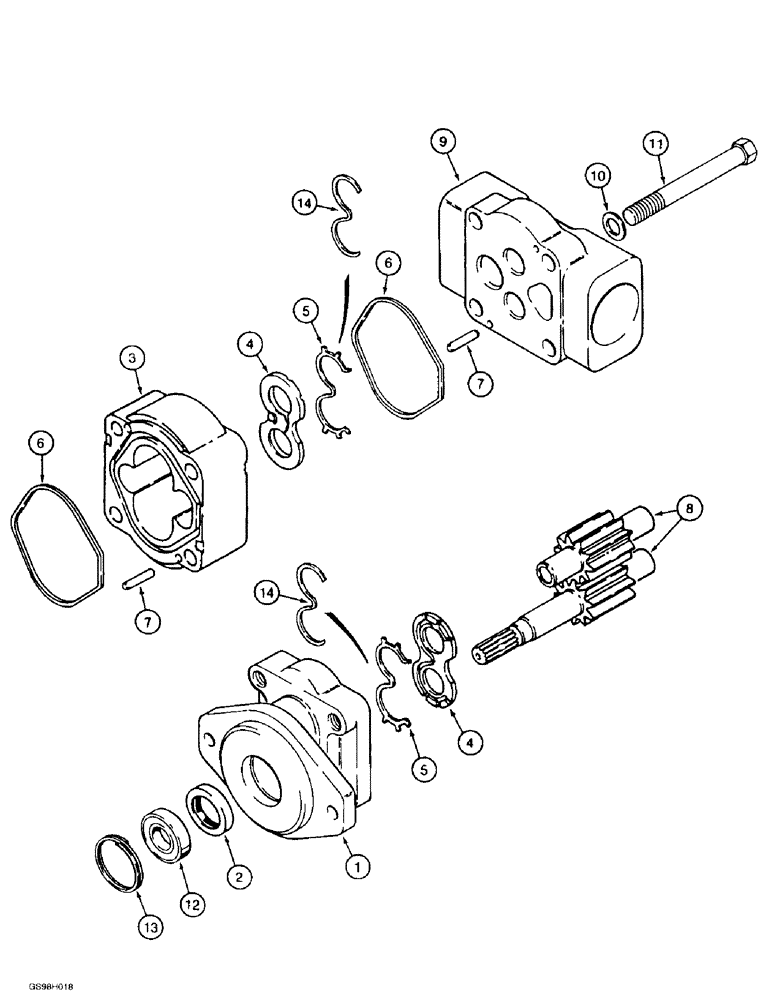

Запчасти Case 586E (8-25A) - HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

102480A1

PUMP

ASSEMBLY - hydraulic equipment, Includes: Ref. 1 - 14

1шт.

102480A1R

REMAN-HYD PUMP

584E, 585E, 586E, All (5/90-)

1шт.

102480A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - shaft end, includes a bushing which is not serviced separately, order pump assembly 102480A1

1шт.

2

L32418

SEAL,26.99mm ID x 42.93mm OD x 7.92mm Thk

- shaft

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - gear, shaft end, order pump assembly 102480A1

1шт.

4

144172A1

PLATE

- thrust

2шт.

5

144173A1

SEAL

- channel, pump

2шт.

6

L32100

SEAL,Square, 3.17mm Thk x 101.6mm ID, 70 Duro

- gear housing

2шт.

7

W16323

DOWEL

PIN - dowel

4шт.

8

NSS

NOT SOLD SEPARAT

SHAFT - with gear, set

1шт.

9

NSS

NOT SOLD SEPARAT

COVER - port end

1шт.

10

19-488

WASHER

- flat

4шт.

11

326-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 8

4шт.

12

18-970

BALL BEARING

BEARING - ball

1шт.

13

71466

SNAP RING,#206, 2.190", Int, Spiral

RING - retaining, spring lock

1шт.

14

178051A1

BACK-UP RING

SEAL - backup, channel

2шт.
