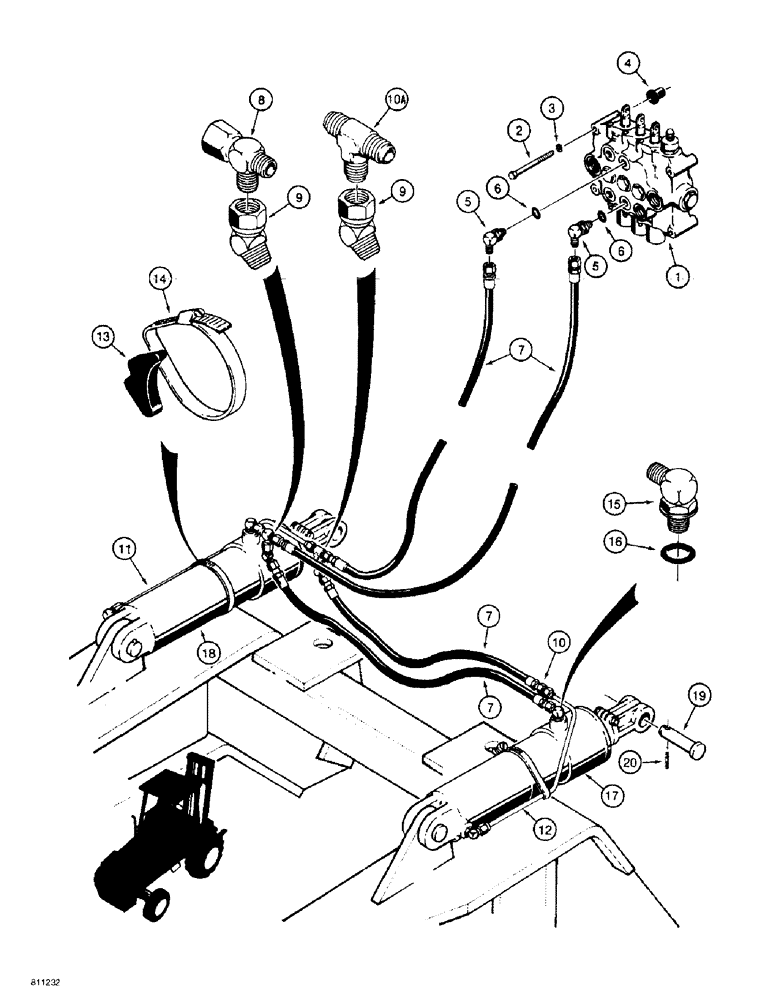

Запчасти Case 586E (8-18) - MAST TILT CYLINDER HYDRAULIC CIRCUIT, MODELS WITH SINGLE OR DUAL LIFT CYLINDERS (08) - HYDRAULICS

1

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, forklift, parts list Figure 8-28 and 8-30

1шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch

3шт.

3

492-11038

LOCK WASHER,3/8"

3шт.

4

D75755

ISOLATOR

INSULATOR - rubber, valve mounting

3шт.

5

D69179

ELBOW

- 90 degree, .125 inch restriction, used on all models except models with 8.5 m (28 foot) mast, Includes: Ref. 6

2шт.

5

D80997

ELBOW

- 90 degree, .078 inch restriction, used on models with 8.5 m (28 foot) mast only, Includes: Ref. 6

2шт.

7

D69101

HOSE

- 762 mm (30 inch) long

4шт.

8

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

- swivel, 9/16-18 inch flare branch x flare x swivel

1шт.

9

218-5172

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Female JIC

- 45 degree, 9/16-18 inch flare x swivel, adjustable

2шт.

10

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR - straight, 9/16-18 inch flare, male

1шт.

10a

218-593

TEE,9/16"-18, 37 Degree

- 9/16-18 inch flare branch x flare x flare

1шт.

11

D69087

TUBE

- used on models with single cylinder mast, no longer available, order tube D142140 below

1шт.

11

D142140

TUBE

- used on models with dual cylinder mast

1шт.

12

D69089

TUBE

- used on models with single cylinder mast, no longer available, order tube D142138 below

1шт.

12

D142138

TUBE

- used on models with dual cylinder mast

1шт.

13

D38648

BLOCK

SPACER - rubber, tube clamp

2шт.

14

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj., to cylinder #64, 3.56/4.50 Type F Worm

2шт.

15

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 9/16-18 flare x 3/4-16 inch adj O-ring boss, Incl. Ref. 16

4шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

17

REF

INSTRUCTION

CYLINDER ASSEMBLY - 76 (3) ID x 254 mm (10 inch) stroke, right-hand, see Figure 8-42 for correct assembly

1шт.

18

REF

INSTRUCTION

CYLINDER - 76 (3) ID x 254 mm (10 inch) stroke, left-hand, see Figure 8-42 for correct assembly

1шт.

19

D36819

PIN,30.23mm OD x 111.25mm L

- clevis

4шт.

20

38-31632

PIN,1/4" x 2", Coiled

4шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
