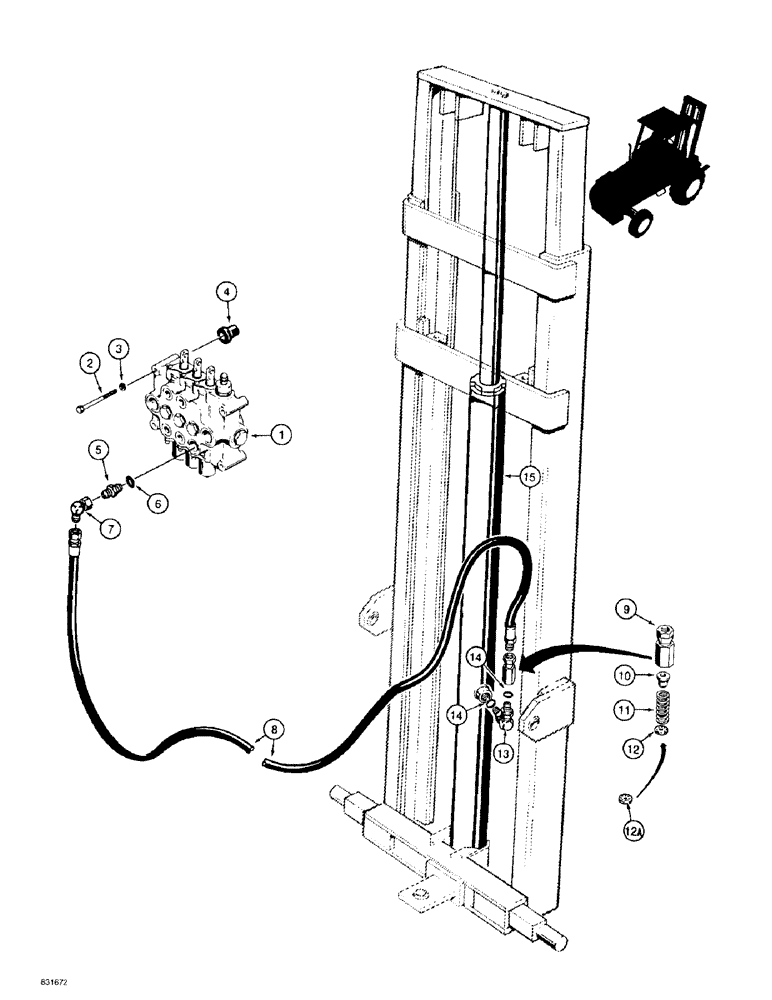

Запчасти Case 586E (8-10) - MAST LIFT CYLINDER HYDRAULIC CIRCUIT, MODELS WITH SINGLE LIFT CYLINDER (08) - HYDRAULICS

1

D124427

VALVE, CHECK

VALVE ASSEMBLY - control, forklift, parts list Figure 8-28 and 8-30

1шт.

2

413-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

- hex, 3/8 NC x 3-1/2 inch, plated

3шт.

3

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

4

D75755

ISOLATOR

INSULATOR - rubber, valve mounting

3шт.

5

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 6 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree, 3/4-16 inch flare x swivel, adjustable

1шт.

8

R17579

HOSE ASSY.

HOSE - 1016 mm (40 inch) long

1шт.

D48875

VALVE

RESTRICTOR - lift cylinder hydraulic circuit, all masts except 6.5 m (21-1/2 foot) mast for 585D and 586D, Includes: Ref. 9 - 12

1шт.

D122897

RESTRICTOR

- lift cylinder hydraulic circuit, 6.5 m (21-1/2 foot) mast for 585D and 586D, Includes: Ref. 9 - 12

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - restrictor, order restrictor assembly

1шт.

10

D48876

SPACER

- restrictor

1шт.

11

D48877

SPRING

- restrictor

1шт.

12

D48878

WASHER

- restrictor

1шт.

12

N8401

WASHER

- special, D122897 restrictor only

1шт.

13

D48874

ELBOW

- 90 degree, special, adjustable, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, for correct assembly and components see Figure 8-34

1шт.
