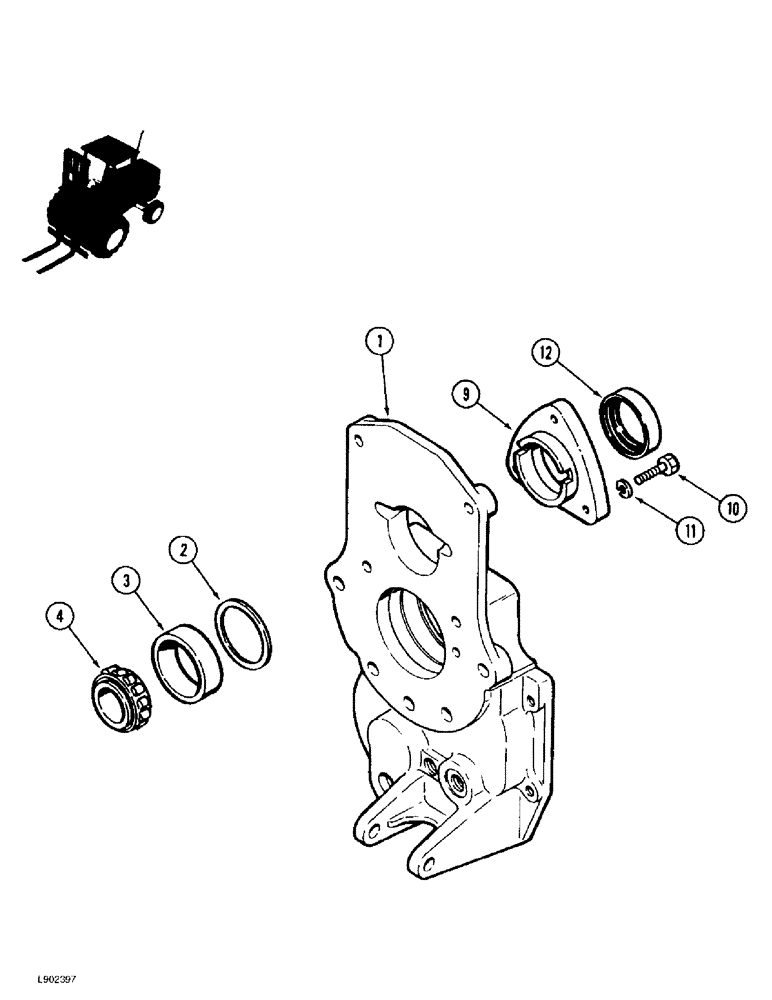

Запчасти Case 586E (6-76) - TRANSAXLE MAIN SHAFT ADJUSTING COVER, 4 WHEEL DRIVE (06) - POWER TRAIN

1

REF

INSTRUCTION

HOUSING - transfer gearbox, see Figure 6-74

1шт.

2

G10341

SHIM,.005" Thk

Main shaft bearing, front .005" Thk

1шт.

2

G10340

SHIM,.007" Thk

Mainshaft bearing, Front .007" Thk

1шт.

2

A51527

SHIM,.035" Thk

Main shaft front bearing .035" Thk

1шт.

3

290100C1

BEARING CUP,73.05mm OD x 17.78mm W

CUP - tapered roller bearing, 2-7/8 inch OD, front (Replaces cup H753574)

1шт.

4

290099C9

CONE - tapered roller bearing, main shaft, front (Replaces bearing H753566)

1шт.

9

A156606

BEARING COVER,2.624" ID x 0.69"

COVER - main shaft bearing, adjusting

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

11

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

12

A154253

OIL SEAL

- oil, main shaft

1шт.
